Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

If you are replacing the center section of the console duct, perform the following procedure:
1. 1.1. Install the center console duct to the console.
2. 1.2. Install the center console duct screws.
  Tighten

  Tighten the screws to 1.5 N.m (13 lb in).
3. 1.3. Install the center console. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT -- FRONT FLOOR (RENDEZVOUS) .
Important: Align the rear power supply harness away from the center mounting stud of the rear duct.

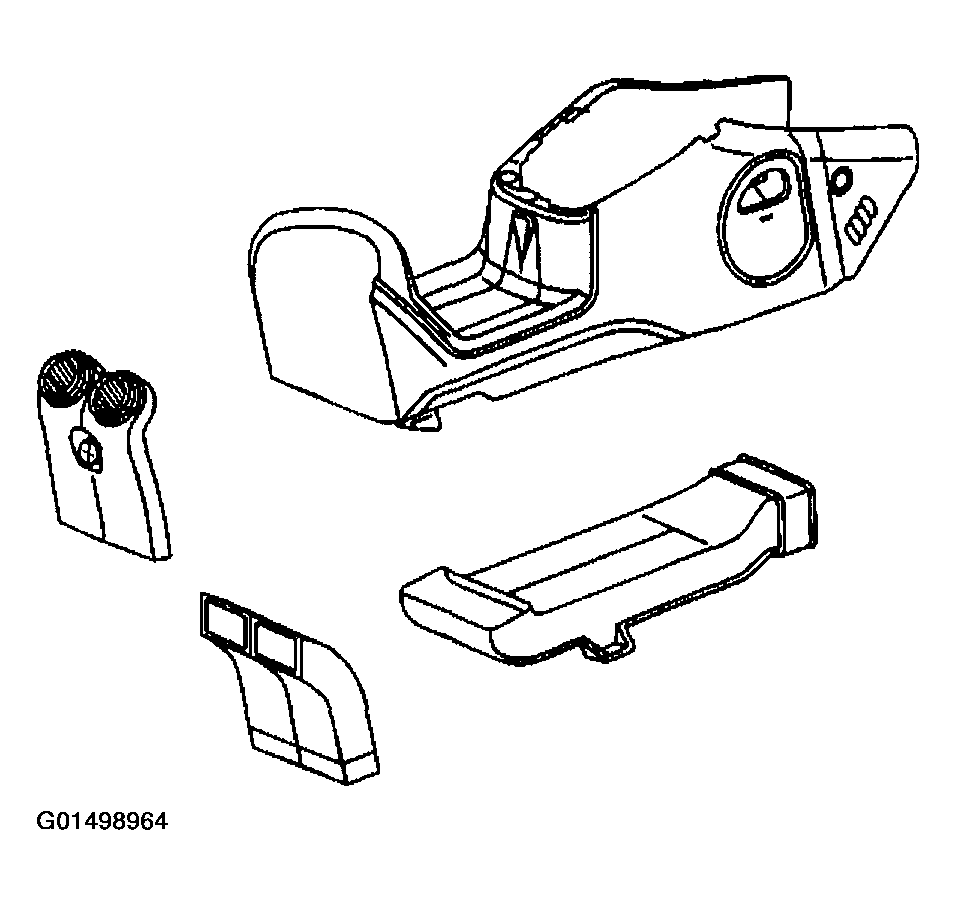

Fig 1: Installing Center Console Duct To Console.
Courtesy of GENERAL MOTORS CORP.
Install the rear duct to the console.
Install the rear duct screws.
Tighten

Tighten the screws to 1.5 N.m (13 lb in).
Connect the rear power supply electrical connector.
Install the rear section of the console trim panel.
