Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heater outlet duct.
  2. Install the heater outlet duct screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  3. Install the center floor air outlet. Refer to AIR OUTLET REPLACEMENT - CENTER FLOOR  .
  4. Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) .
  5. Install the left I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  6. Install the right I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .

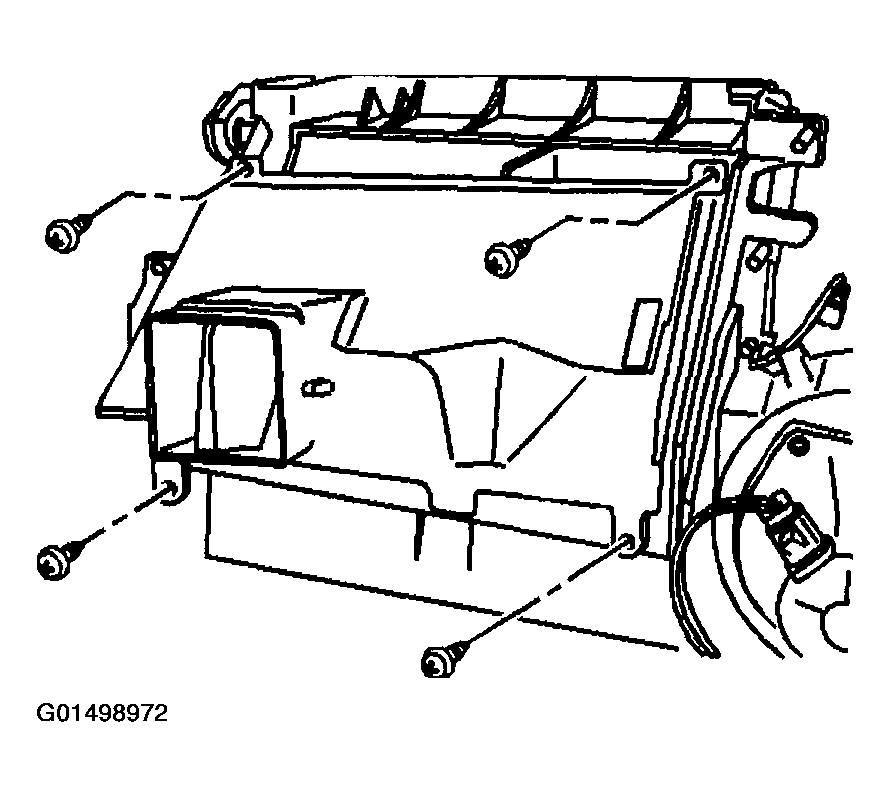

    Fig 1: Installing Air Outlet Floor
    G01498972Courtesy of GENERAL MOTORS CORP.
