Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Open the endgate.
Remove the push-in retainers from the inside rear edge of the rear quarter panel molding.

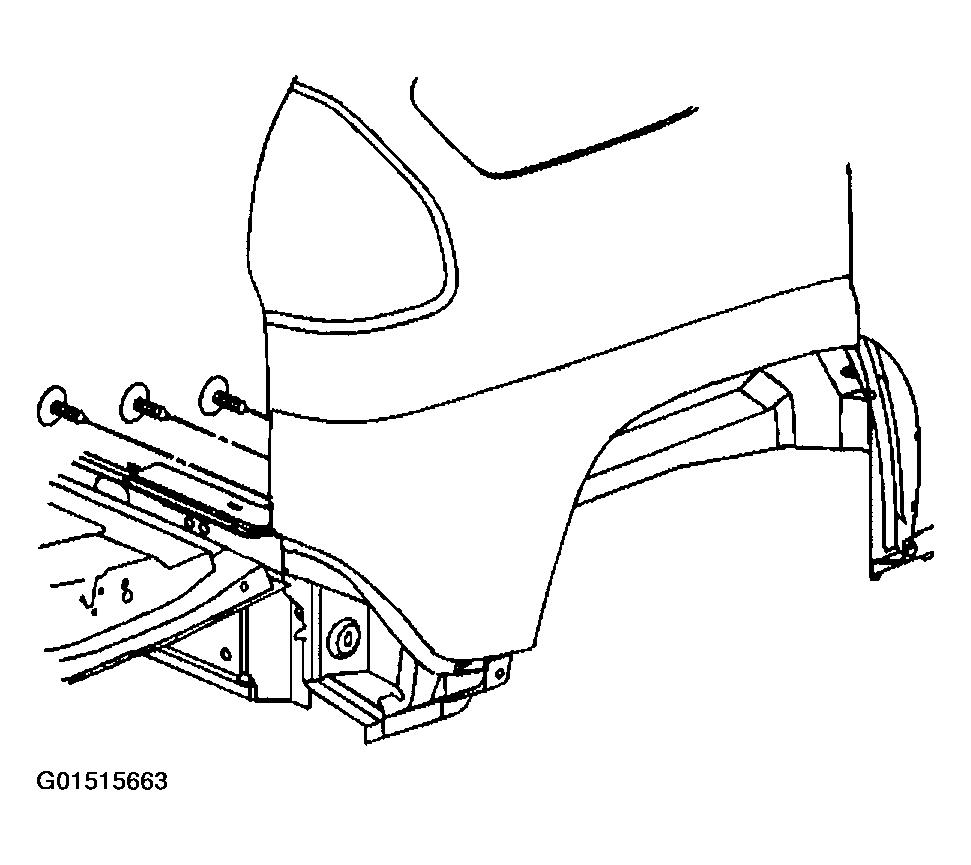

Fig 1: Removing Push-In Retainers From Inside Rear Edge Of Rear Quarter Panel Molding
Courtesy of GENERAL MOTORS CORP.
Use a heat gun J 25070.

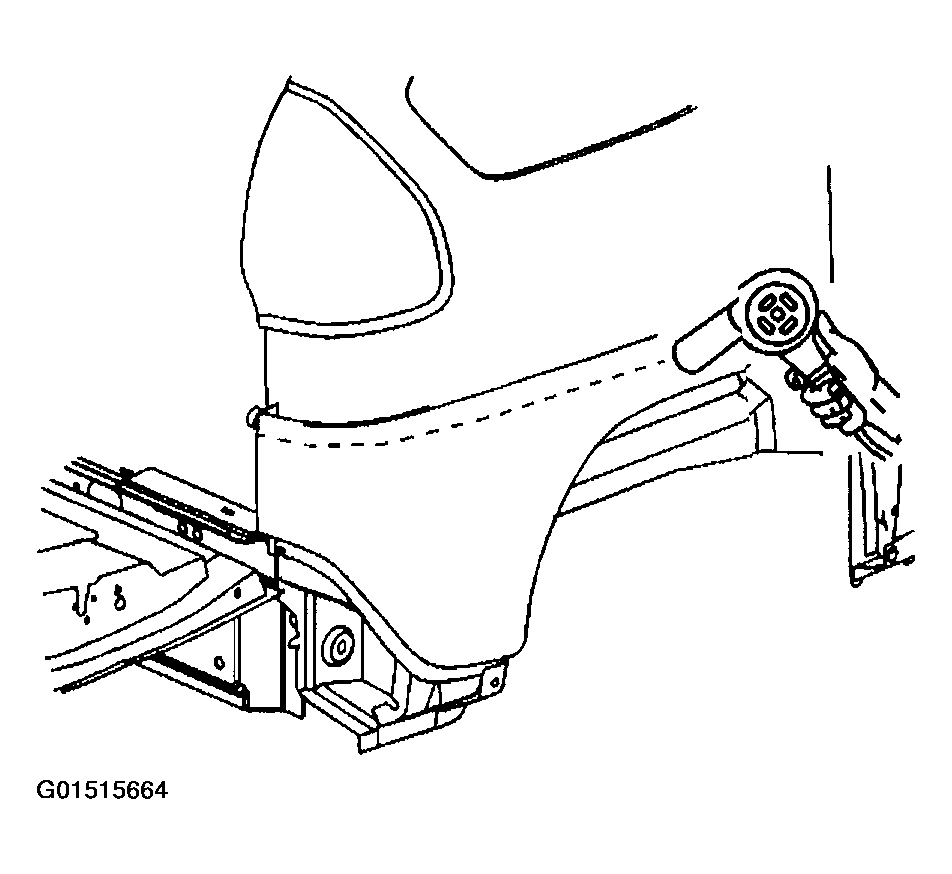

Fig 2: Heating Molding
Courtesy of GENERAL MOTORS CORP.
Use a plastic, flat-bladed tool to remove the upper edge of the rear quarter panel molding from the surface.

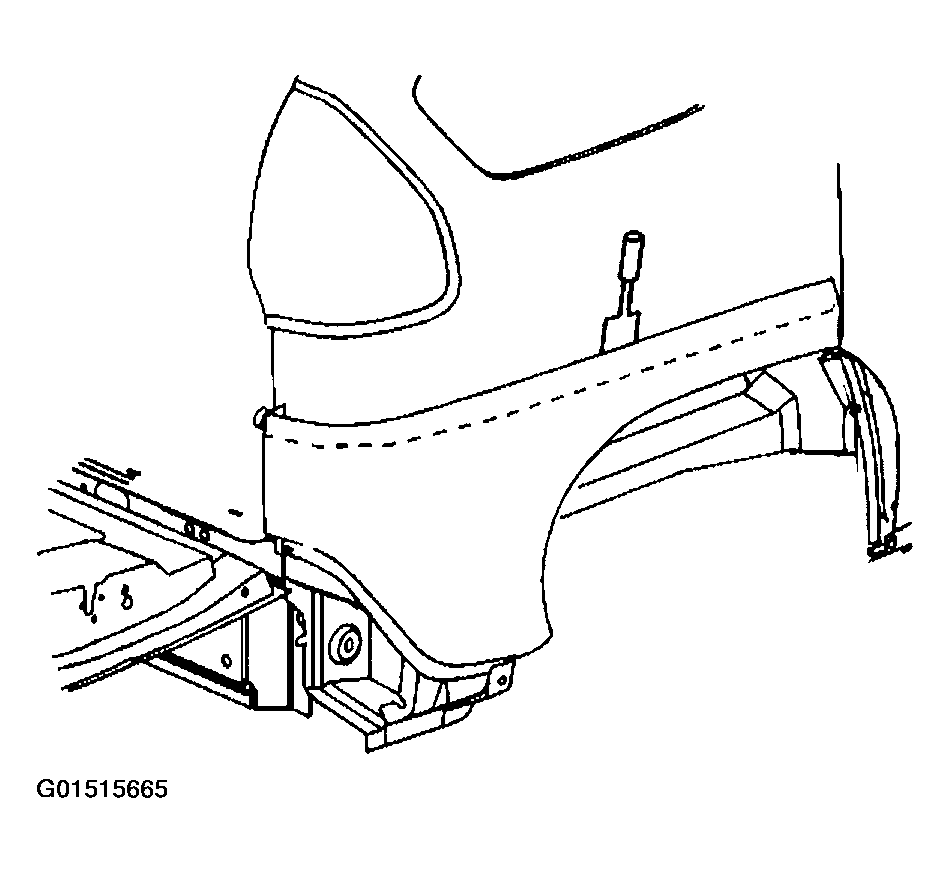

Fig 3: Removing Upper Edge Of Rear Quarter Panel Molding
Courtesy of GENERAL MOTORS CORP.
Pull the upper edge of the rear quarter panel molding out, to release the retainers.
Remove the rear quarter panel molding from the door.

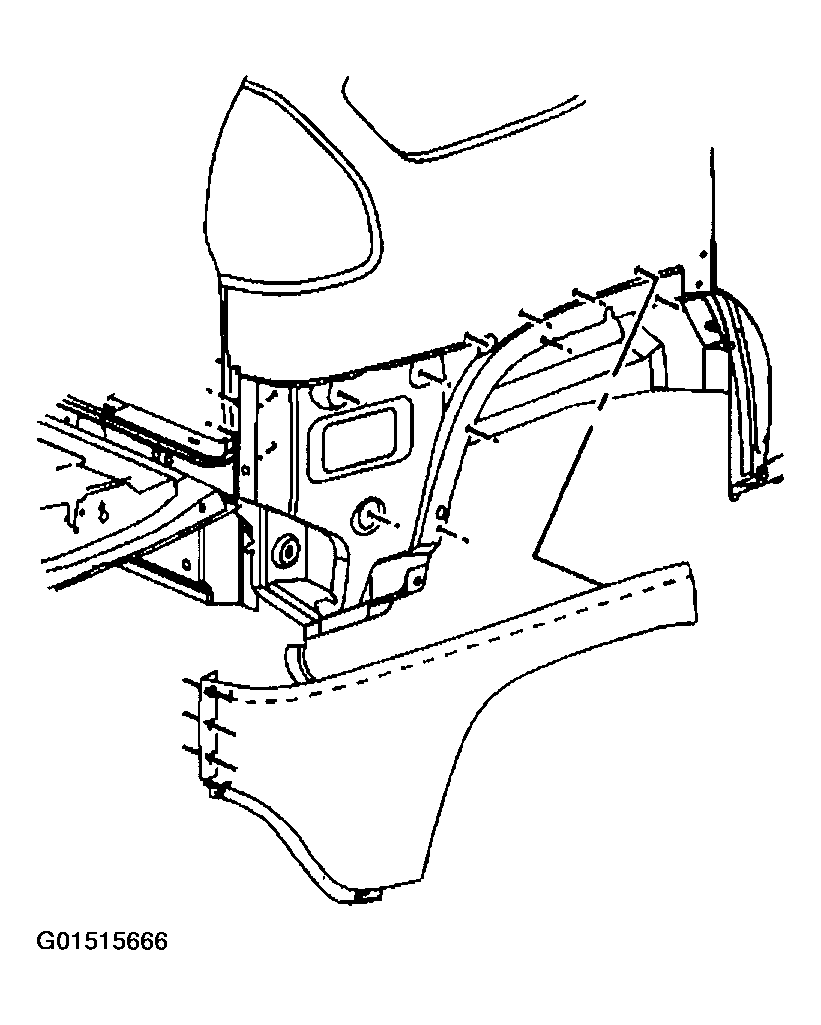

Fig 4: Removing Rear Quarter Panel Molding
Courtesy of GENERAL MOTORS CORP.
Remove the push-in retainer nuts from the D-pillar, if required.

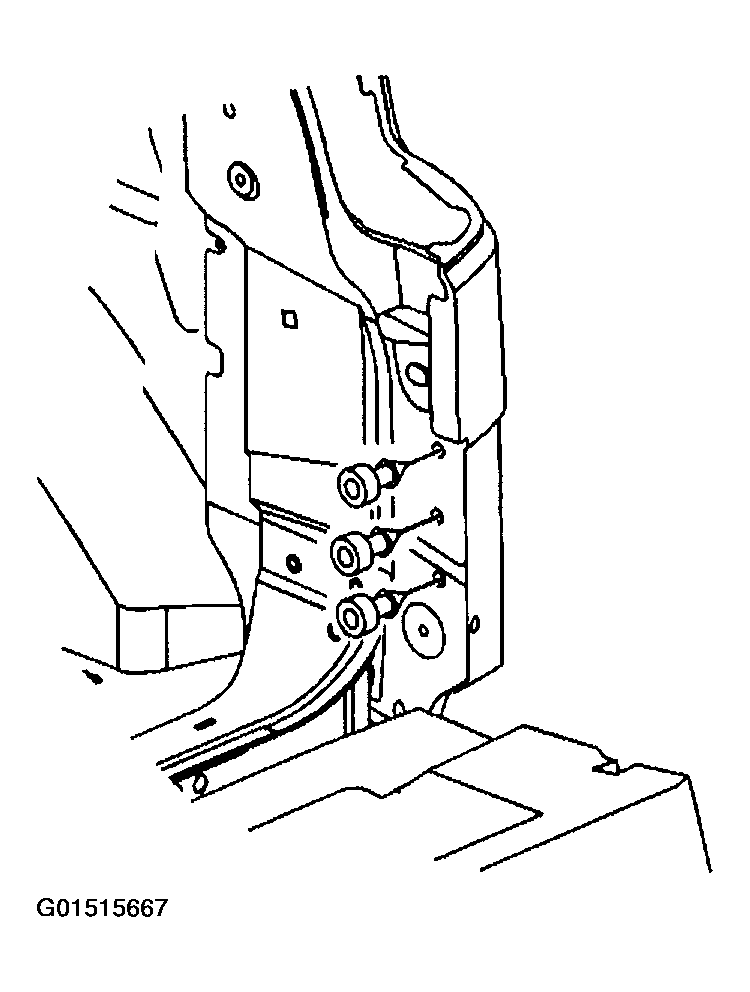

Fig 5: Removing Push-In Retainer Nuts From D-Pillar
Courtesy of GENERAL MOTORS CORP.
Remove all adhesive from the rear door body panel using 3M™: Scotch Brite molding adhesive remover disk 3m™ (P/N 07501 or equivalent).
Clean the rear door panel surface using Varnish Makers and Painters (VMP) naphtha and allow to air dry.

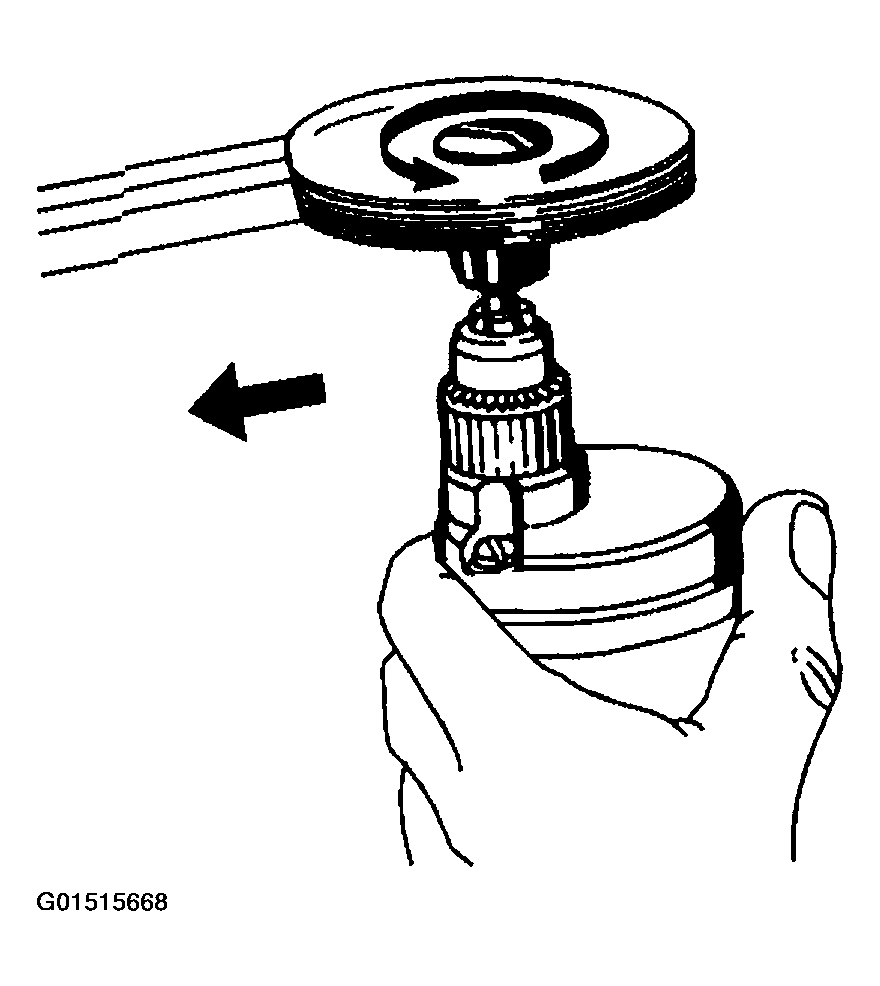

Fig 6: Removing Adhesive From Rear Door Body Panel
Courtesy of GENERAL MOTORS CORP.
