Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lower support retainer with the notch down and the retainers to the holes in the door panel.
    Fig 1: Positioning Lower Support Retainer With Notch Down And Retainers
    G01515653Courtesy of GENERAL MOTORS CORP.
  2. Install in the center pins of the retainers using a small hammer.
    Fig 2: Installing In Center Pins Of Retainers
    G01515654Courtesy of GENERAL MOTORS CORP.
  3. Position the lower edge of the molding to the lower door retainer.
  4. Align the door molding retainers to the holes in the door.
  5. Press the molding to the door until the retainers are fully seated.
  6. Close the rear door.

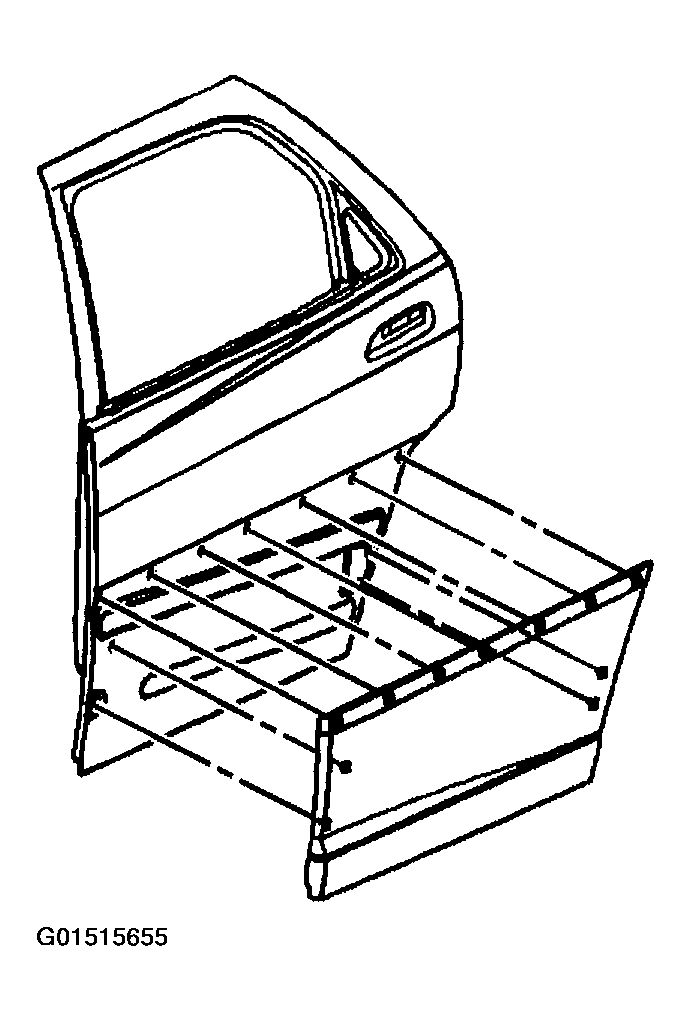

    Fig 3: Installing Rear Door Body Side Molding
    G01515655Courtesy of GENERAL MOTORS CORP.
