Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the front wheel opening molding.

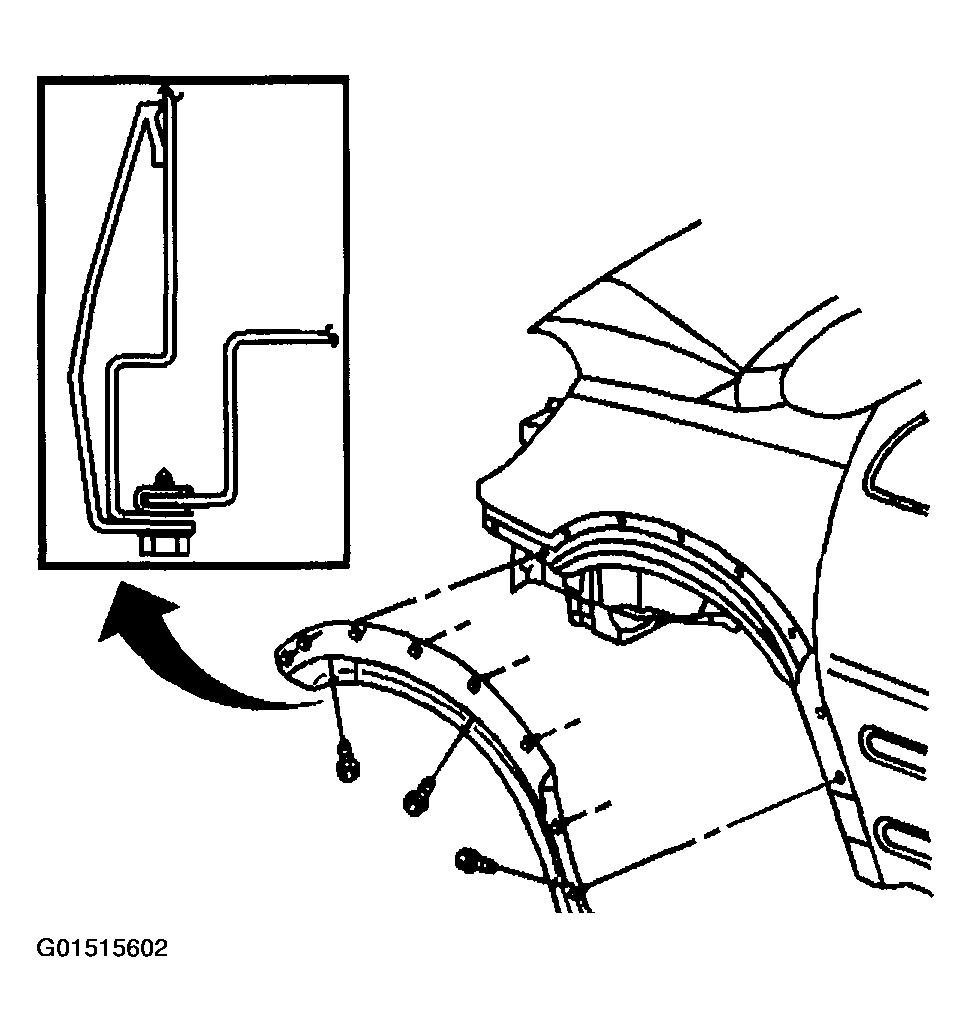

    Fig 1: Removing Screws From Front Wheel Opening Molding
    G01515602Courtesy of GENERAL MOTORS CORP.
  2. Remove the screws from the front corner of the fascia.
  3. Pull outward on the corner of the front fascia to access the front wheel opening molding retainer.
    Fig 2: Pulling Outward Corner Of Front Fascia
    G01515603Courtesy of GENERAL MOTORS CORP.
  4. A thin, plastic flat-bladed tool may be used between the fender and molding to help release the retainers.

    Remove the front wheel opening molding from the fender.

    Fig 3: Removing Front Wheel Opening Molding From Fender
    G01515604Courtesy of GENERAL MOTORS CORP.
  5. Remove the wheel opening molding retainers from the molding, if necessary.
    Fig 4: Removing Wheel Opening Molding Retainers
    G01515605Courtesy of GENERAL MOTORS CORP.
