Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

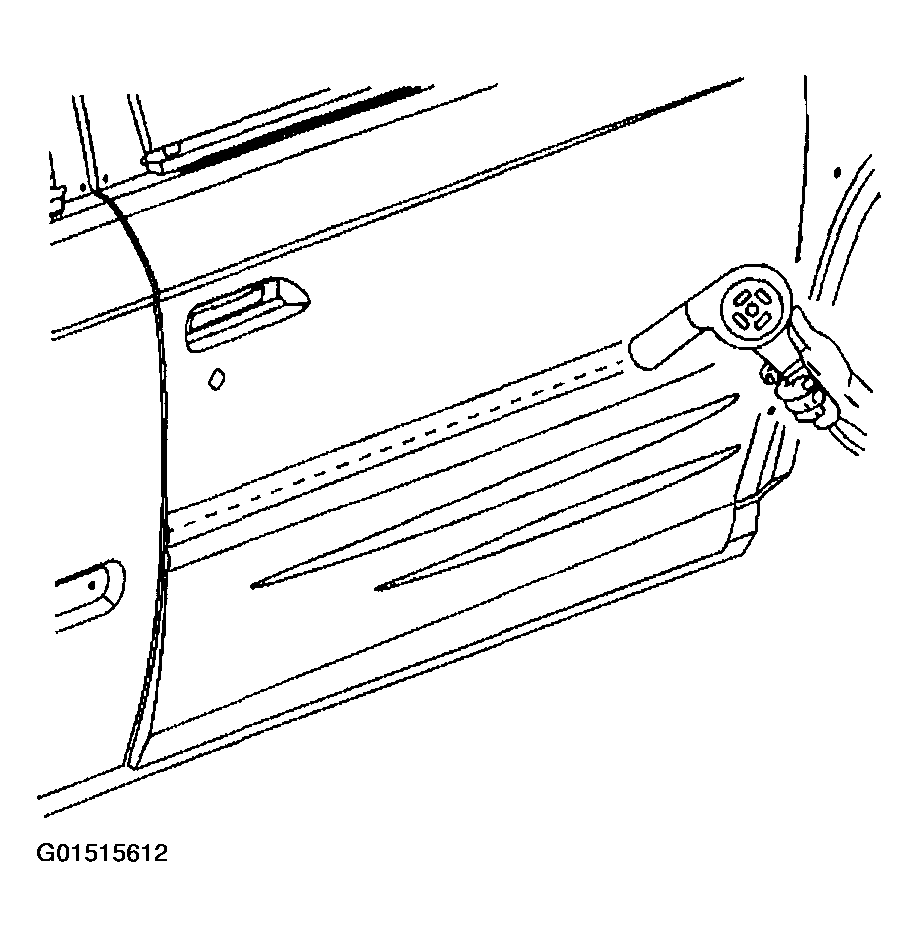

Use a heat gun J 25070.

Fig 1: Heating Door Molding
Courtesy of GENERAL MOTORS CORP.

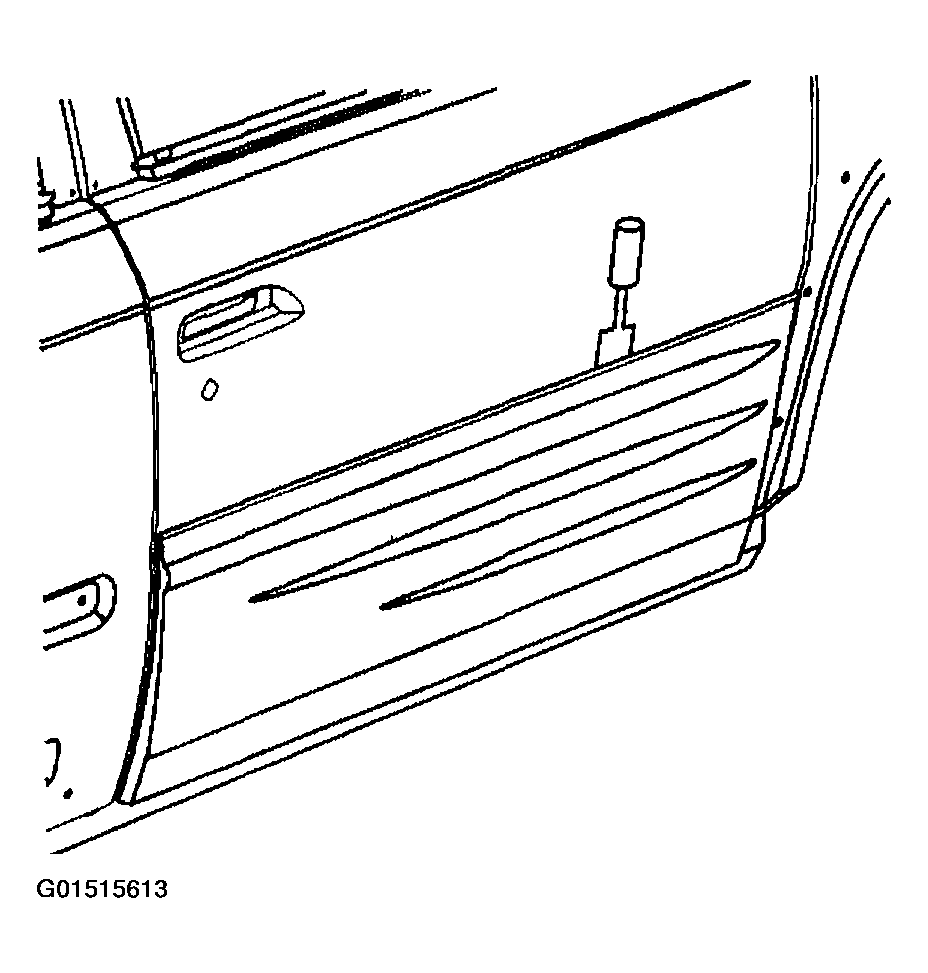

Use a plastic, flat-bladed tool to remove the upper edge of the front door body side molding from the surface.

Fig 2: Removing Upper Edge Of Front Door Body Side Molding
Courtesy of GENERAL MOTORS CORP.

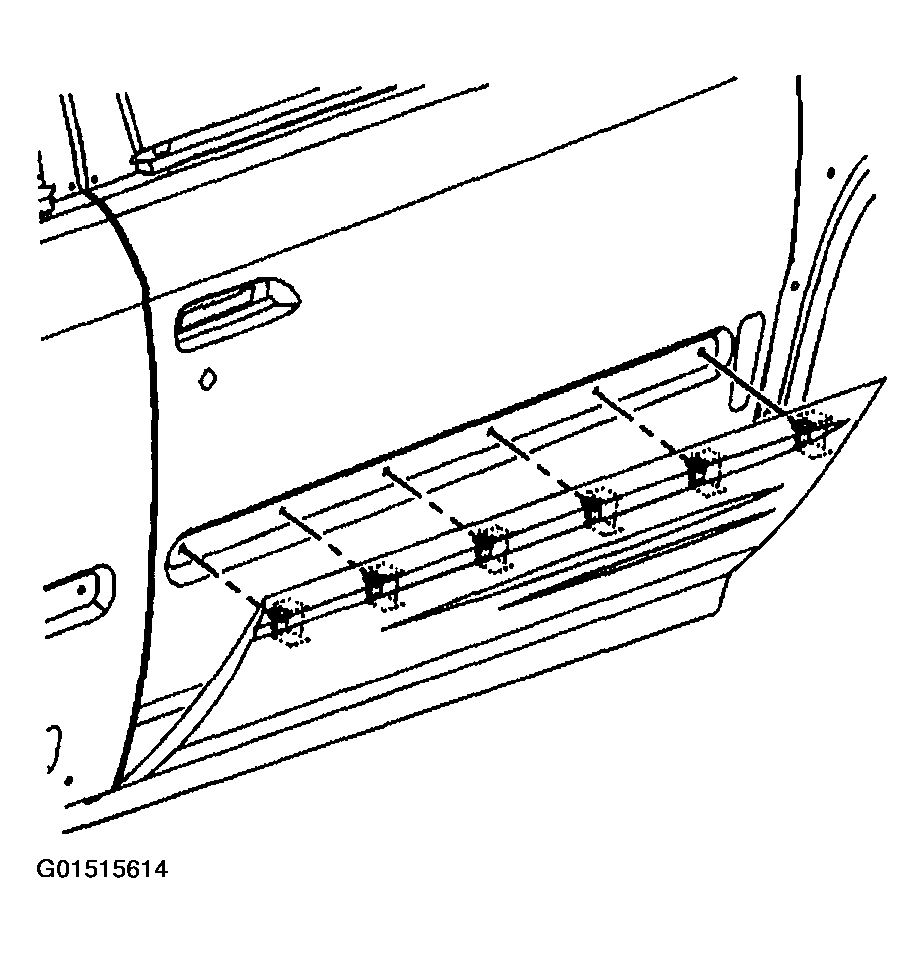

Pull the upper edge of the front door body side molding out, in order to release the retainers.
Remove the front door body side molding from the door.

Fig 3: Removing Front Door Body Side Molding
Courtesy of GENERAL MOTORS CORP.

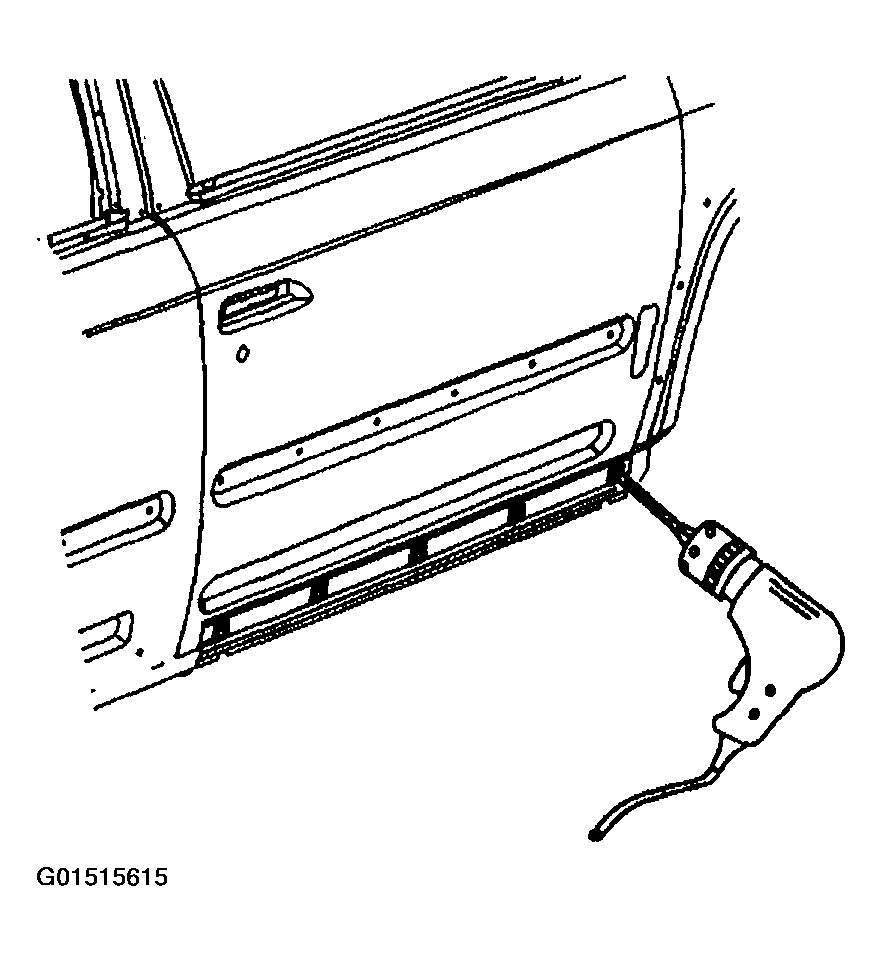

Drill a small hole into the center of the center retainer pins of the support retainer.

Fig 4: Drilling Hole Into Center Of Center Retainer Pins Of Support Retainer
Courtesy of GENERAL MOTORS CORP.

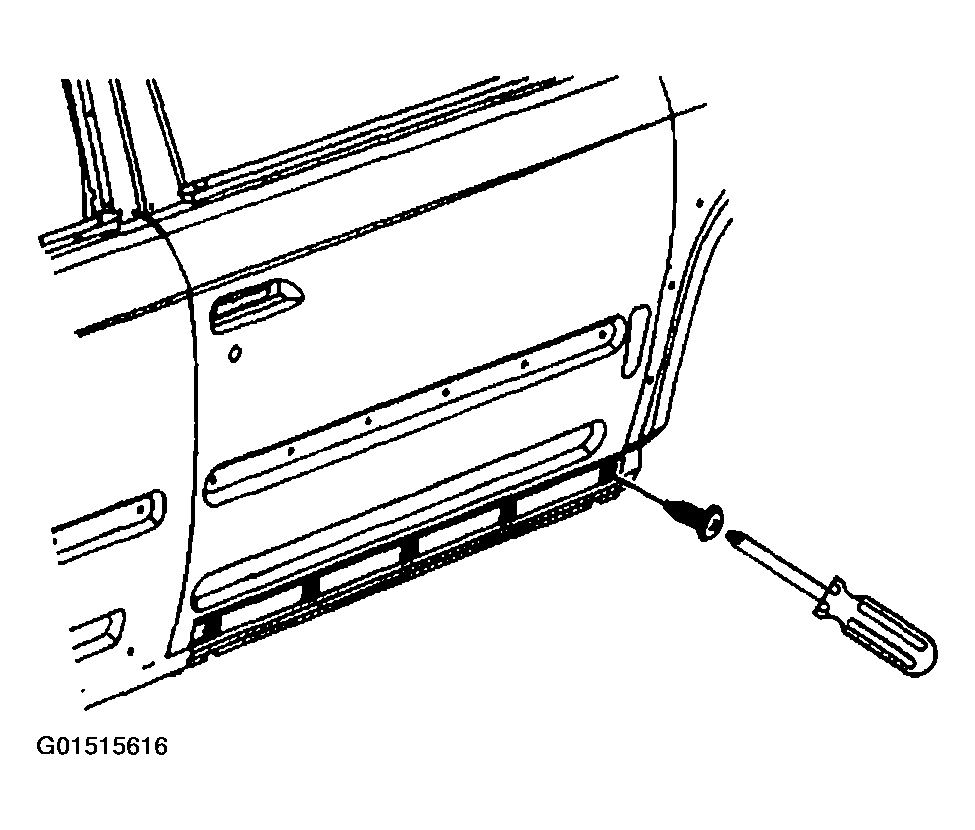

Install a small screw into the hole in the center retainer pin.

Fig 5: Installing Screw Into Hole In Center Retainer Pin
Courtesy of GENERAL MOTORS CORP.

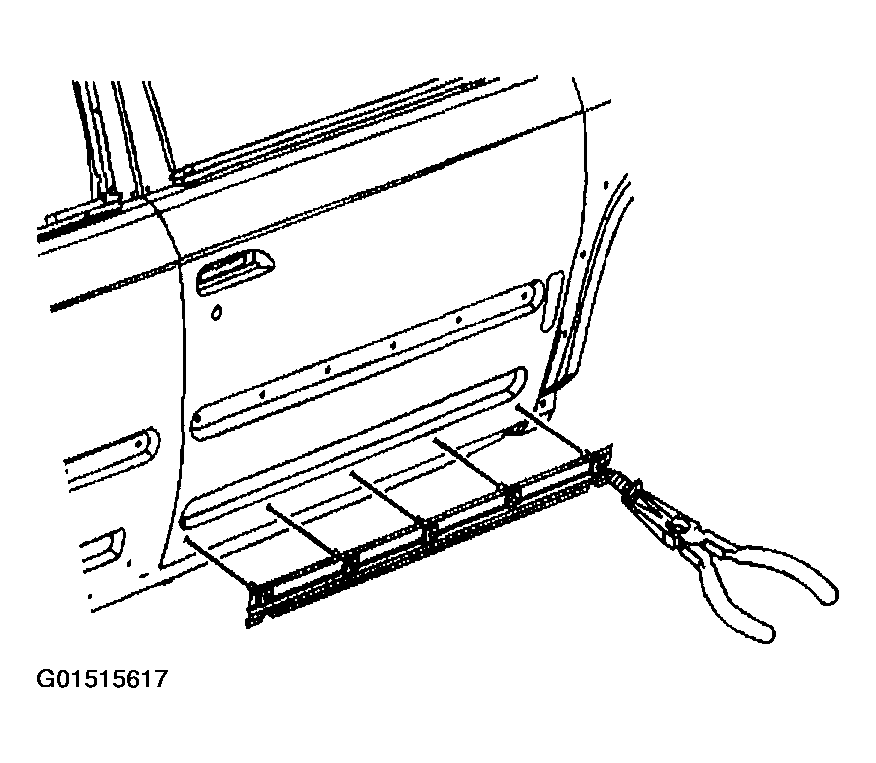

Remove the center retainer pin using small pliers and pulling out the center retainer pin.

Fig 6: Removing Center Retainer Pin
Courtesy of GENERAL MOTORS CORP.

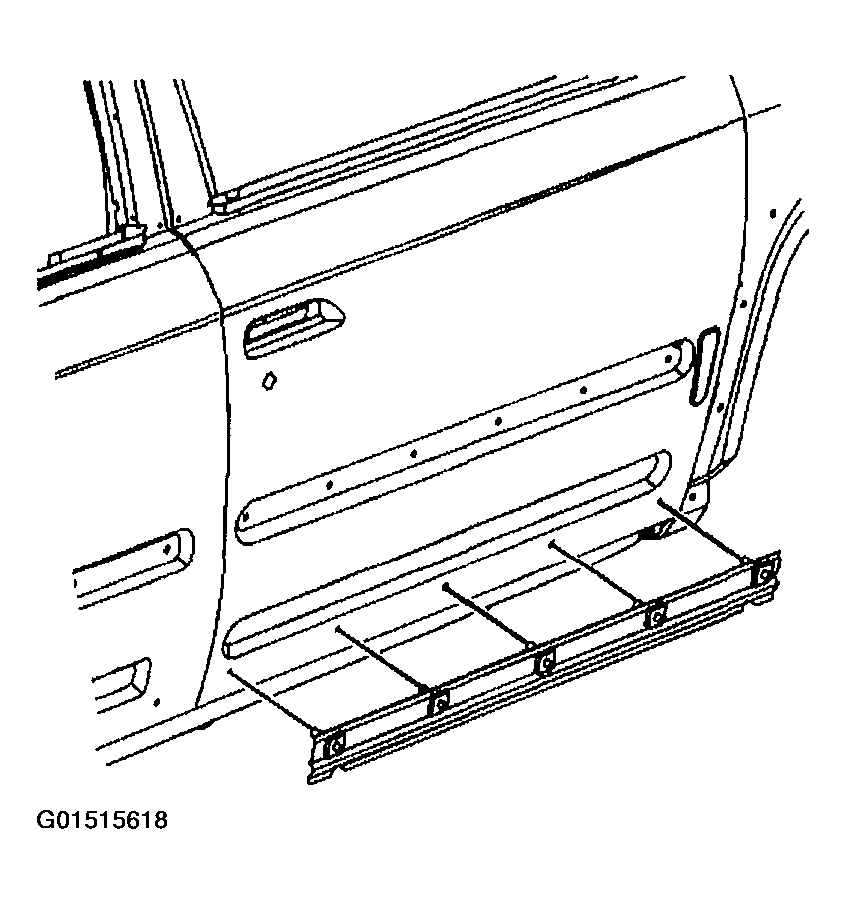

Remove the front door body side molding support from the door.

Fig 7: Removing Front Door Body Side Molding Support
Courtesy of GENERAL MOTORS CORP.
Remove all adhesive from the rear door body panel using 3M™ Scotch Brite molding adhesive remover disk 3M™ (P/N 07501 or equivalent).

Fig 8: Removing Adhesive From Rear Door Body Panel
Courtesy of GENERAL MOTORS CORP.
Clean the rear door panel surface using Varnish Makers and Painters (VMP) naphtha and allow to air dry.
