Vehicle Speed Sensors (4L80-E): Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

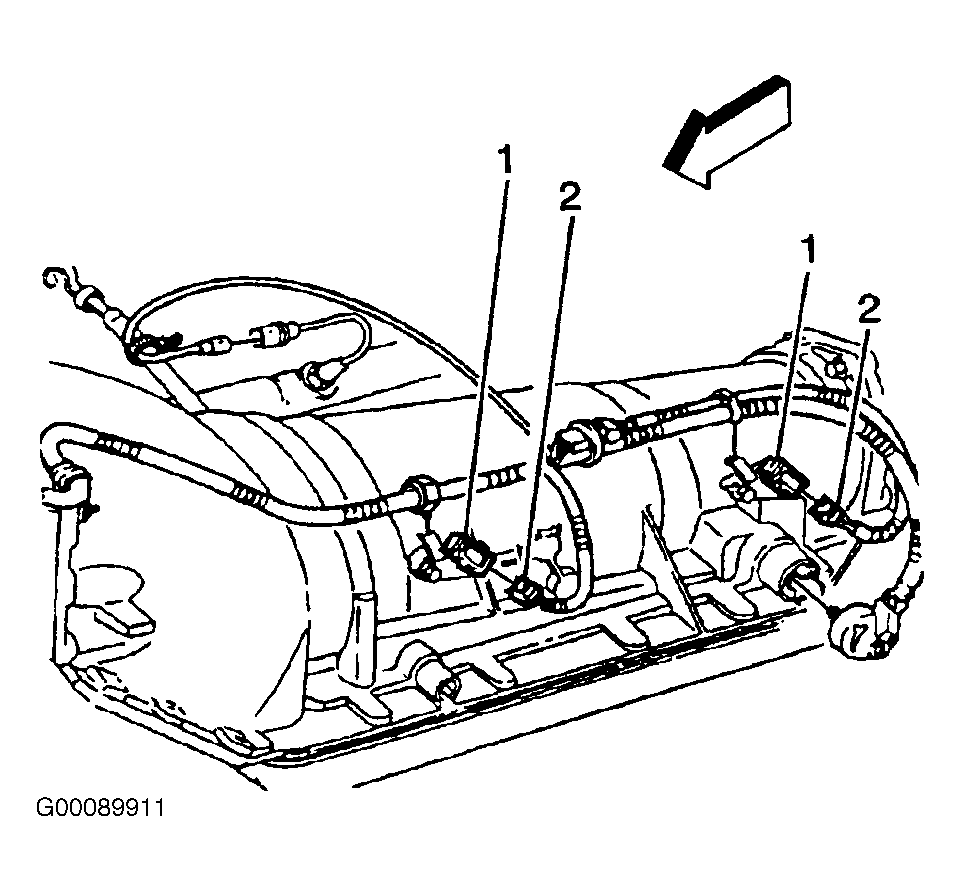

Install the vehicle speed sensors (1) and the bracket assemblies on the case. See Fig 1 . Install the bolts using an 8-mm socket and tighten the bolts to specification. See TORQUE SPECIFICATIONS . Connect the speed sensor connectors (2).
