Test Description

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

2. If the instrument panel tachometer is working properly, the cause of the malfunction is most likely between the PCM and the EBCM, or the EBCM itself.
9. At this point, the PCM is likely causing the malfunction. Refer to the OBD system check.

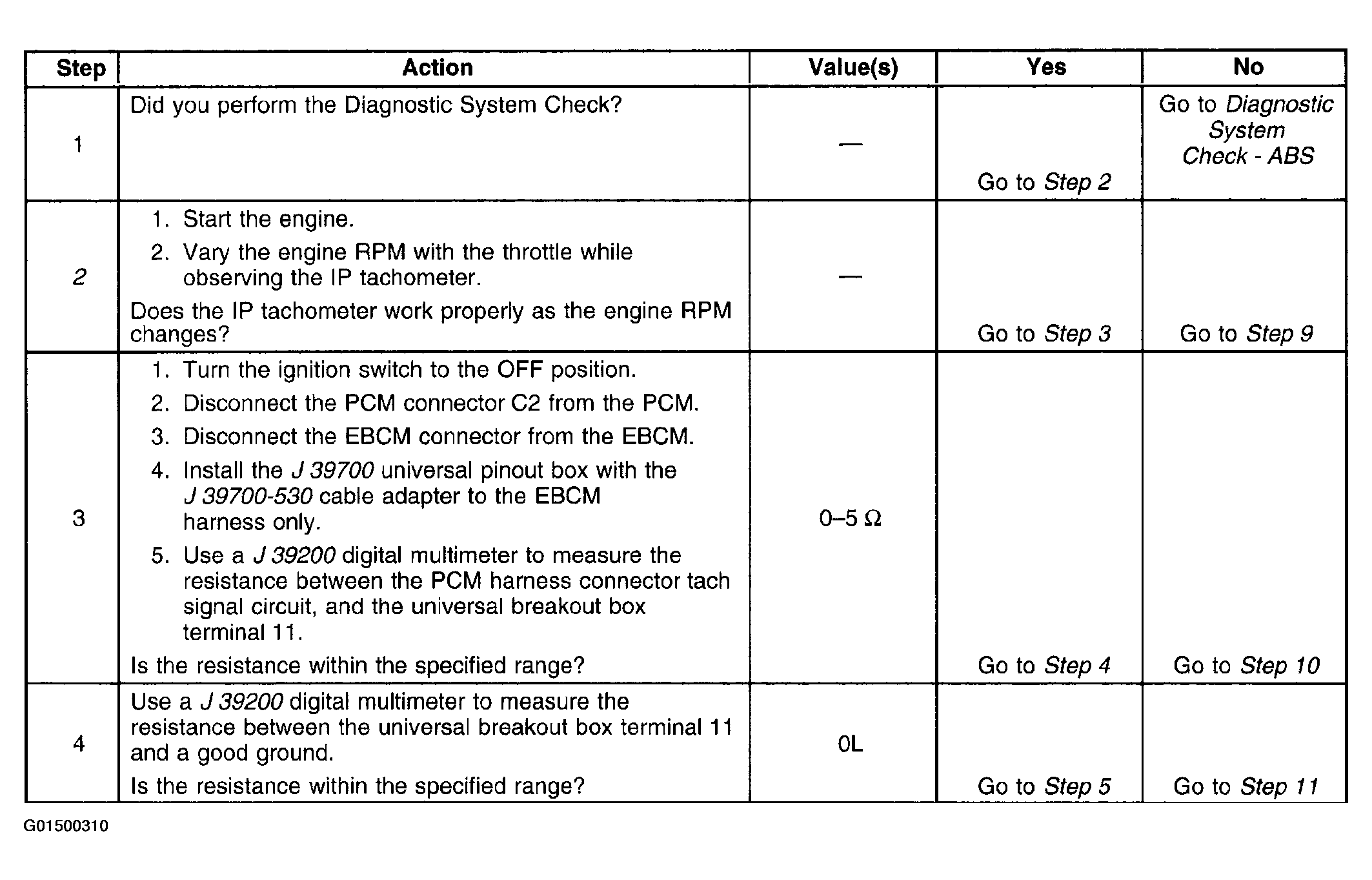

Fig 1: DTC C0236 Diagnostic Procedure (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

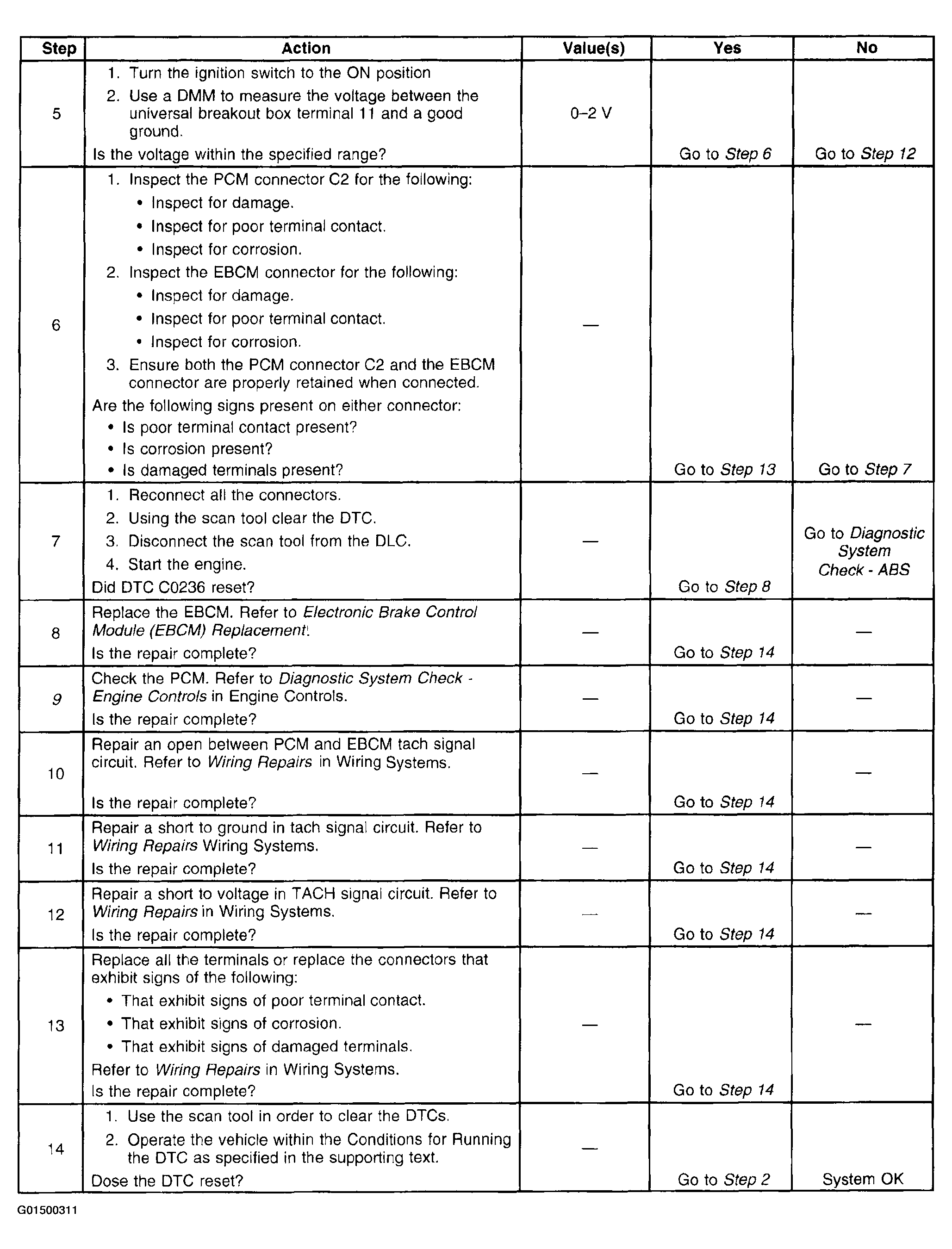

Fig 2: DTC C0236 Diagnostic Procedure (Steps 5-14)

Courtesy of GENERAL MOTORS CORP.
