Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen both cylinder line fittings on the cylinder end of the gear assembly.
  2. Loosen both fittings on the cylinder line assemblies (1) at the valve end of the gear assembly.
  3. Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

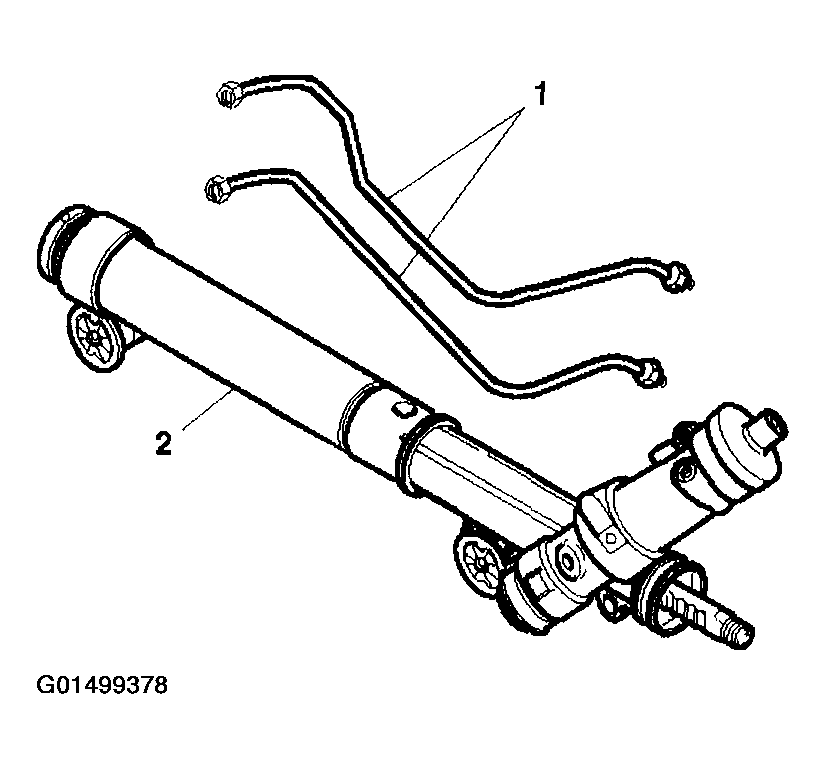

    Fig 1: Removing Cylinder Line Assemblies From Rack & Pinion Gear Assembly
    G01499378Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seals (1) from the valve end of line.
  5. Discard the O-ring seals (1).

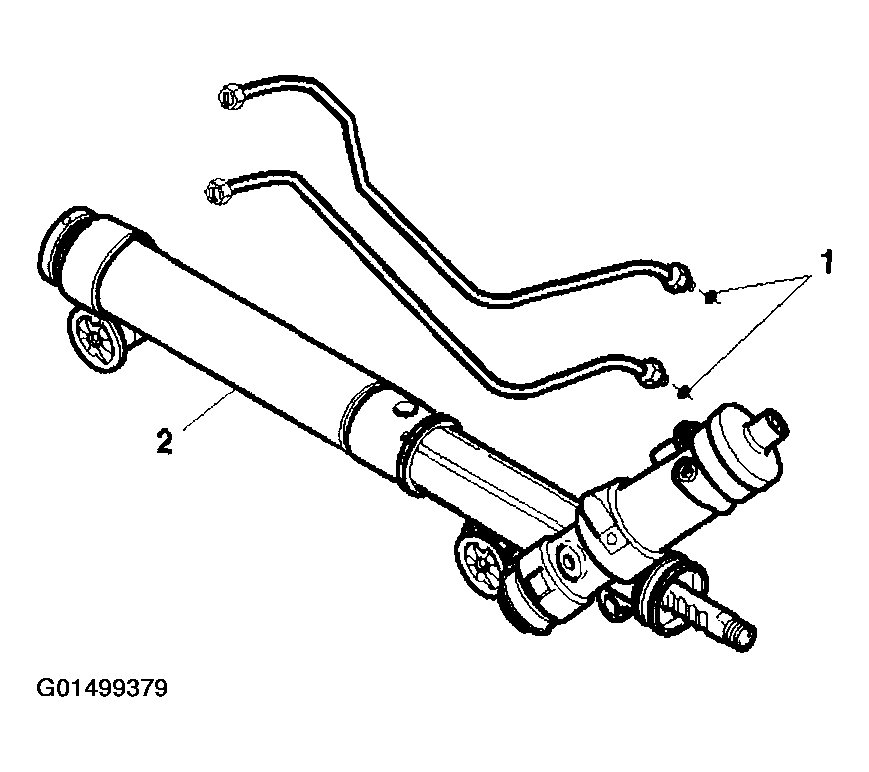

    Fig 2: Removing O-Ring Seals From Valve End Of Line
    G01499379Courtesy of GENERAL MOTORS CORP.
