Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement  .
  2. Remove the oil pan-to-rear cover bolts (1).

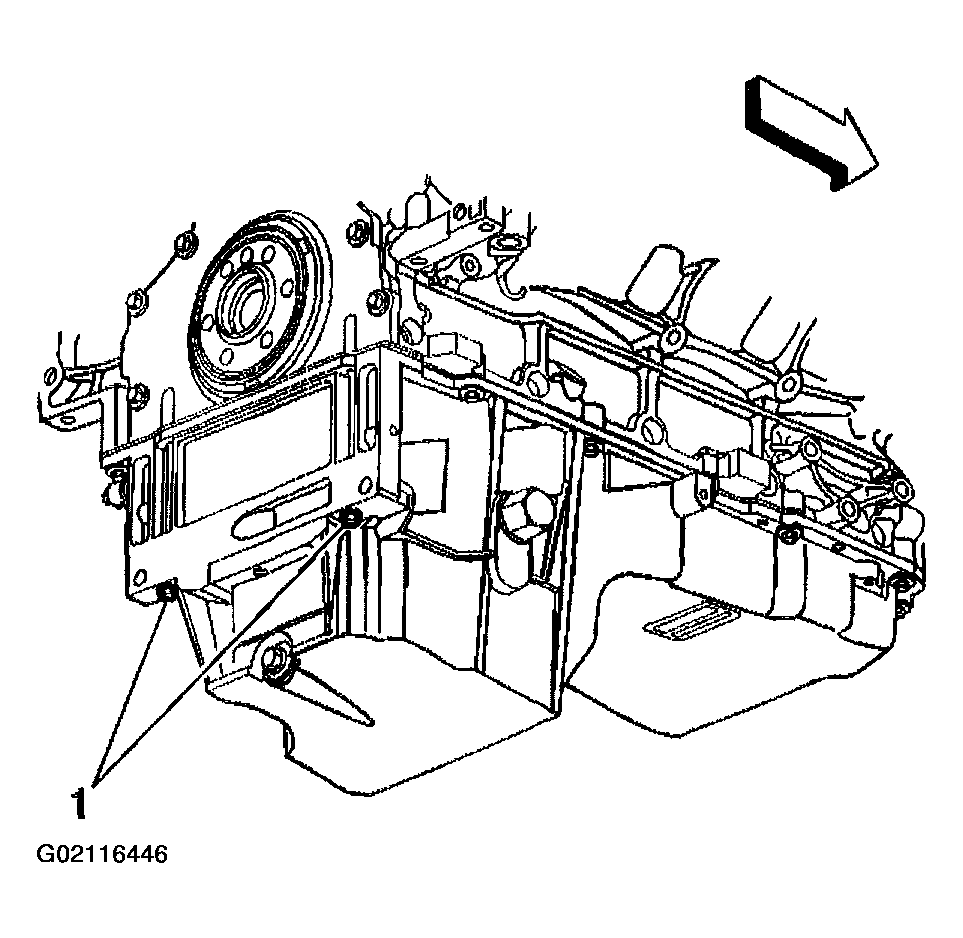

    Fig 1: Removing Oil Pan-To-Rear Cover Bolts
    G02116446Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear cover bolts.
  4. Remove the rear cover and gasket.
  5. Discard the rear cover gasket.
  6. If required, clean and inspect the rear cover. Refer to Engine Rear Cover Cleaning and Inspection  .

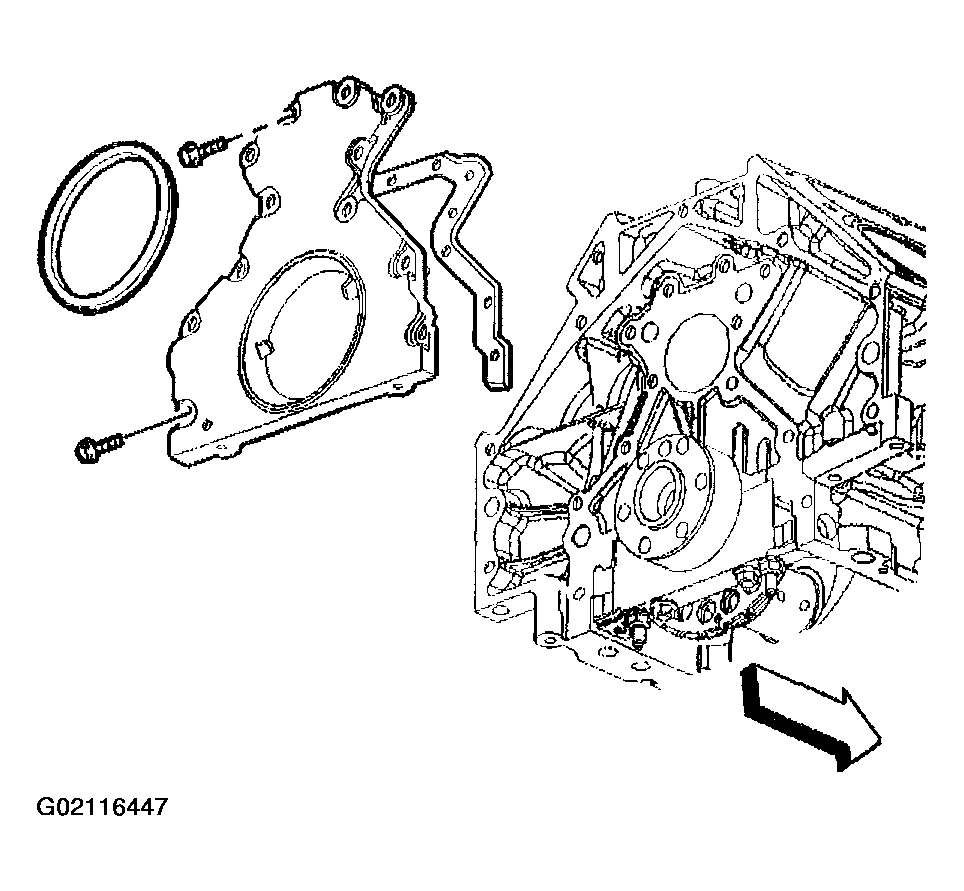

    Fig 2: Removing Rear Cover, Gasket & Bolts
    G02116447Courtesy of GENERAL MOTORS CORP.
