Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary, remove the engine sight shield. Refer to Engine Sight Shield Replacement (4.8L, 5.3L, and 6.0L (RPO LQ4))  or Engine Sight Shield Replacement (6.0L (RPO LQ9))  .
  2. Disconnect the oil pressure sensor electrical connector (1).

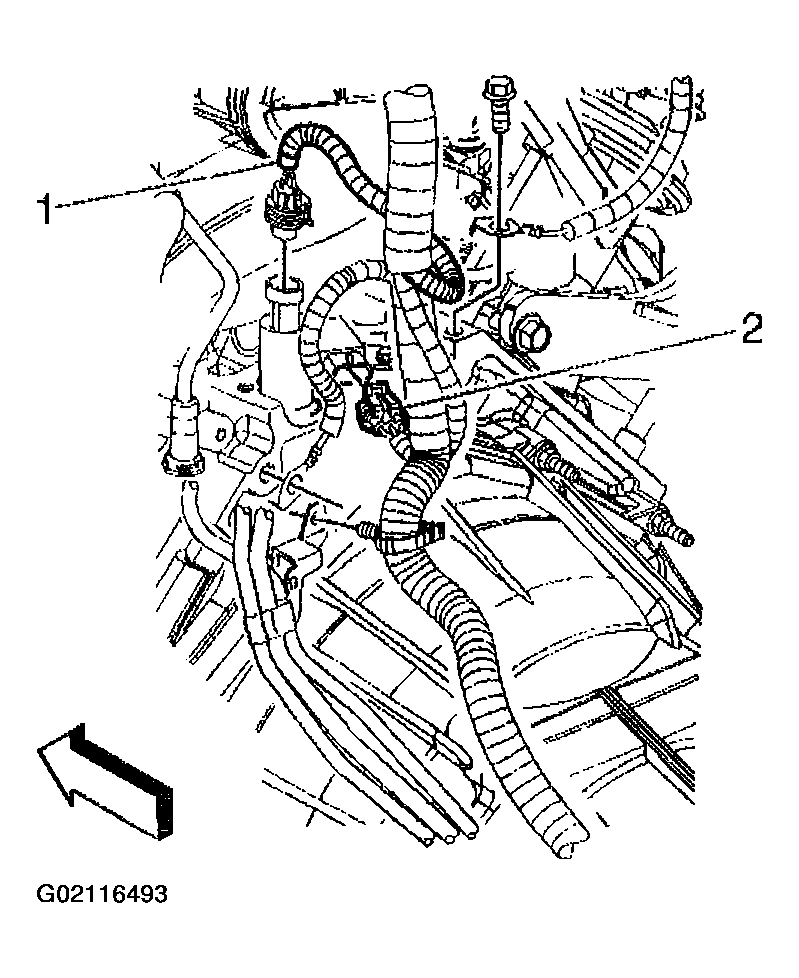

    Fig 1: Disconnecting Oil Pressure Sensor Electrical Connector
    G02116493Courtesy of GENERAL MOTORS CORP.
  3. Using J 41712  or equivalent, remove the oil pressure sensor.

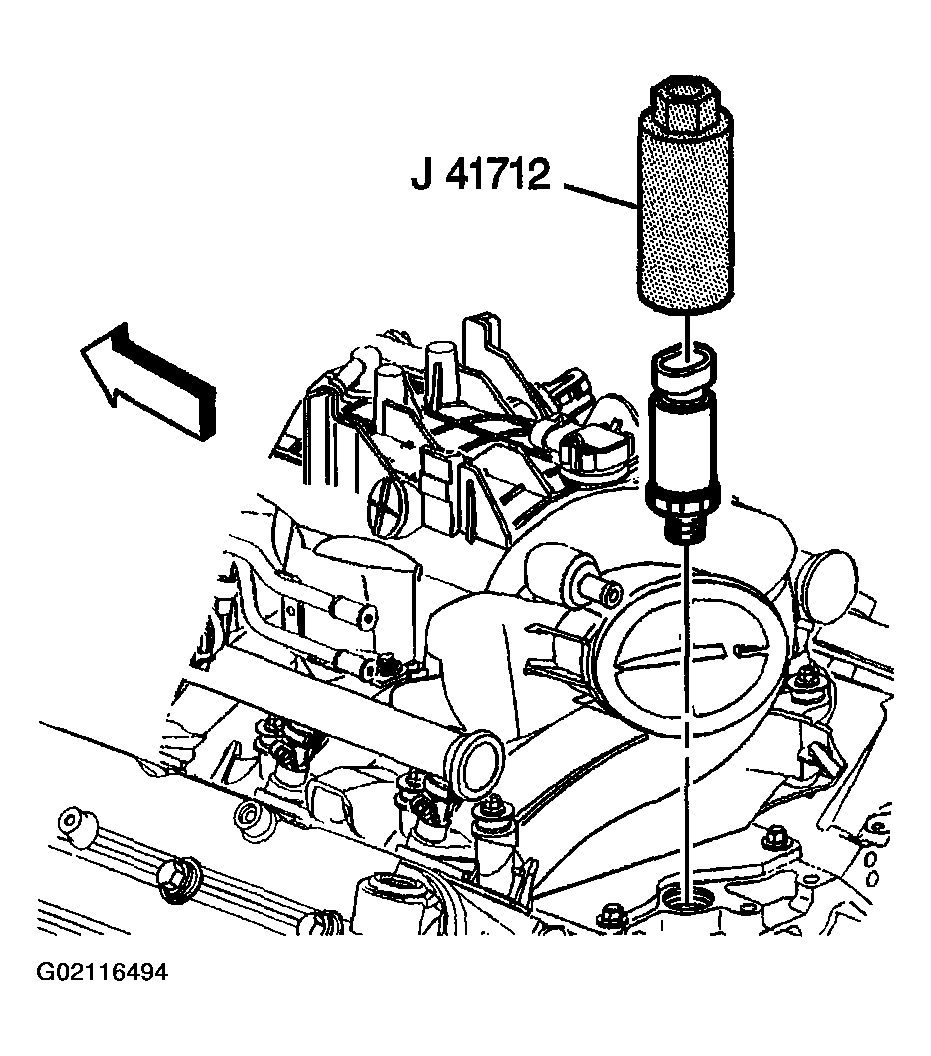

    Fig 2: Removing Oil Pressure Sensor Using J 41712
    G02116494Courtesy of GENERAL MOTORS CORP.
