Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount-to-engine mount bracket bolts.
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

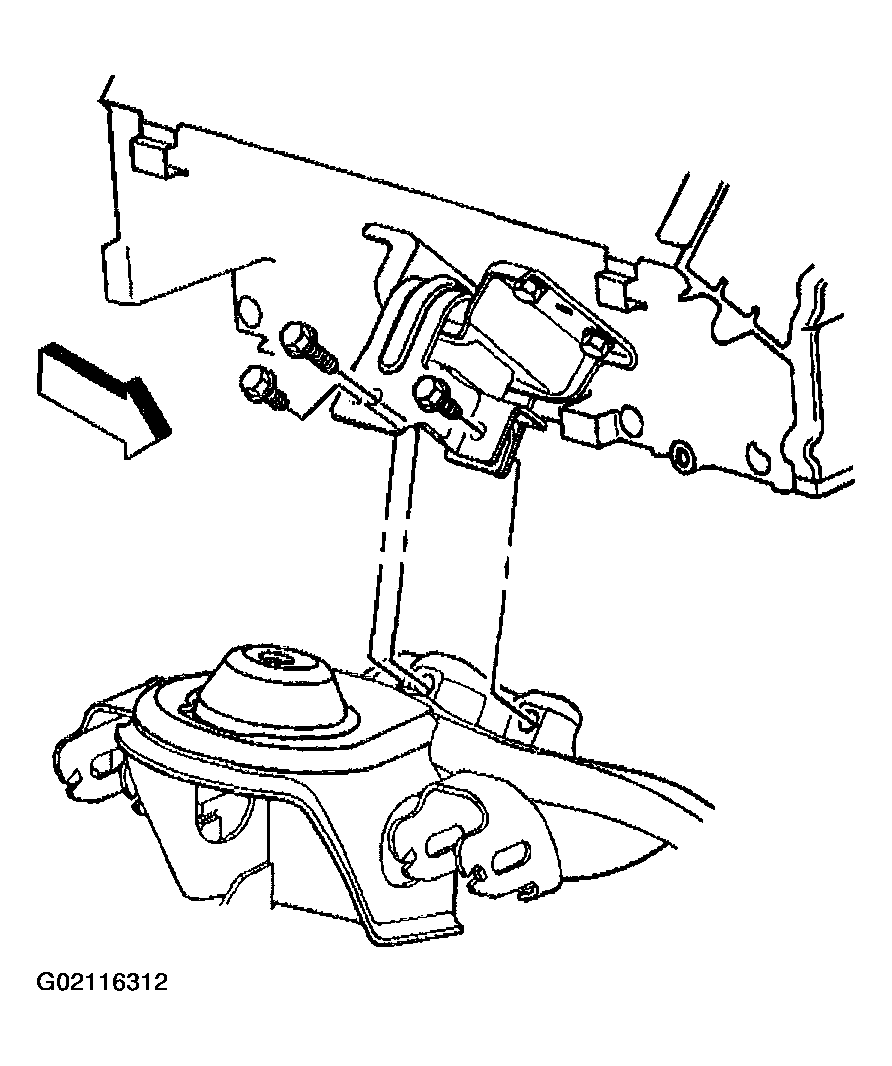

    Fig 1: Removing Engine Mount-To-Engine Mount Bracket Bolts
    G02116312Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine shield bolts.
  4. Remove the engine shield.
  5. Remove the air conditioning (A/C) compressor. Refer to COMPRESSOR REPLACEMENT (LR4, LM7, AND LQ4) in Heating, Ventilation, and Air Conditioning.
  6. Remove the starter motor. Refer to STARTER MOTOR in Engine Electrical.

    Important:  DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.

  7. Raise and suitably support the engine using adjustable (screw type) jack stands.

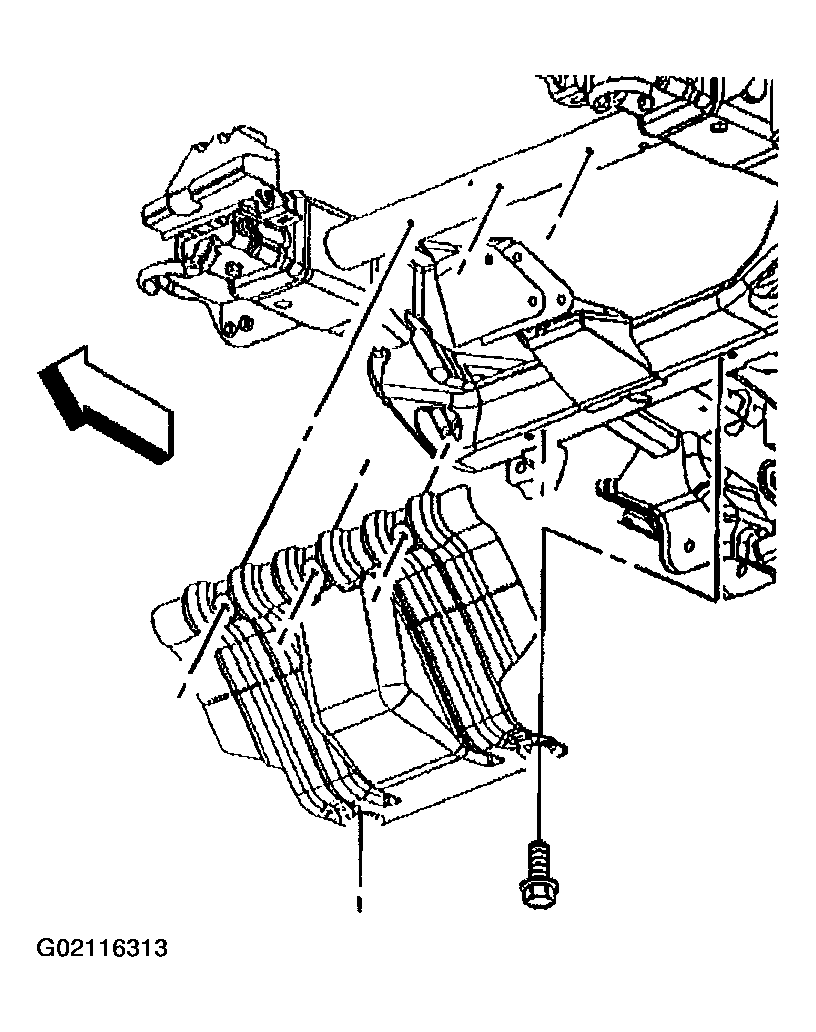

    Fig 2: Removing Engine Shield & Bolts
    G02116313Courtesy of GENERAL MOTORS CORP.
  8. Remove the engine mount bolts.
  9. Remove the right engine mount.

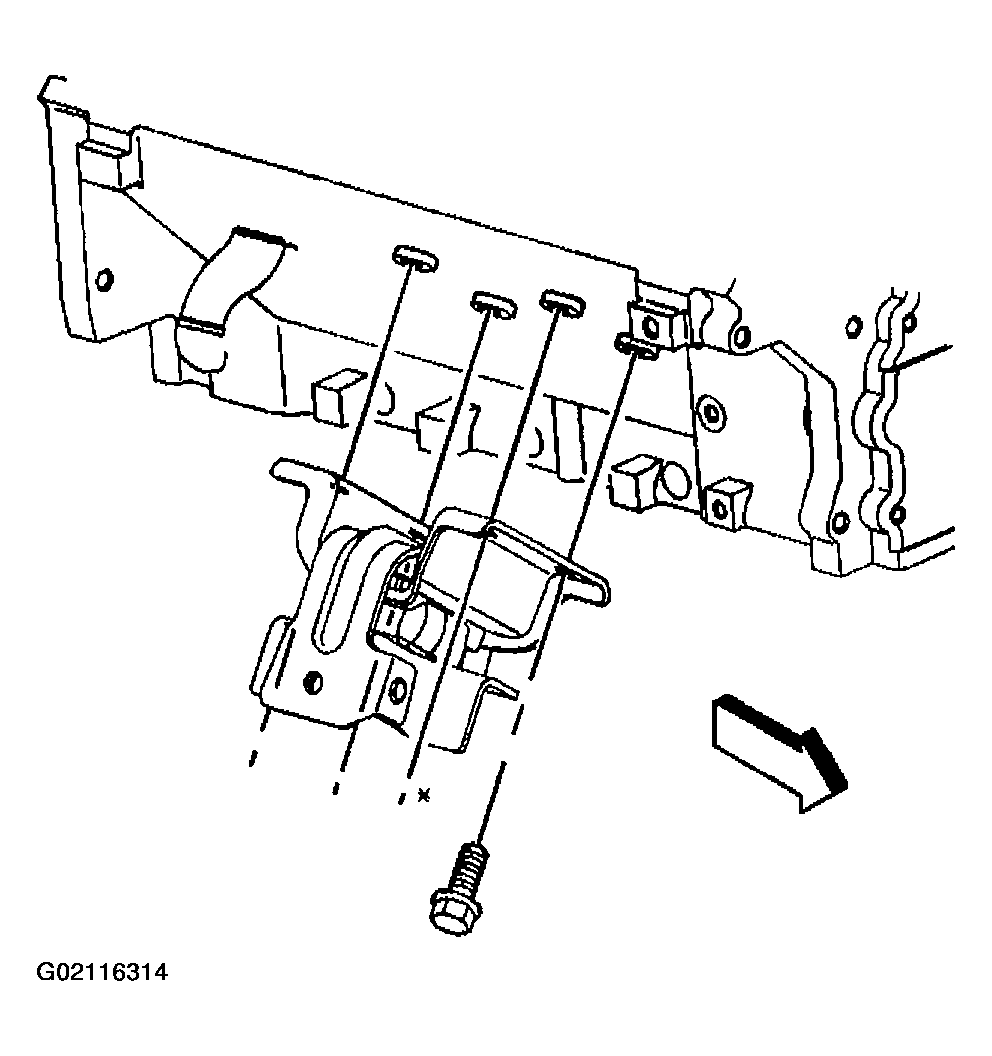

    Fig 3: Removing Right Engine Mount & Bolts
    G02116314Courtesy of GENERAL MOTORS CORP.
