Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transmission. Refer to TRANSMISSION in Automatic Transmission - 4L60-E or TRANSMISSION in Automatic Transmission - 4L80-E.

    Important:  Note the position and direction of the engine flywheel before removal.

  2. Remove the flywheel bolts.
  3. Remove the flywheel.

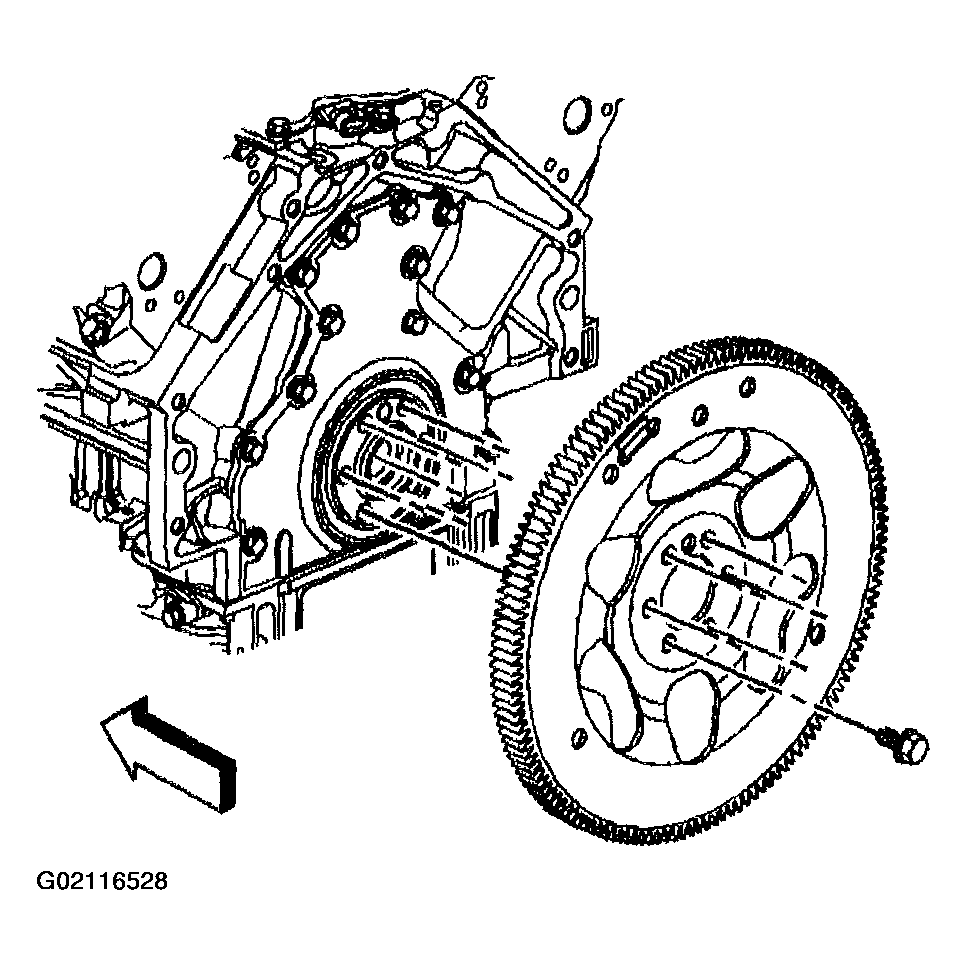

    Fig 1: Removing Flywheel & Bolts
    G02116528Courtesy of GENERAL MOTORS CORP.
  4. Install two M11x1.5 mm bolts (1) to the threaded holes of the spacer, if applicable.
  5. Rotate the bolts clockwise to remove the spacer.

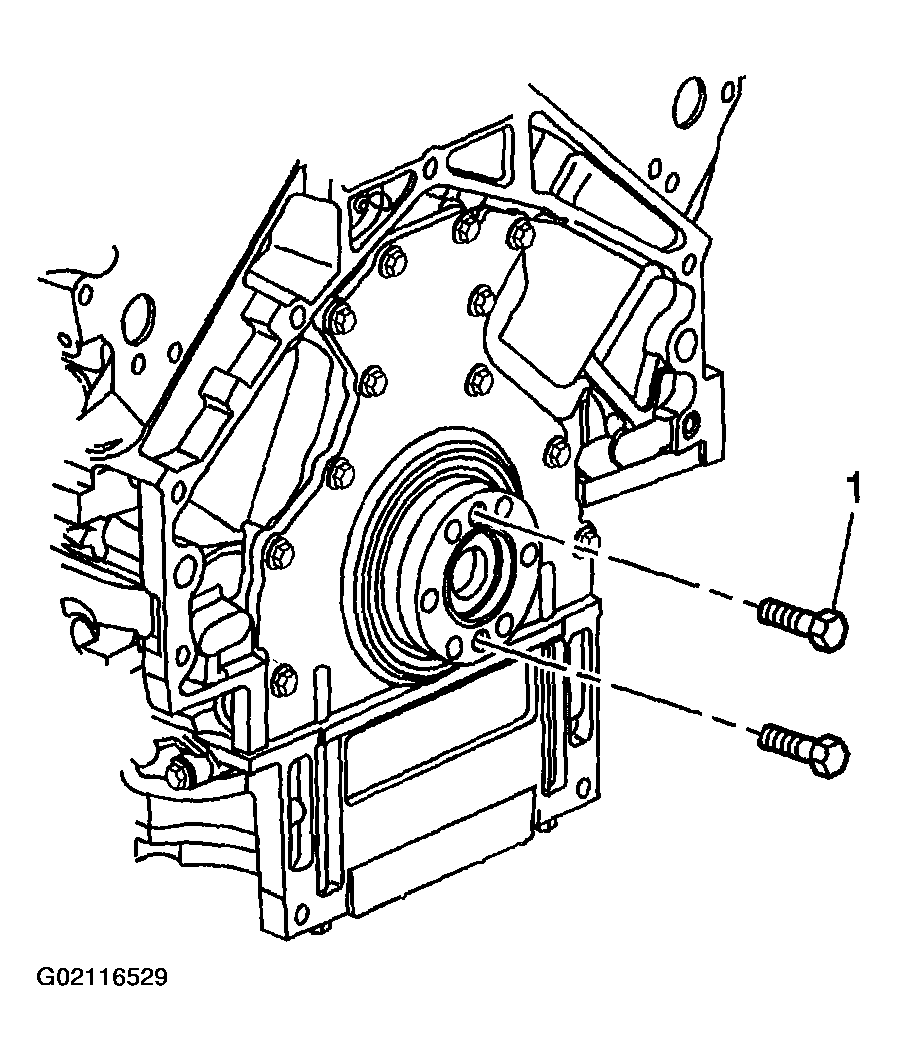

    Fig 2: Installing Bolts To Threaded Holes Of Spacer
    G02116529Courtesy of GENERAL MOTORS CORP.
  6. Remove the spacer from the rear of the crankshaft, if applicable.

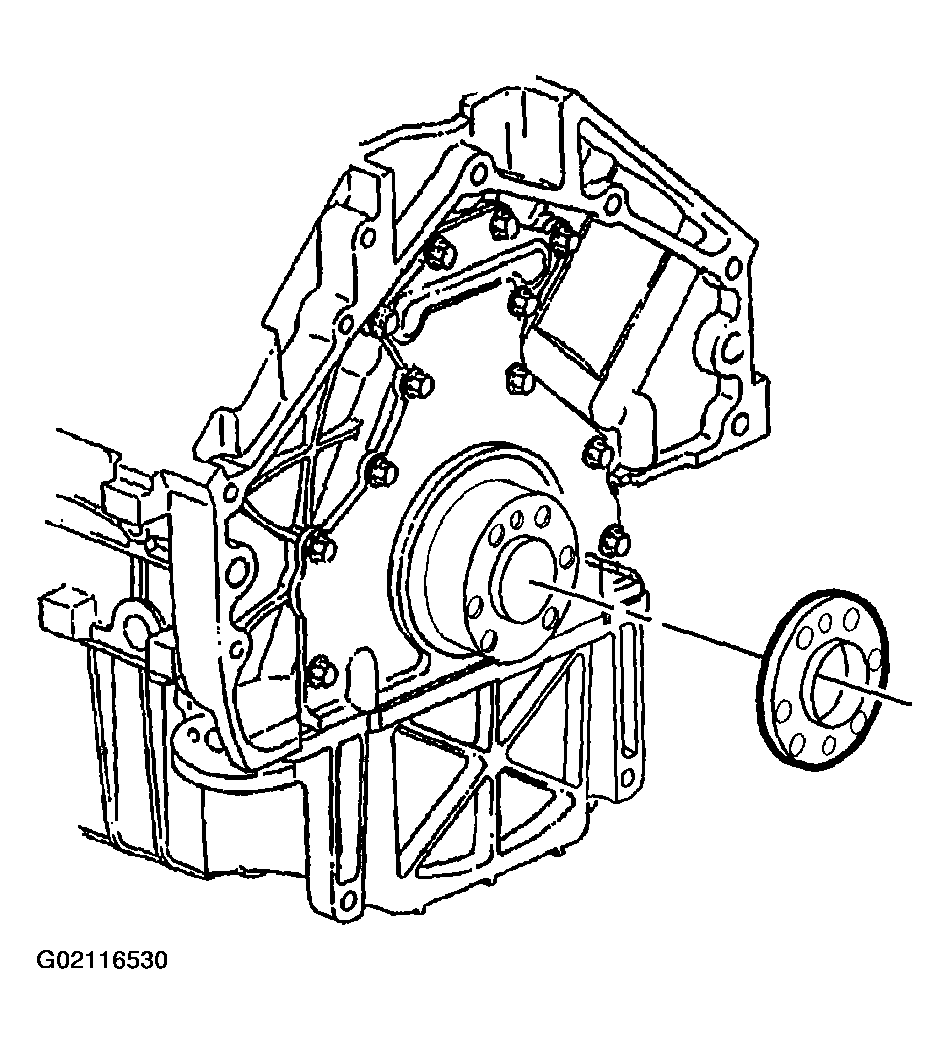

    Fig 3: Removing Spacer From Rear Of Crankshaft
    G02116530Courtesy of GENERAL MOTORS CORP.
