Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:

The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.
Certain applications (6.0L) require a spacer and longer bolts for proper flywheel position.

Install the spacer, if applicable, onto the rear of the crankshaft.

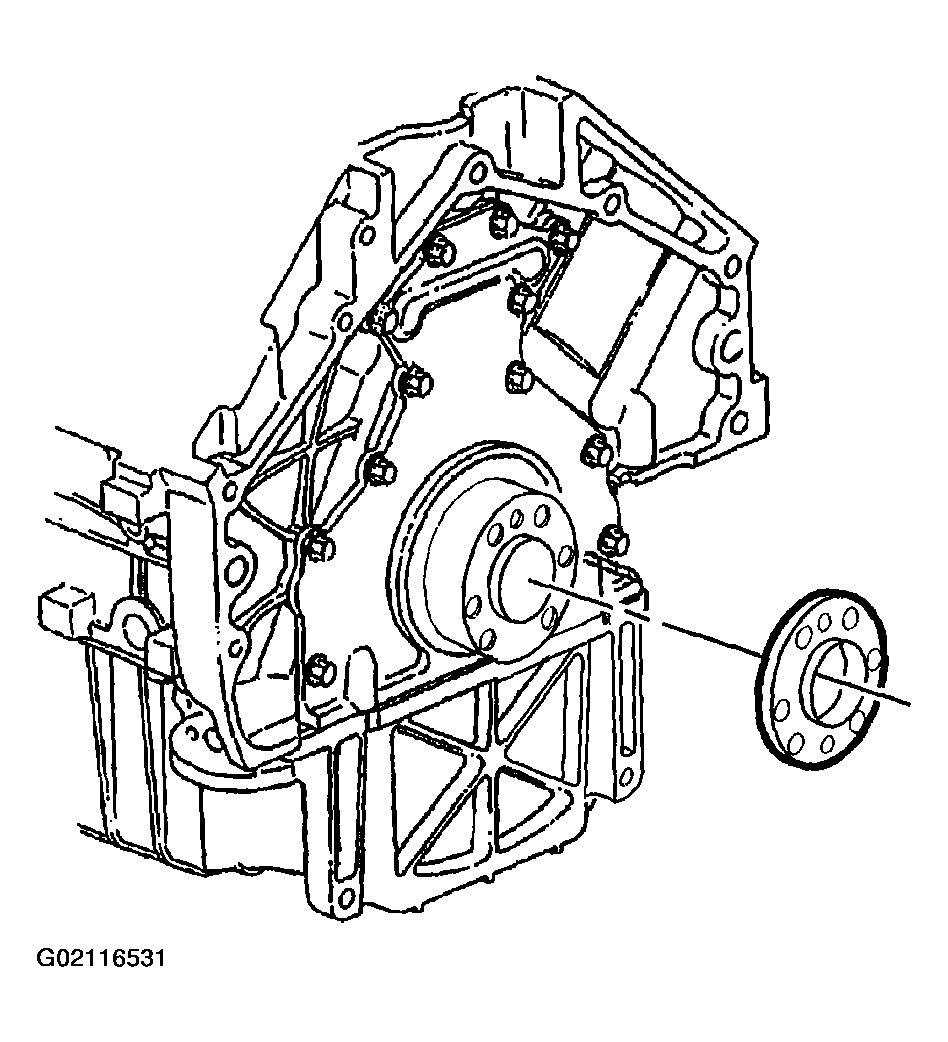

Fig 1: Installing Spacer Onto Rear Of Crankshaft
Courtesy of GENERAL MOTORS CORP.
Install the flywheel and bolts to the crankshaft.
Important: Longer flywheel bolts must be used on applications using a flywheel spacer.
Apply threadlock GM P/N 12345382, (Canadian P/N 10953489) or equivalent to the threads of the flywheel bolts.

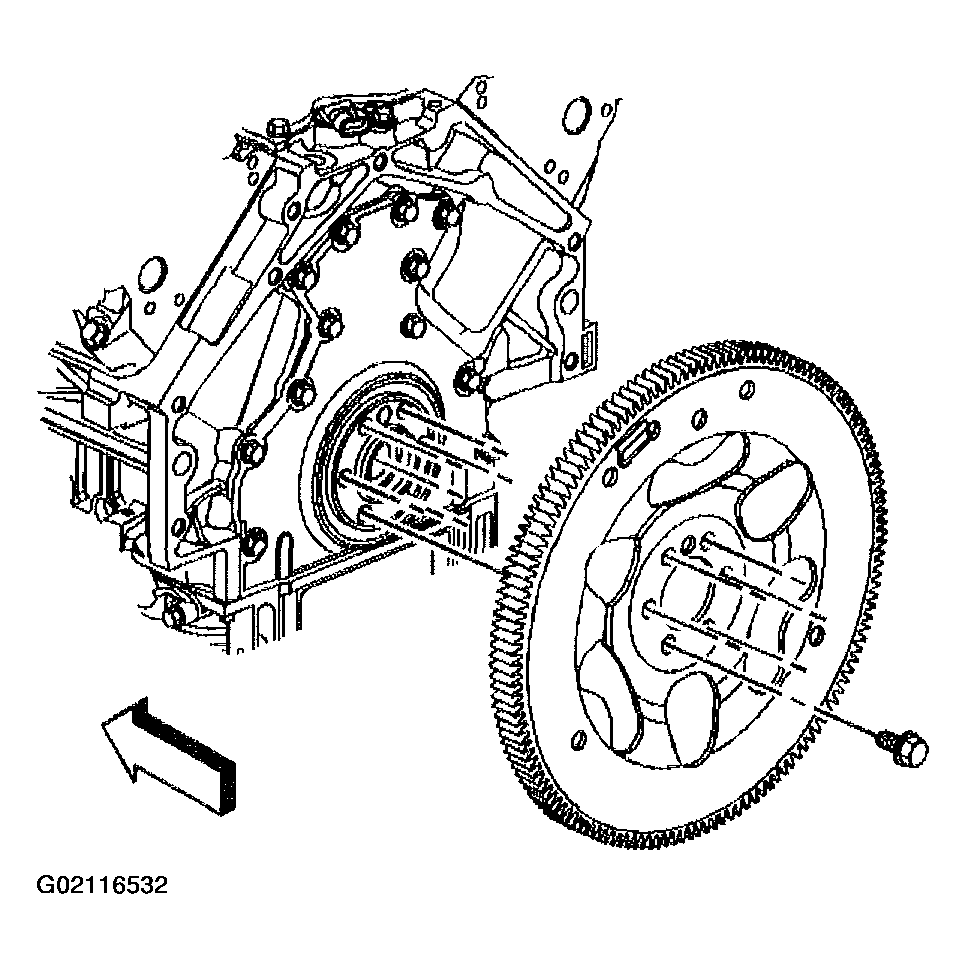

Fig 2: Installing Flywheel & Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten the flywheel bolts.
Tighten
1. 4.1. Tighten the bolts a first pass in sequence to 20 N.m (15 lb ft).
2. 4.2. Tighten the bolts a second pass in sequence to 50 N.m (37 lb ft).
3. 4.3. Tighten the bolts a final pass in sequence to 100 N.m (74 lb ft).
Install the automatic transmission. Refer to TRANSMISSION in Automatic Transmission - 4L60-E or TRANSMISSION in Automatic Transmission - 4L80-E.

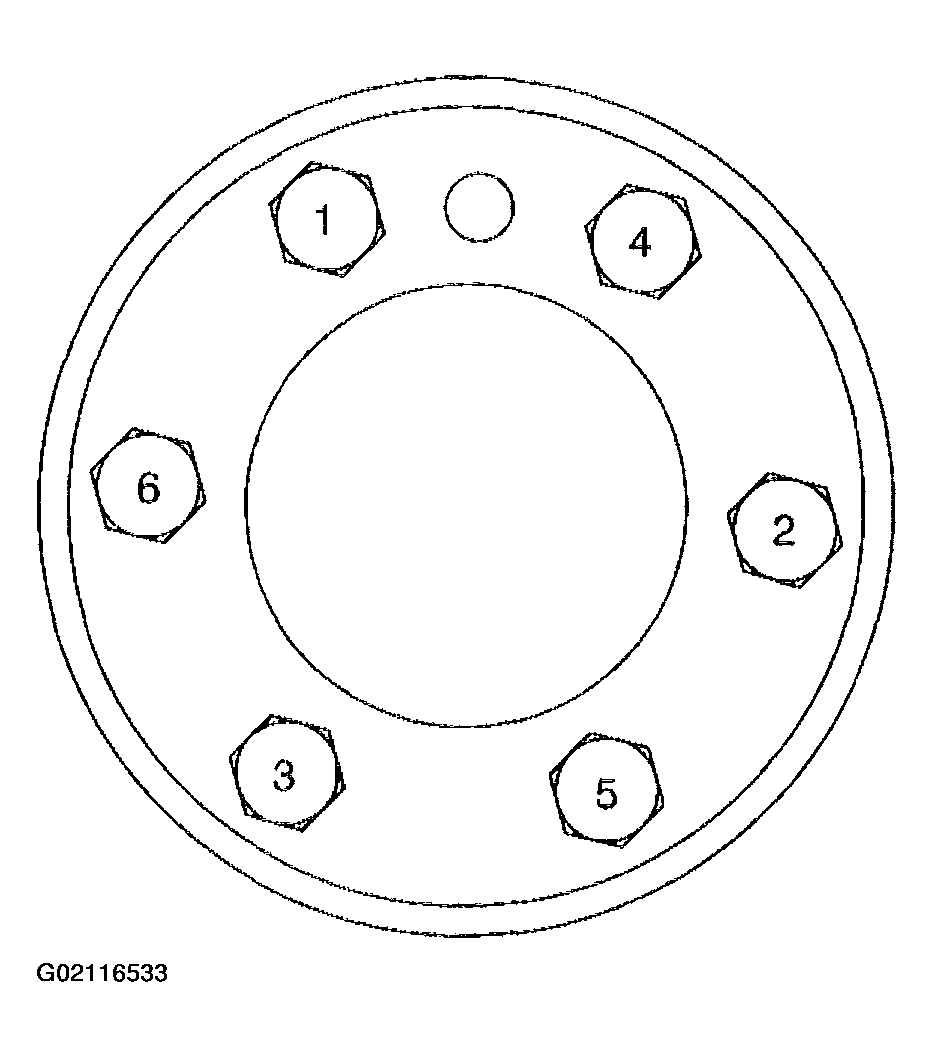

Fig 3: Tightening Bolts In Sequence
Courtesy of GENERAL MOTORS CORP.
