Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
  2. Install the drive belt tensioner bolts.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Tighten the drive belt tensioner bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT - ACCESSORY  .

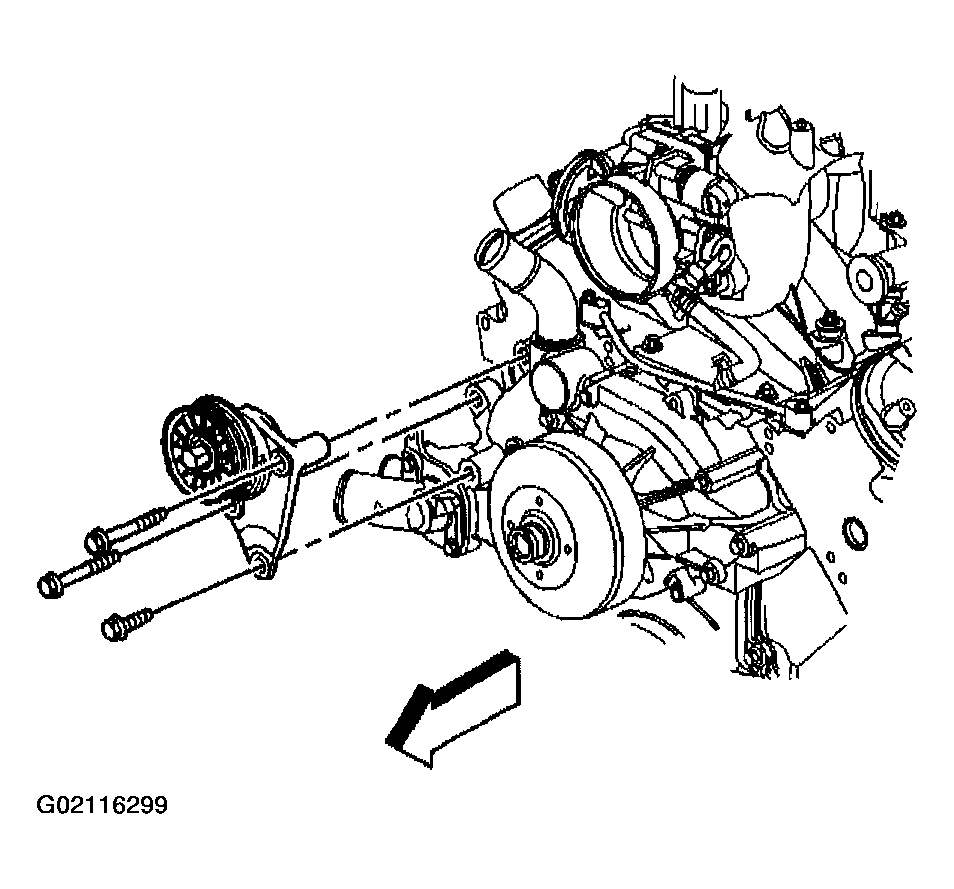

    Fig 1: Installing Procedure Drive Belt Tensioner - Accessory
    G02116299Courtesy of GENERAL MOTORS CORP.
