Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the drive belt (1) around all the pulleys except the idler pulley.
  2. Install the breaker bar with hex-head socket to the belt tensioner bolt.
  3. Rotate the belt tensioner clockwise in order to relieve the tension on the tensioner.
  4. Install the drive belt (1) under the idler pulley.
  5. Slowly release the tension on the belt tensioner.
  6. Remove the breaker bar and socket from the belt tensioner bolt.
  7. Inspect the drive belt (1) for proper installation and alignment.

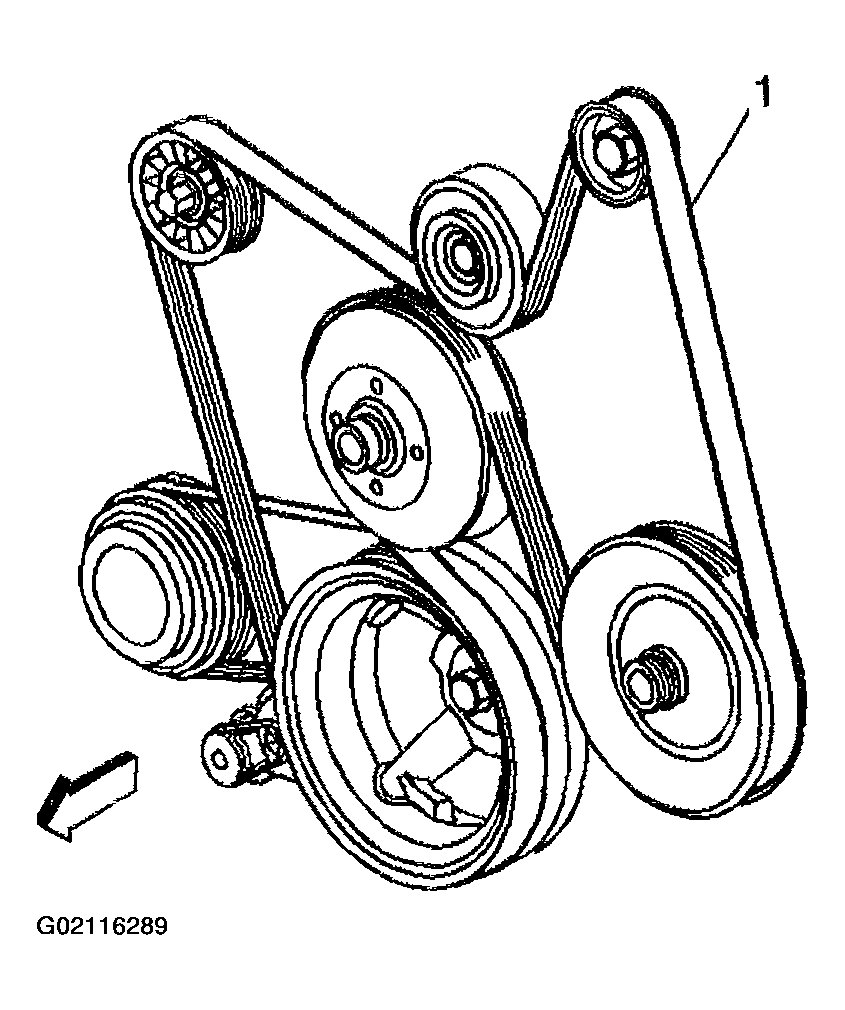

    Fig 1: Aligning Arrow At Throttle Body End Of Duct With Throttle Body Attaching Stud
    G02116289Courtesy of GENERAL MOTORS CORP.
  8. Align the arrow (2) at the throttle body end of the duct with the throttle body attaching stud (1).

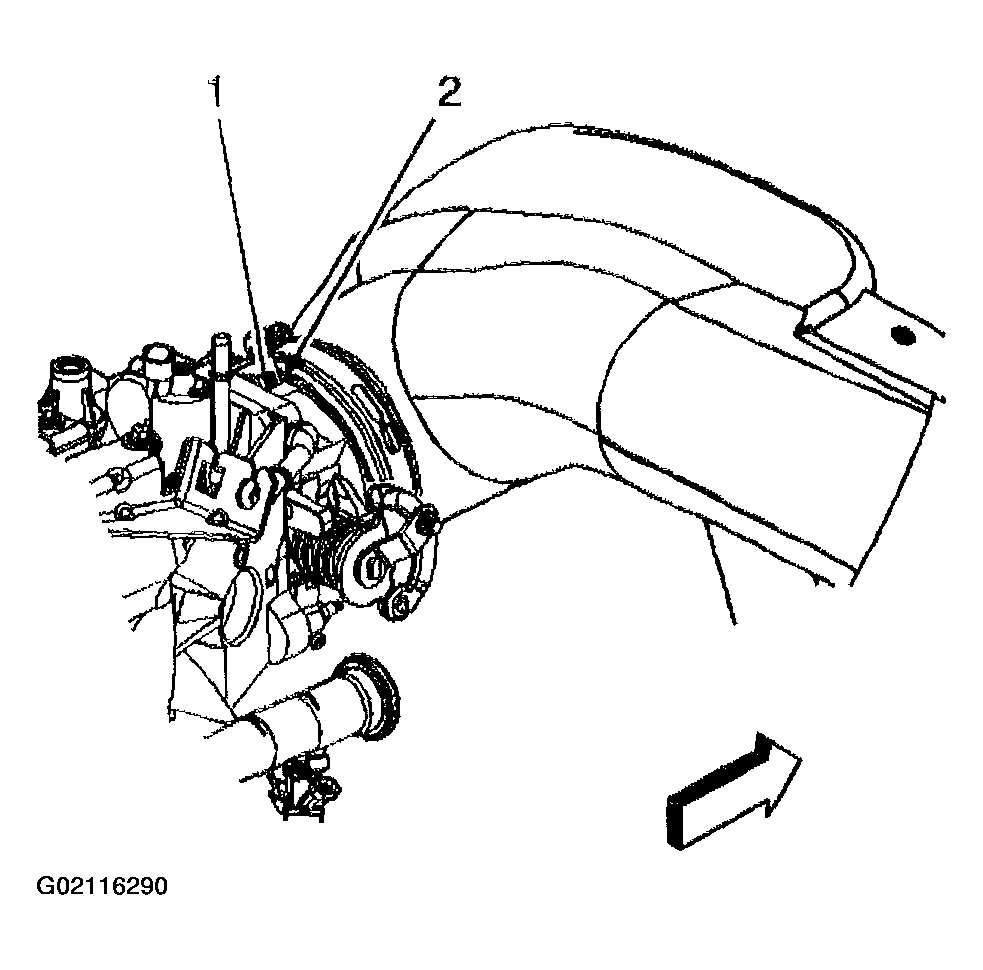

    Fig 2: Installing Air Cleaner Outlet Duct
    G02116290Courtesy of GENERAL MOTORS CORP.
  9. Install the air cleaner outlet duct.
  10. Connect the radiator inlet hose clip to the outlet duct.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  11. Tighten the air cleaner outlet duct clamp screws at the following locations:
    • The throttle body
    • The MAF/IAT sensor

      Tighten

      Tighten the screws to 7 N.m (62 lb in).

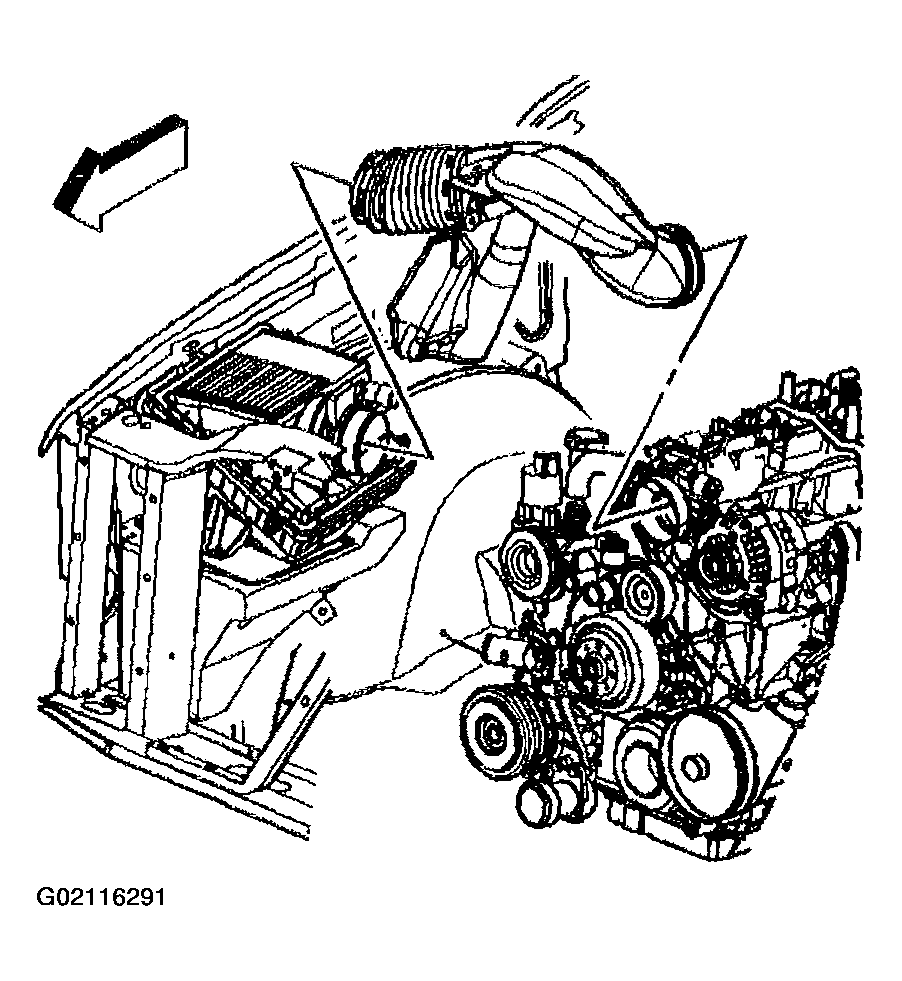

    Fig 3: Installing Air Cleaner Outlet Duct
    G02116291Courtesy of GENERAL MOTORS CORP.
