Valve Rocker Arm and Push Rod Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Place valve rocker arms, valve pushrod, and pivot support, in a rack so that they can be installed in the same location from which they were removed.

Remove the valve rocker arm bolts.
Remove the valve rocker arms.

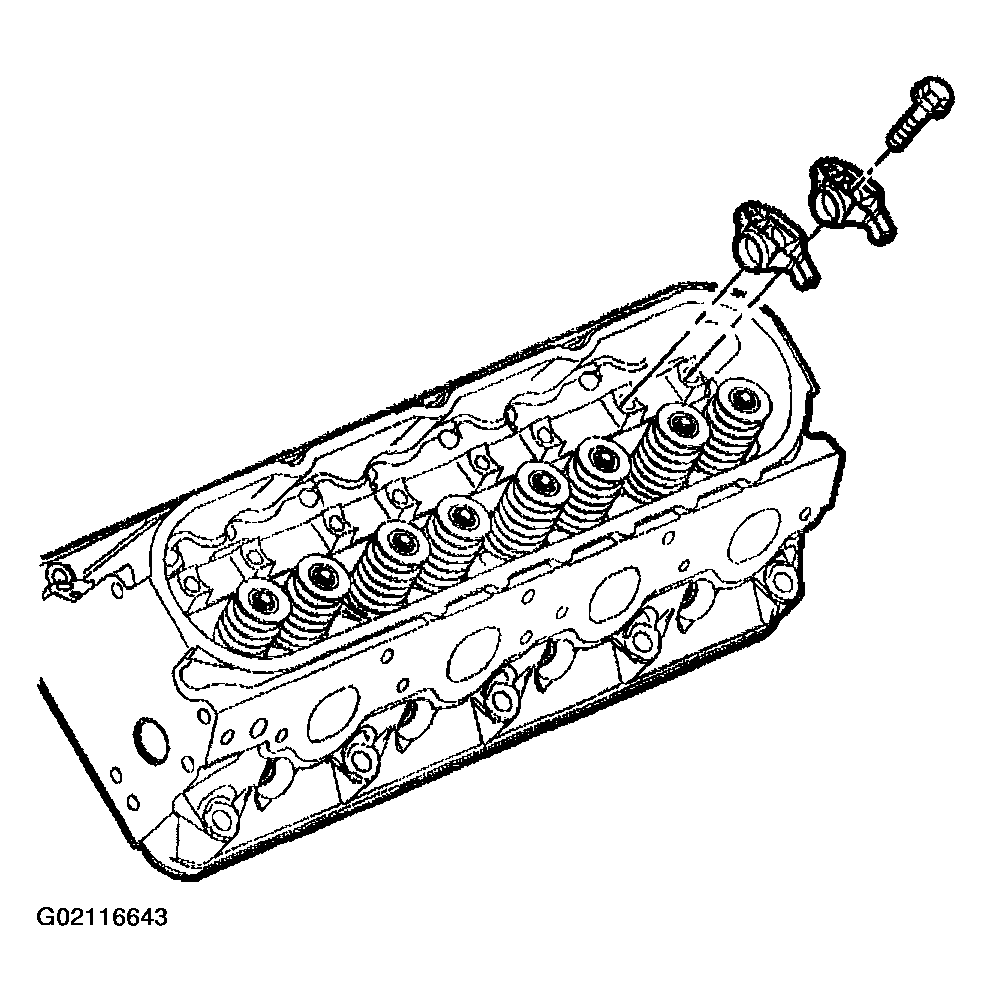

Fig 1: Removing Valve Rocker Arm & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the valve rocker arm pivot support.

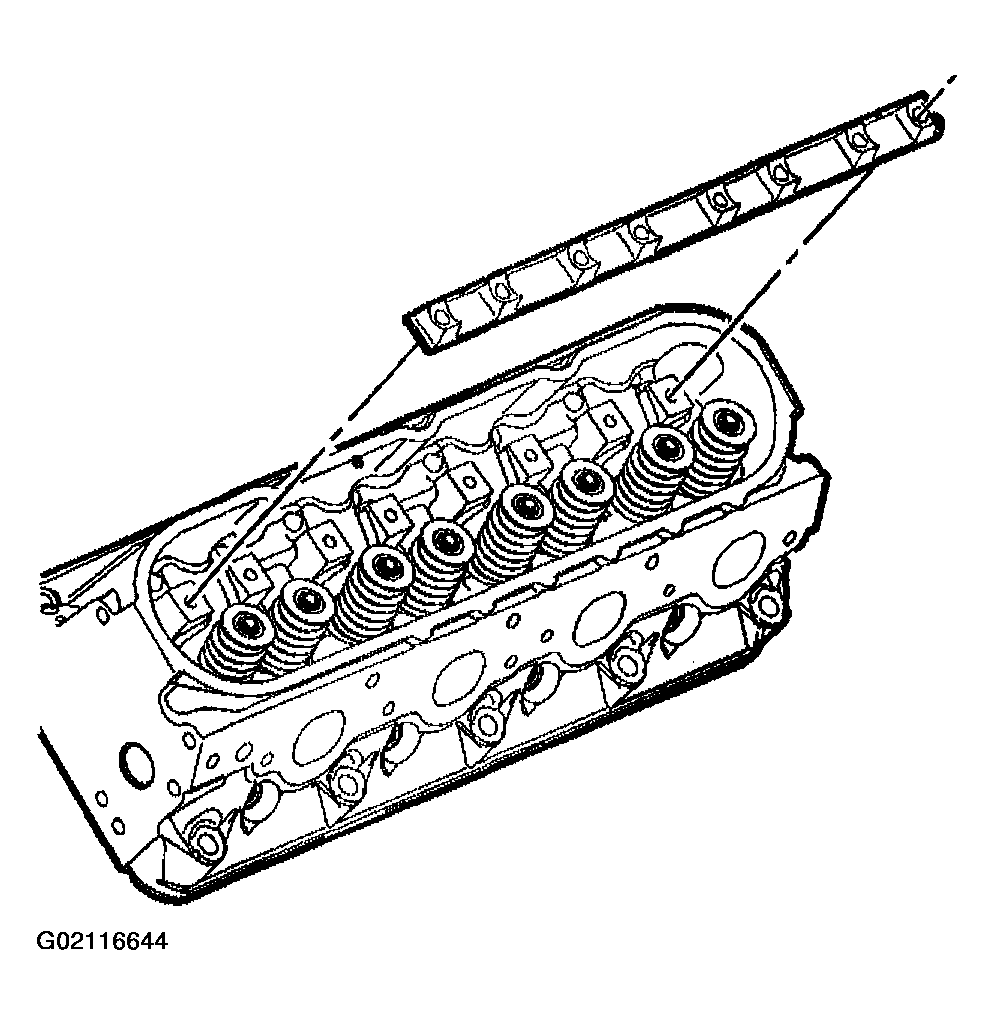

Fig 2: Removing Valve Rocker Arm Pivot Support
Courtesy of GENERAL MOTORS CORP.
Remove the pushrod.

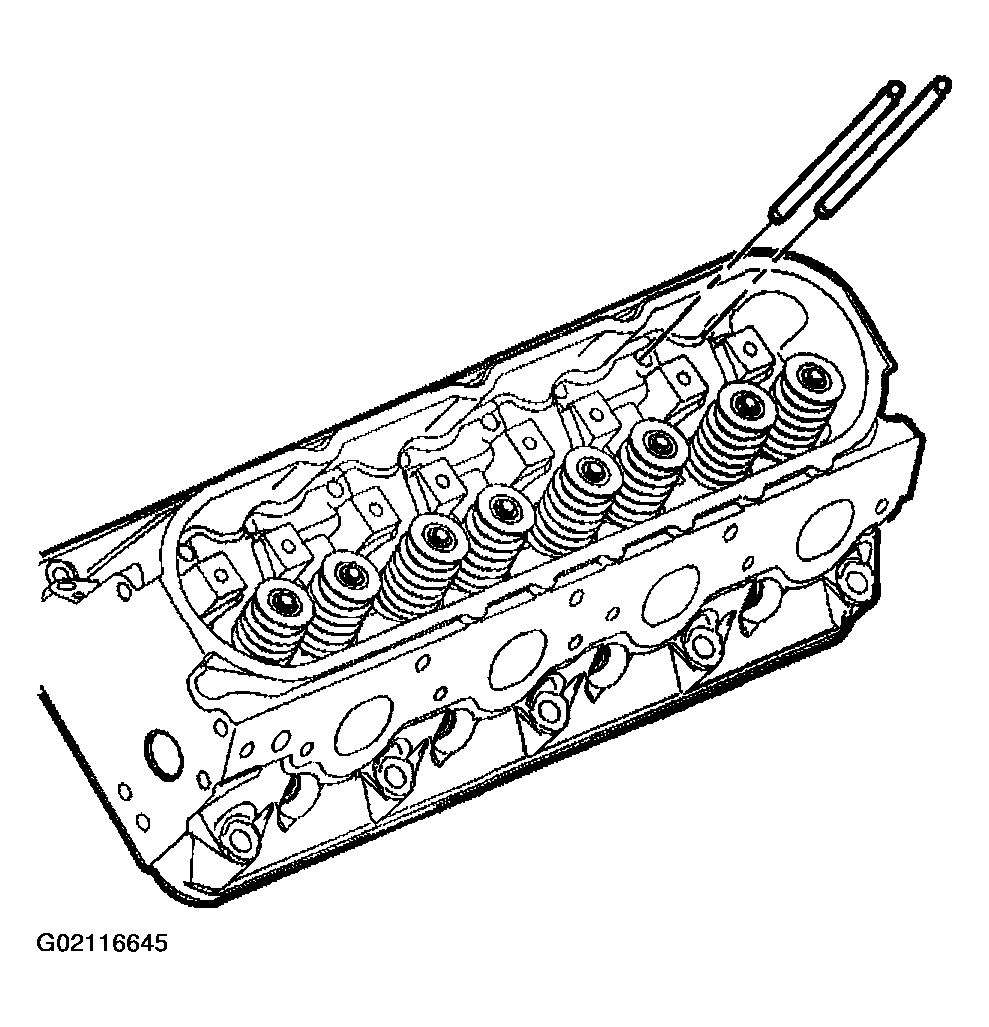

Fig 3: Removing Pushrod
Courtesy of GENERAL MOTORS CORP.
