Valve Rocker Arm Cover Removal - Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not remove the ignition coils from the valve rocker arm cover unless required.

Do not remove the oil fill tube from the cover unless service is required.

If the oil fill tube has been removed from the cover, install a NEW tube during assembly.

Remove the ignition coil bracket bolts from the rocker arm cover, if required.
Remove the ignition coil and bracket assembly from the cover.

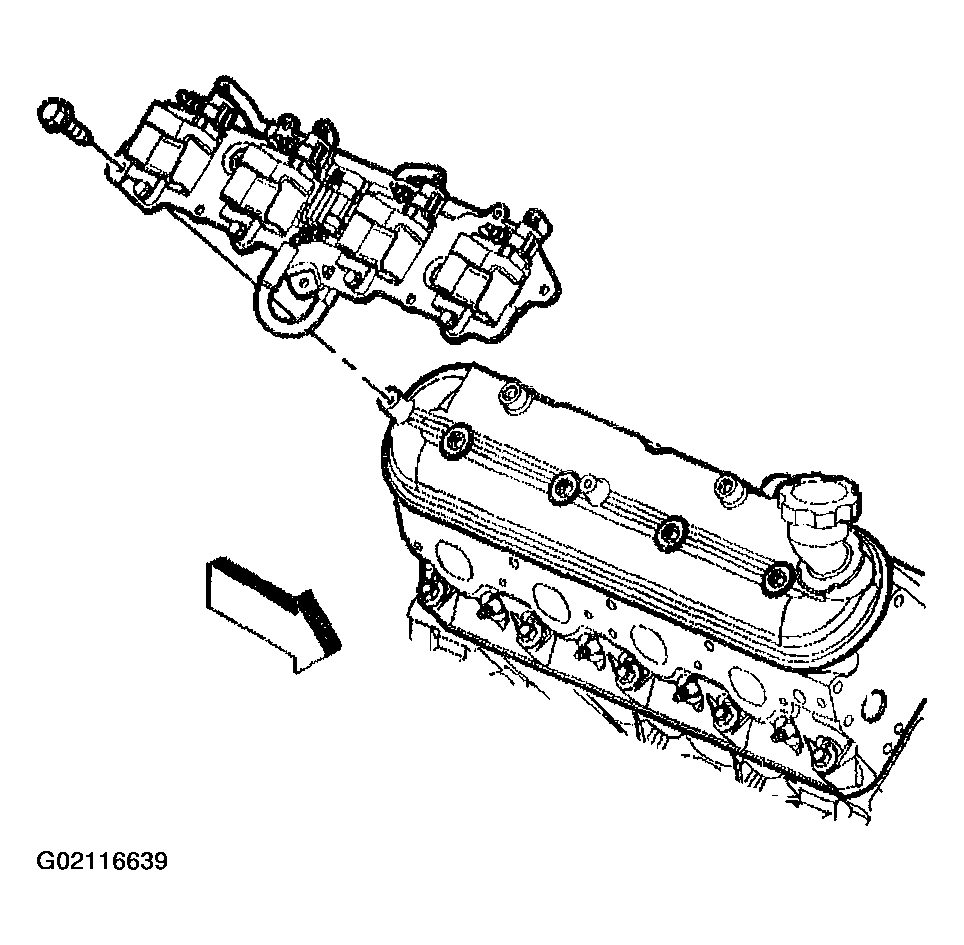

Fig 1: Removing Ignition Coil Bracket Bolts From Rocker Arm Cover (Right)
Courtesy of GENERAL MOTORS CORP.
Remove the valve rocker arm cover bolts.
Remove the valve rocker arm cover.

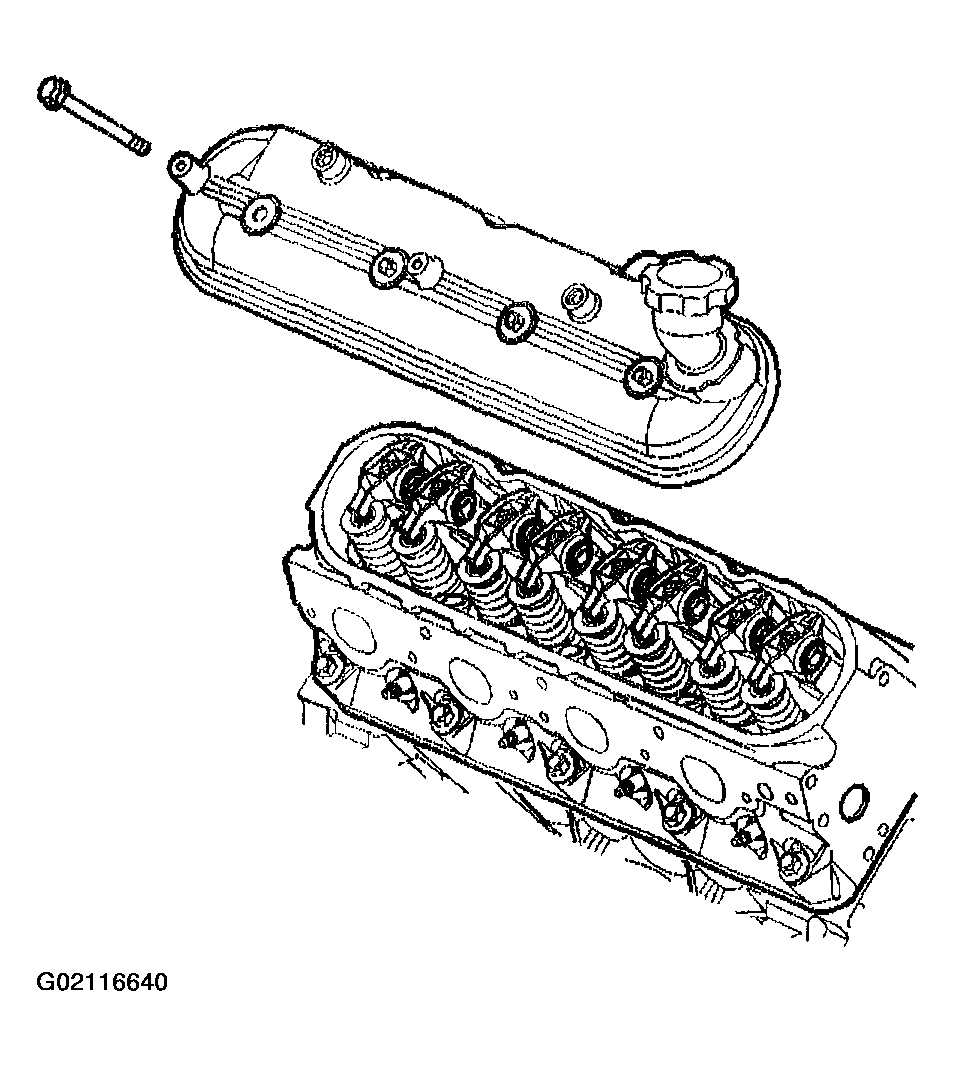

Fig 2: Removing Valve Rocker Arm Cover & Bolts (Right)
Courtesy of GENERAL MOTORS CORP.
Remove the gasket (1) from the cover.
Discard the gasket.
The bolt grommets may be used again if they are not damaged.

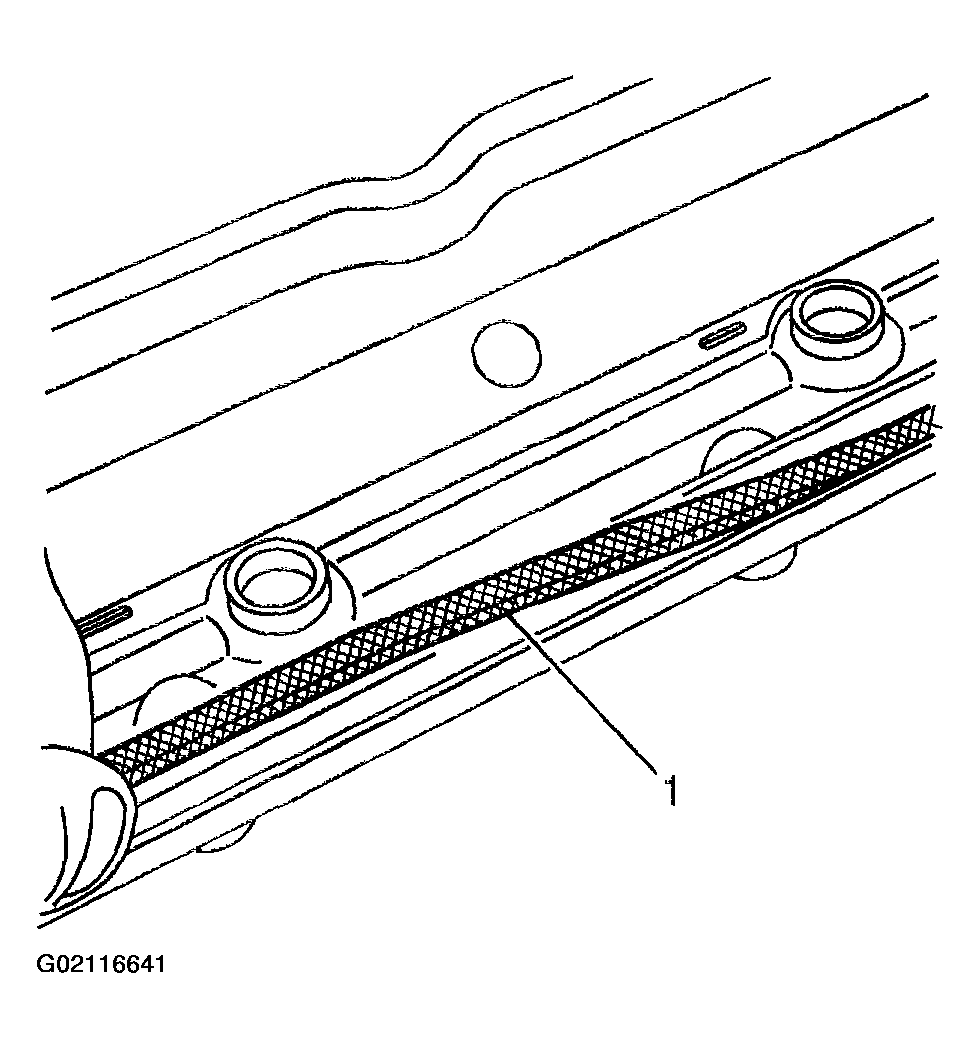

Fig 3: Removing Gasket From Cover (Right)
Courtesy of GENERAL MOTORS CORP.
Remove the oil fill cap from the oil fill tube.
Remove the oil fill tube, if required.
Discard the oil fill tube.

Fig 4: Removing Oil Fill Cap From Oil Fill Tube (Right)
