Throttle Body Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the throttle body studs, if required.

    Tighten

    Tighten the throttle body studs to 6 N.m (53 lb in).

    Important:  DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

  2. Install the throttle body gasket (1) to the intake manifold.

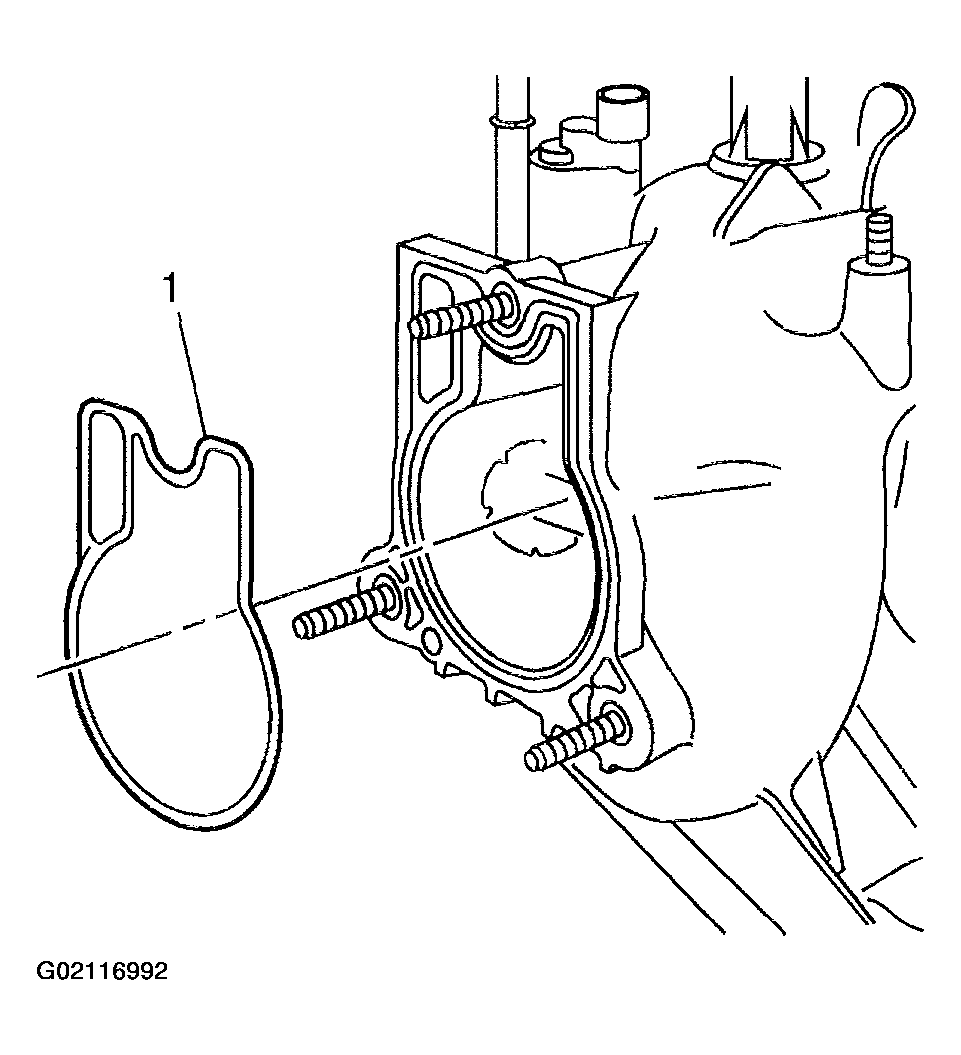

    Fig 1: Installing Throttle Body Gasket To Intake Manifold
    G02116992Courtesy of GENERAL MOTORS CORP.
  3. Install the throttle body and nuts.

    Tighten

    Tighten the throttle body nuts to 10 N.m (89 lb in).

  4. Install the engine coolant air bleed hose and clamp to the throttle body.

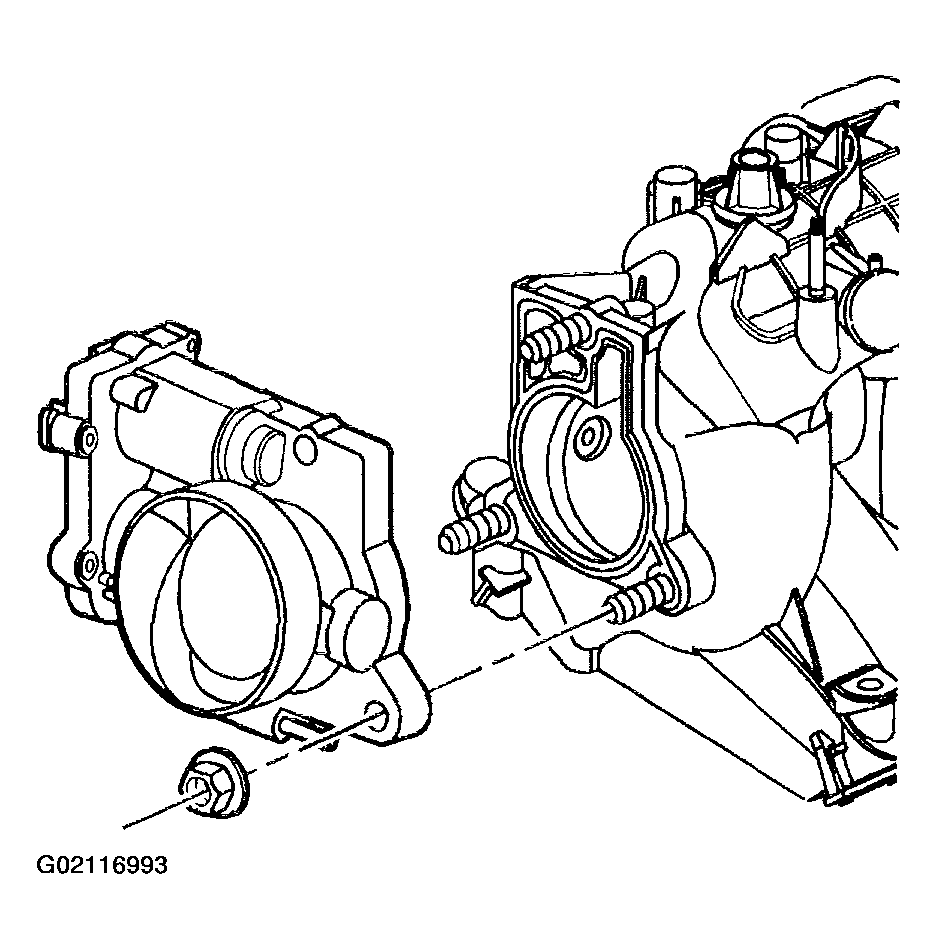

    Fig 2: Installing Throttle Body & Nuts
    G02116993Courtesy of GENERAL MOTORS CORP.
