Piston, Connecting Rod, and Bearing Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
- J 24270 Cylinder Bore Ridge Reamer
- J 41556 Connecting Rod Guide
Important: The connecting rods and the bearing caps are NOT interchangeable.

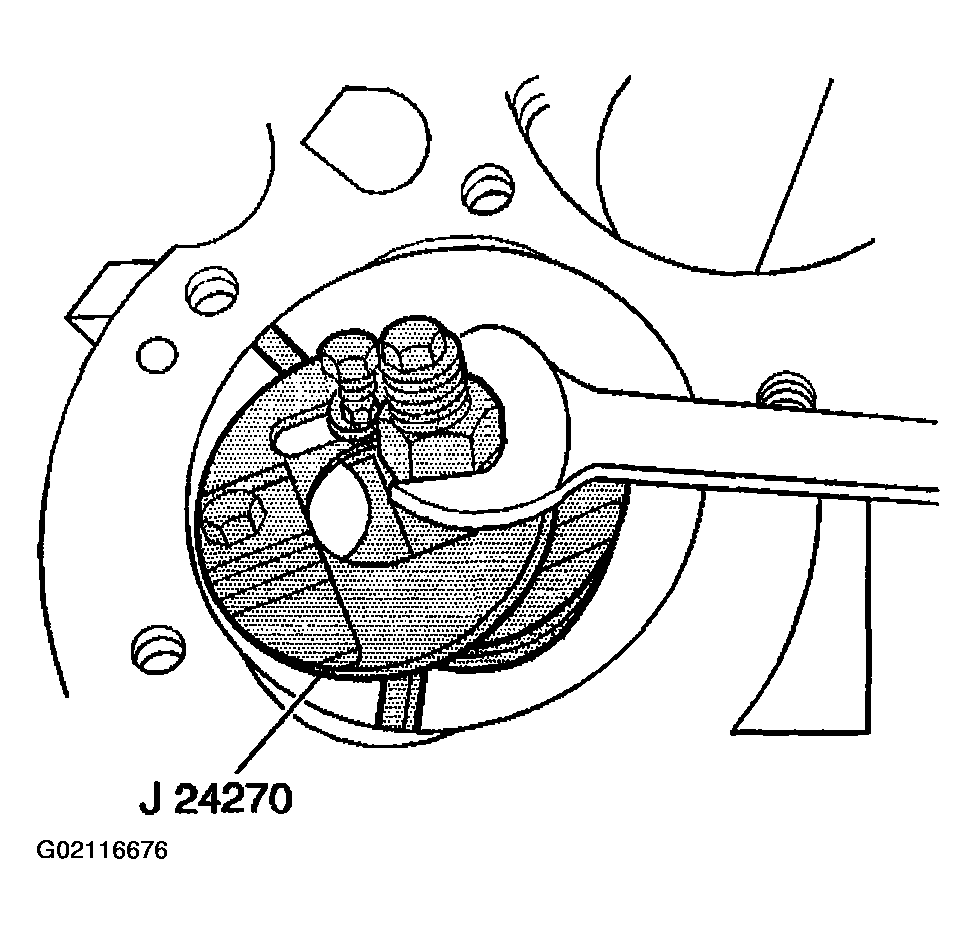

- Use the J 24270
in order to remove the cylinder bore ring ridge, if required.
- 1.1. Turn the crankshaft until the piston is at the bottom of the stroke.
- 1.2. Place a cloth on top of the piston.
- 1.3. Use the J 24270 or equivalent in order to remove a cylinder ring ridge.
- 1.4. Turn the crankshaft so the piston is at the top of the stroke.
- 1.5. Remove the cloth.
- 1.6. Remove the cutting debris from the cylinder and piston.
Important: Using a paint stick or etching tool, place matchmarks or numbers on the connecting rods and the connecting rod caps. The connecting rods and caps MUST be assembled to their original position and direction.
A stamping mark on the side of the connecting rod at the crank journal may effect component geometry.
Mark the top of the piston to the specific cylinder bore.
- Remove the connecting rod bolts.
Important: Mark, sort, or organize the connecting rod bearings so they may be installed to their original position and location.
- Remove the connecting rod cap. Refer to SEPARATING PARTS .

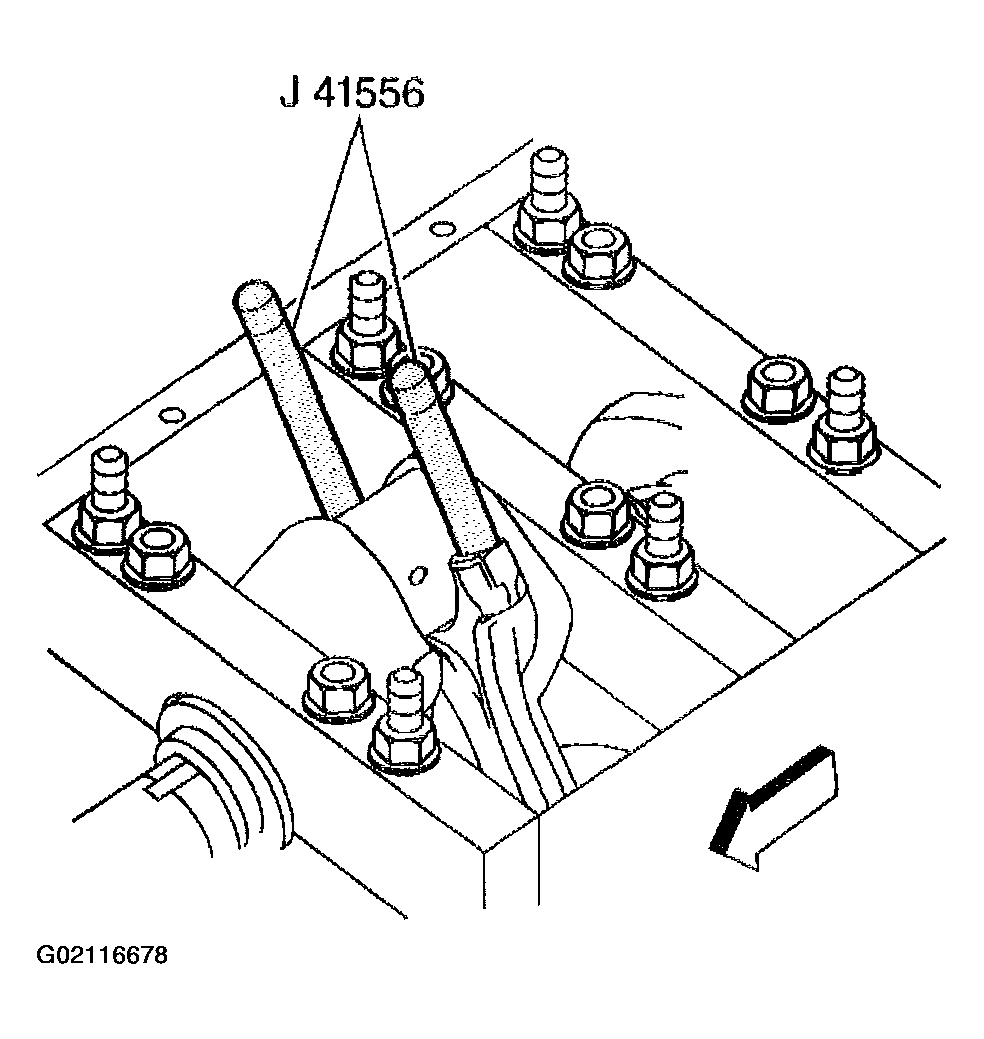

- Install the J 41556 to the connecting rod.

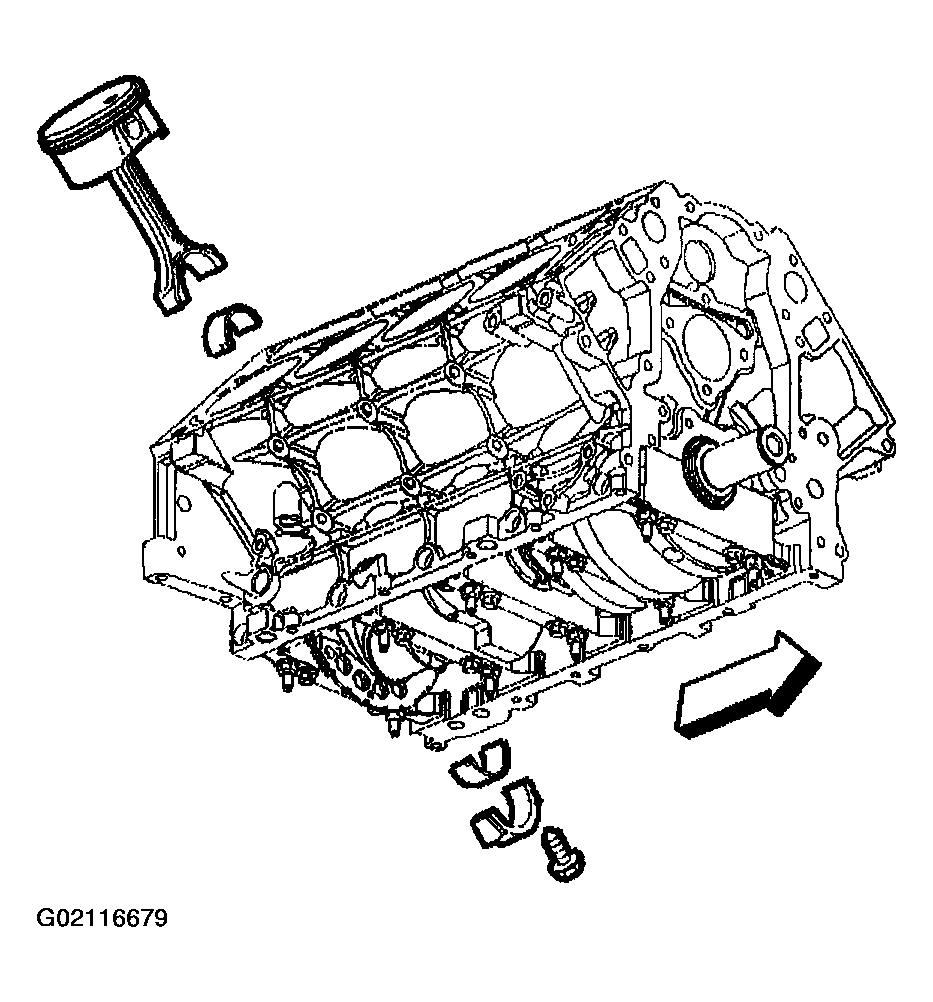

- Use a hammer and tap lightly on the end of the J 41556 in order to remove the piston and connecting rod assembly from the cylinder bore.
- Upon removal of the piston and connecting rod assembly, assemble the connecting rod cap and bolts onto the matching connecting rod.
