Fuel Rail and Injectors Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to FUEL RAIL STOP BRACKET INSTALLATION CAUTION
in Cautions and Notices.
Important: DO NOT use the fuel injector O-ring seals again. Install NEW fuel injector O-ring seals during assembly.
- Lubricate the NEW fuel injector O-ring seals with clean engine oil.
- Install the O-ring seals onto the fuel injectors.
- Install a new O-ring seal to the right side of the crossover tube.
- Assemble the crossover tube and bolt to the right fuel rail.

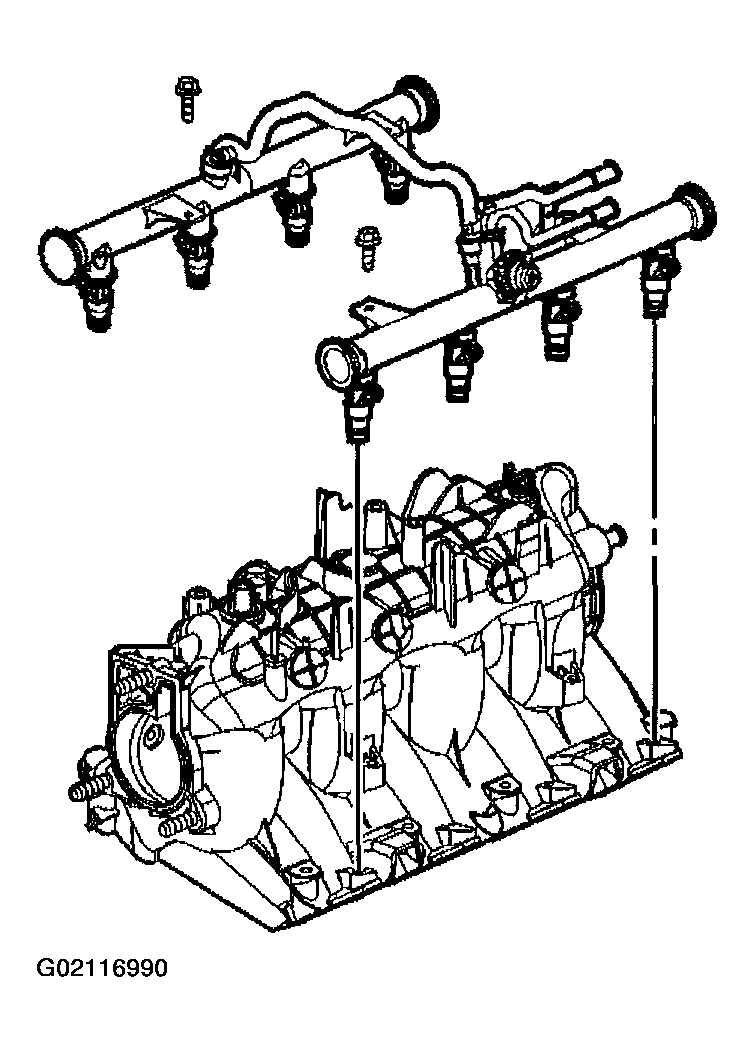

- Install the fuel rail, with fuel injectors, into the intake manifold.
Press evenly on both sides of the fuel rail until all of the injectors are seated in their bores.
- Apply a 5 mm (0.2 in) band of threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the fuel rail bolts. Refer to Sealers, Adhesives And Lubricants . NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the fuel rail bolts.
Tighten
- 7.1. Tighten the fuel rail bolts to 10 N.m (89 lb in).
- 7.2. Tighten the crossover tube right side retaining bolt to 3.8 N.m (34 lb in).

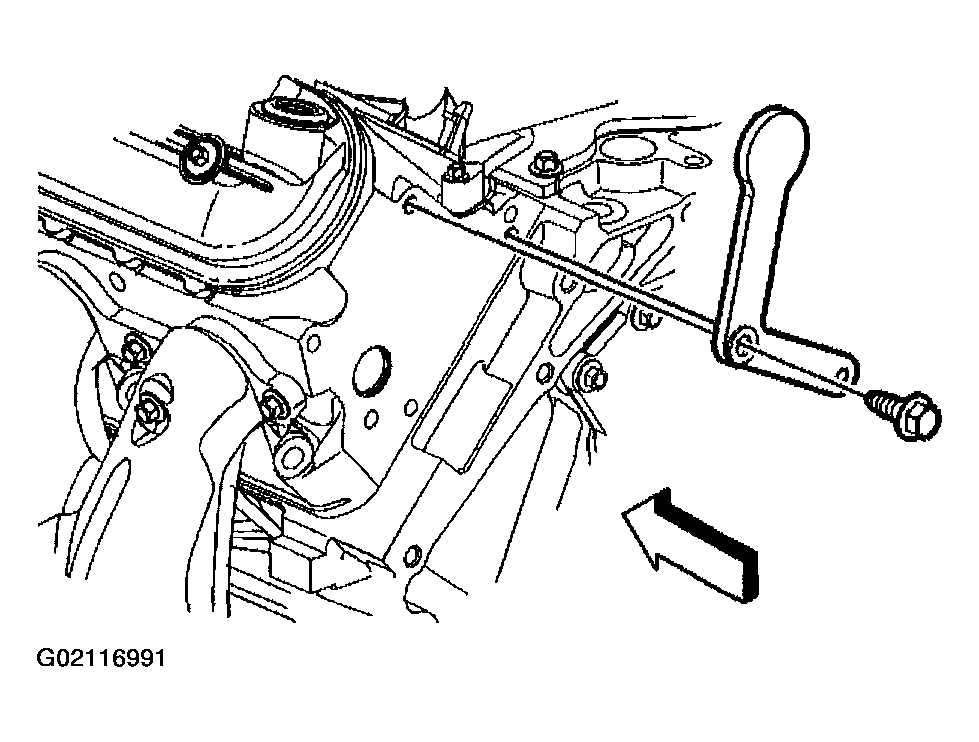

- Install the fuel rail stop bracket and bolt.
Tighten
Tighten the fuel rail stop bracket bolt to 50 N.m (37 lb ft).
