Engine Valley Cover Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knock sensor wire harness.

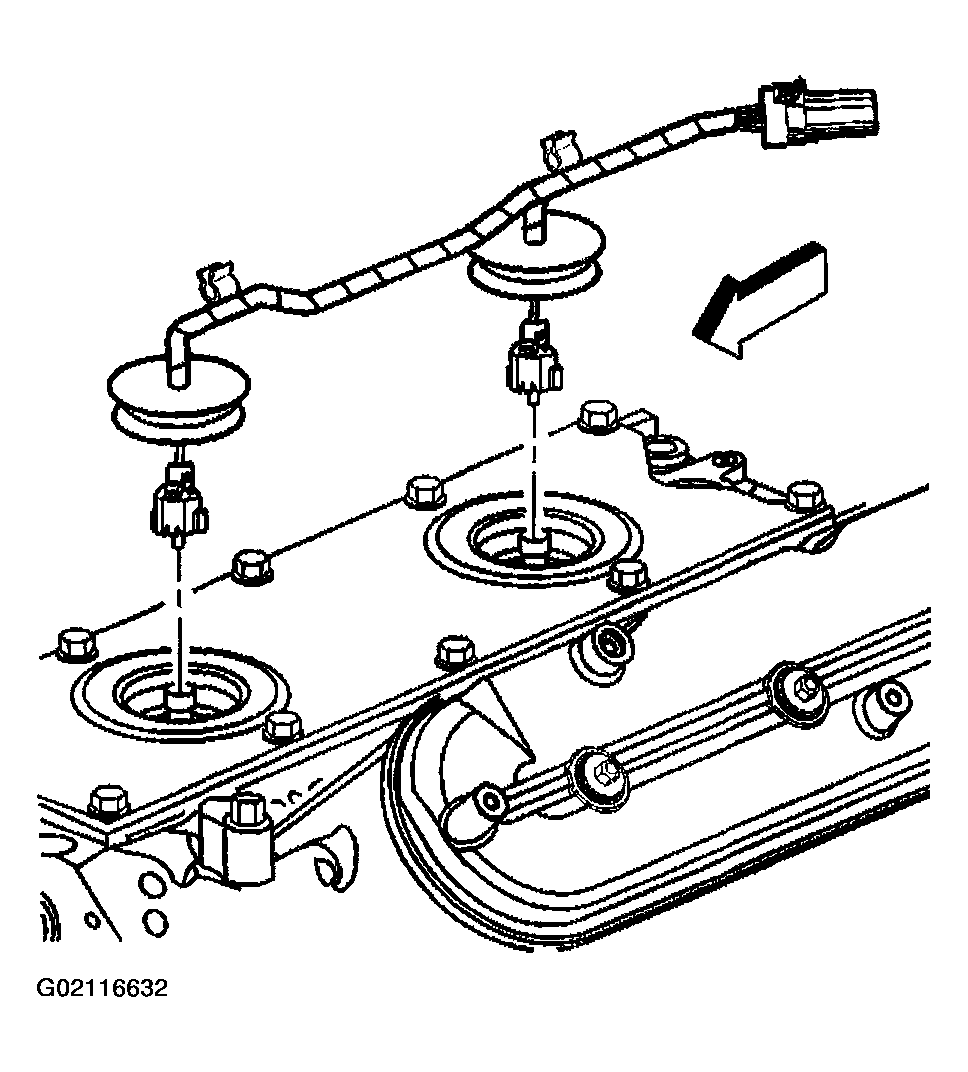

    Fig 1: Removing Knock Sensor Wire Harness
    G02116632Courtesy of GENERAL MOTORS CORP.
  2. Remove the knock sensors.

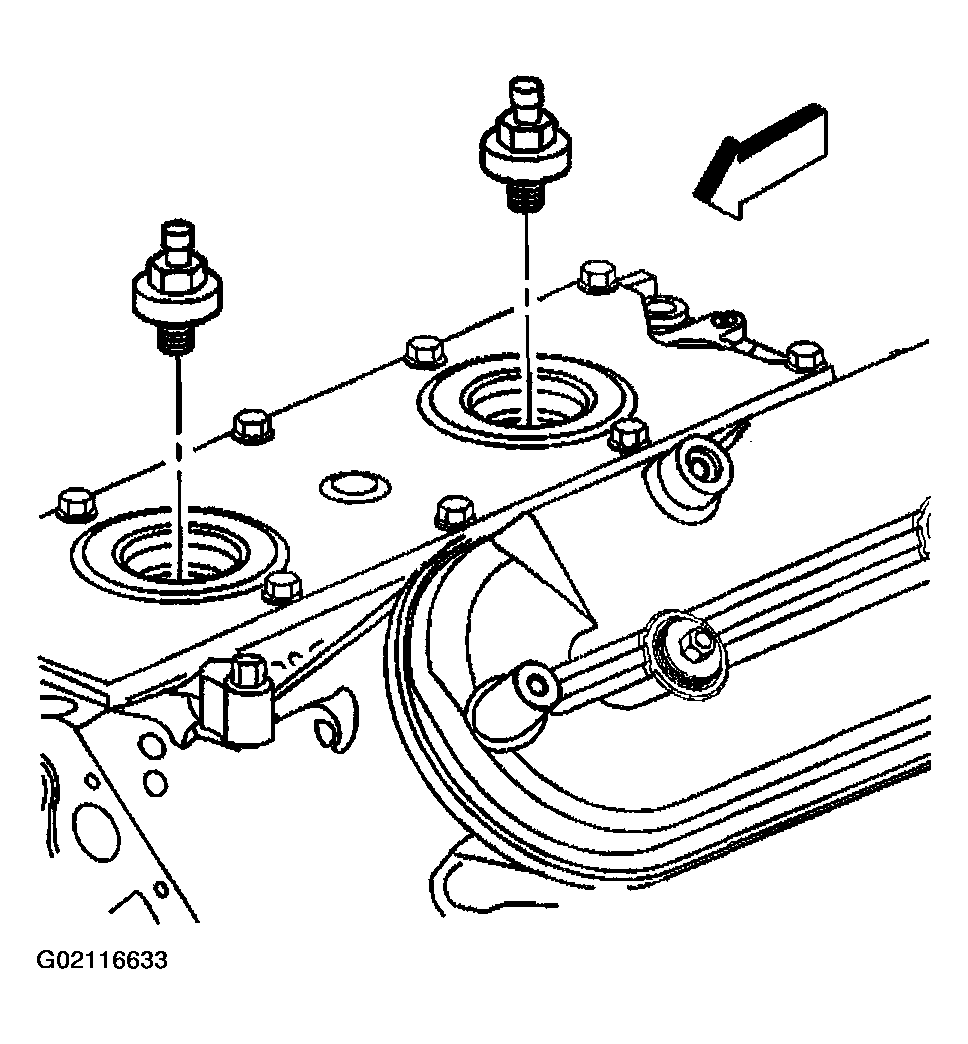

    Fig 2: Removing Knock Sensors
    G02116633Courtesy of GENERAL MOTORS CORP.
  3. Remove the valley cover bolts.
  4. Remove the valley cover and gasket.
  5. Discard the valley cover gasket.

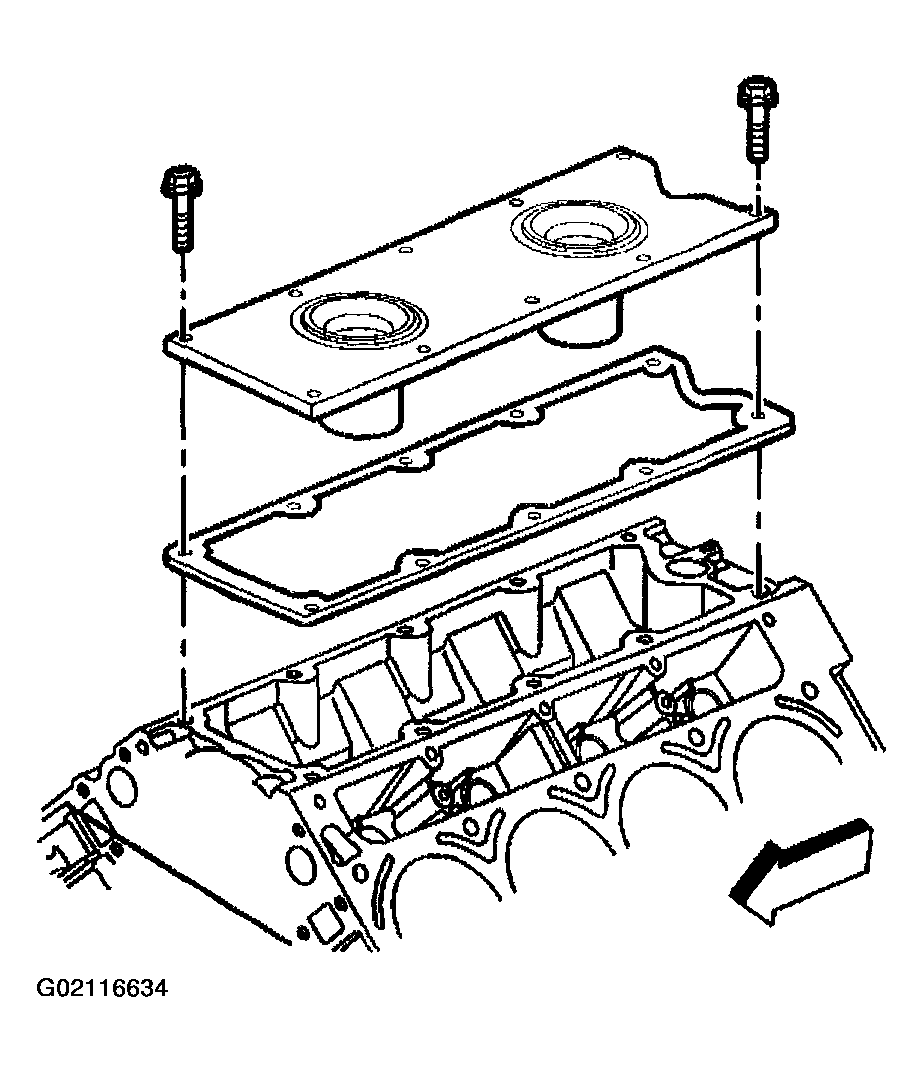

    Fig 3: Removing Valley Cover, Gaskets & Bolts
    G02116634Courtesy of GENERAL MOTORS CORP.
  6. Remove the knock sensor oil seals (1) from the cover (2).
    Fig 4: Removing Knock Sensor Oil Seals From Cover
    G02116635Courtesy of GENERAL MOTORS CORP.
