Engine Flywheel Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important:
- The flywheel does not use a locating pin for alignment, and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.
- Certain applications, the 4.8L manual transmission and all 6.0L, require a spacer and longer bolts for proper flywheel position.

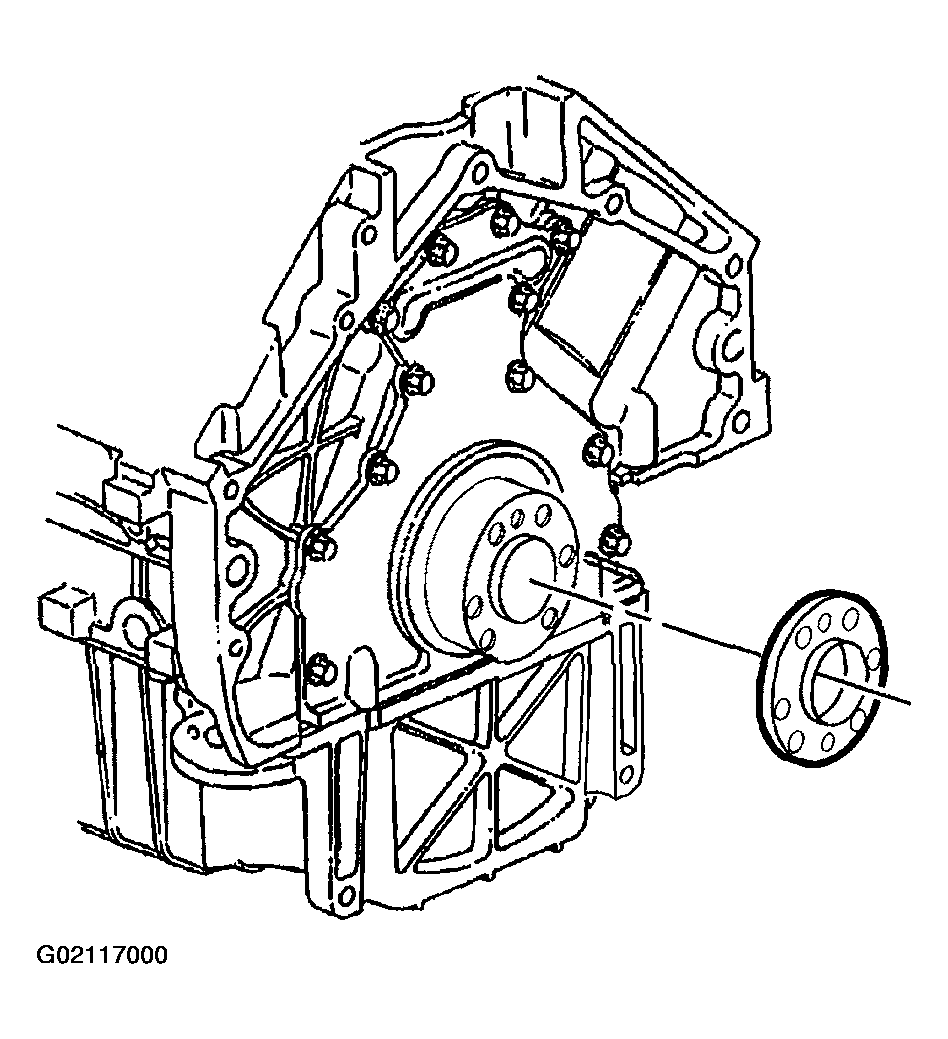

- Install the spacer, if applicable, onto the rear of the crankshaft.
A longer flywheel bolt must be used on applications using a flywheel spacer.

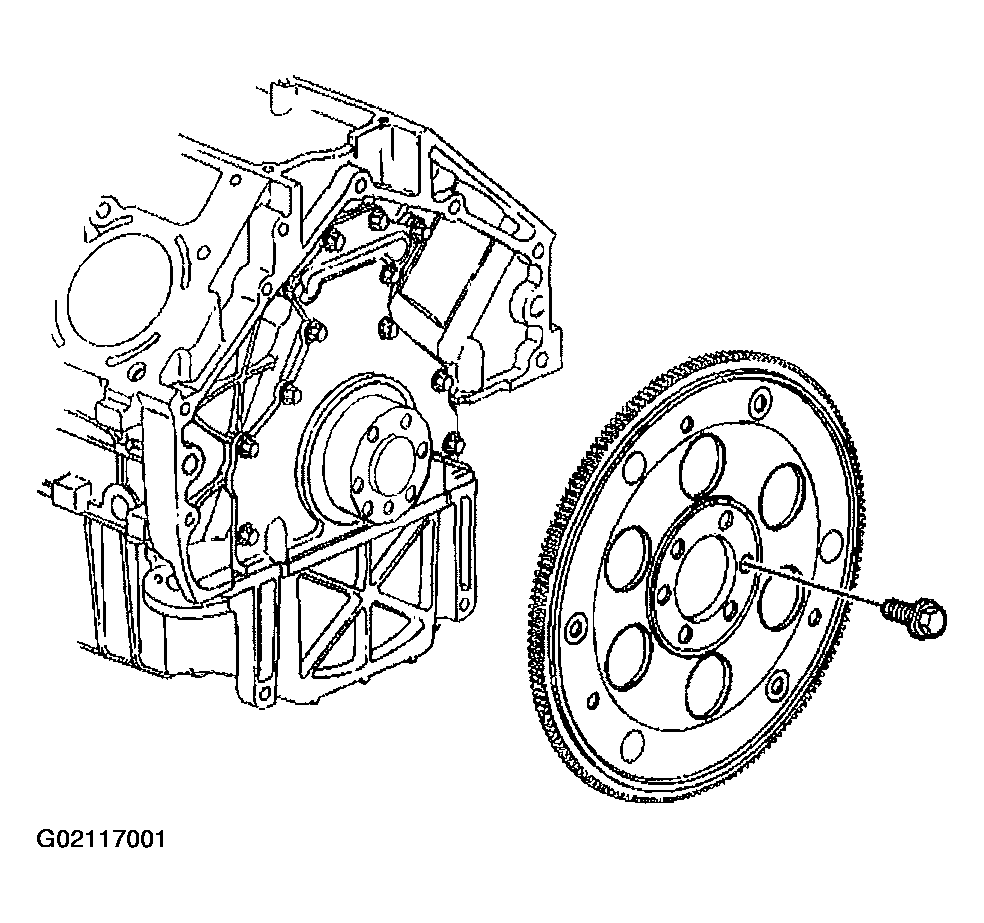

- Install the automatic transmission engine flywheel to the crankshaft, if applicable.
Important: A longer flywheel bolt must be used on applications using a flywheel spacer.
- Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the flywheel bolts.
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices. - Install the engine flywheel bolts.
Tighten

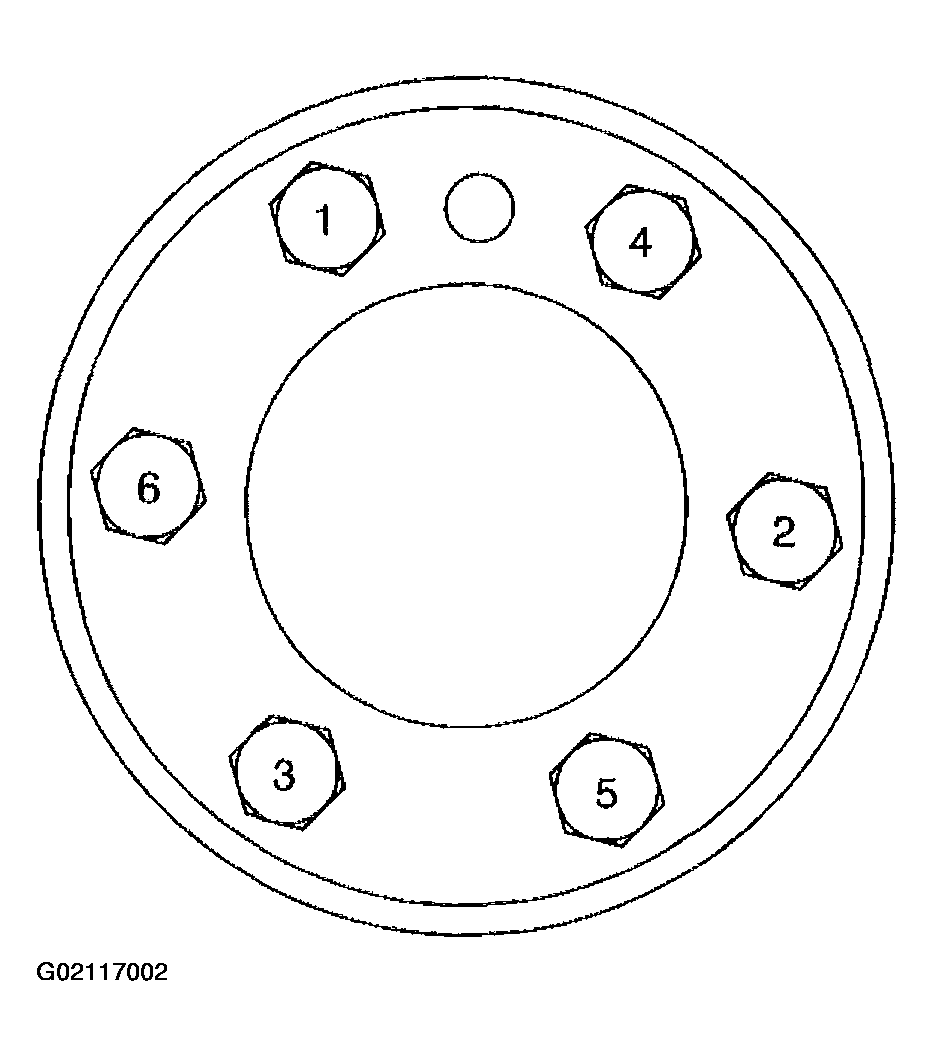

- 4.1. Tighten the engine flywheel bolts first pass in sequence to 20 N.m (15 lb ft).
- 4.2. Tighten the engine flywheel bolts second pass in sequence to 50 N.m (37 lb ft).
- 4.3. Tighten the engine flywheel bolts final pass in sequence to 100 N.m (74 lb ft).
