Cylinder Head Installation - Left

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A Torque Angle Meter
J 42385-100 Thread Repair Kit

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.

NOTE: Clean all dirt, debris, and coolant from the engine block cylinder head bolt holes. Failure to remove all foreign material may result in damaged threads, improperly tightened fasteners or damage to components.

Important:

Do not use the cylinder head bolts again. Install NEW cylinder head bolts during assembly.
Do not use any type sealant on the cylinder head gasket, unless specified.
The cylinder head gaskets must be installed in the proper direction and position.

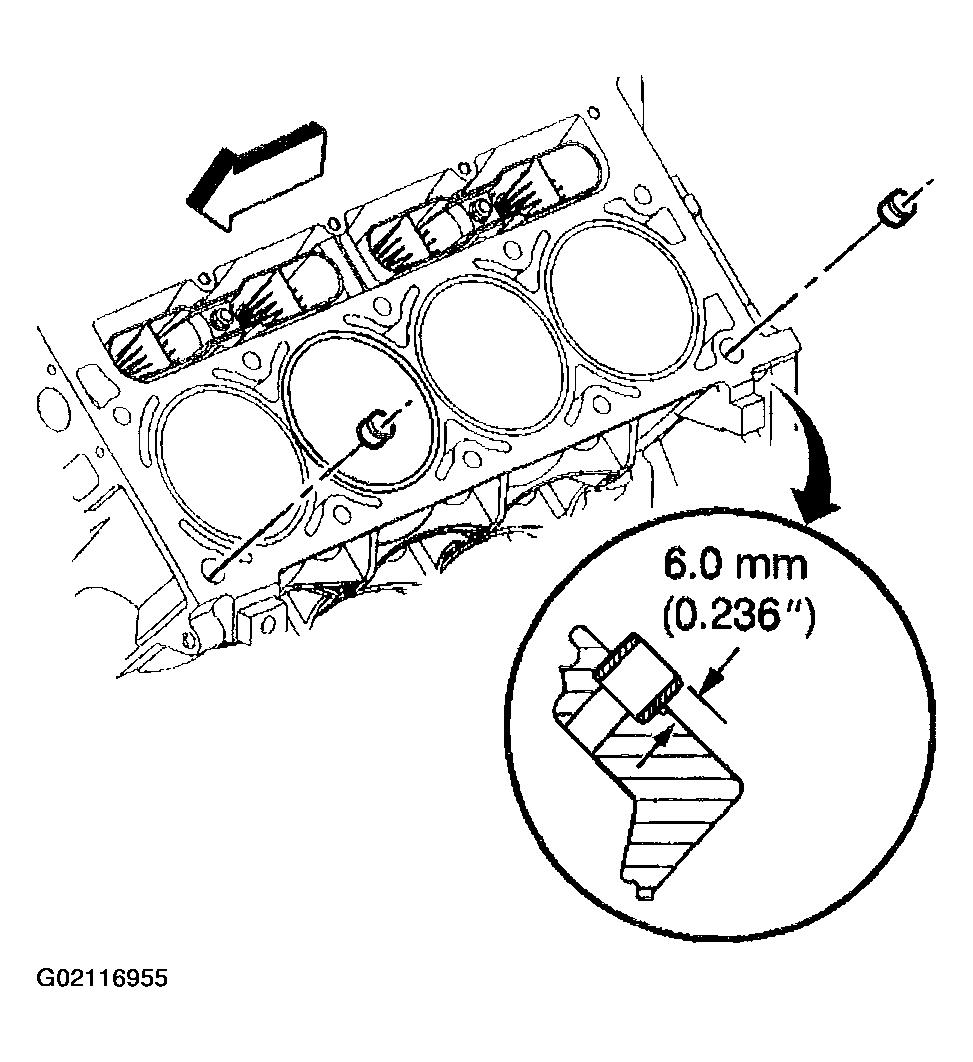

Fig 1: Installing Cylinder Head Bolts During Assembly (Left)
Courtesy of GENERAL MOTORS CORP.

Clean the engine block cylinder head bolt holes, if required.
Thread repair tool J 42385-107 may be used to clean the threads of old threadlocking material.
Spray cleaner GM P/N 12346139 (Canadian P/N 10953463), GM P/N 12377981 (Canadian P/N 10953463) or equivalent into the hole.
Clean the cylinder head bolt holes with compressed air.
Check the cylinder head locating pins for proper installation.
Important: When properly installed, the tab on the left cylinder head gasket will be located left of center or closer to the front of the engine.
Install the NEW left cylinder head gasket onto the locating pins.

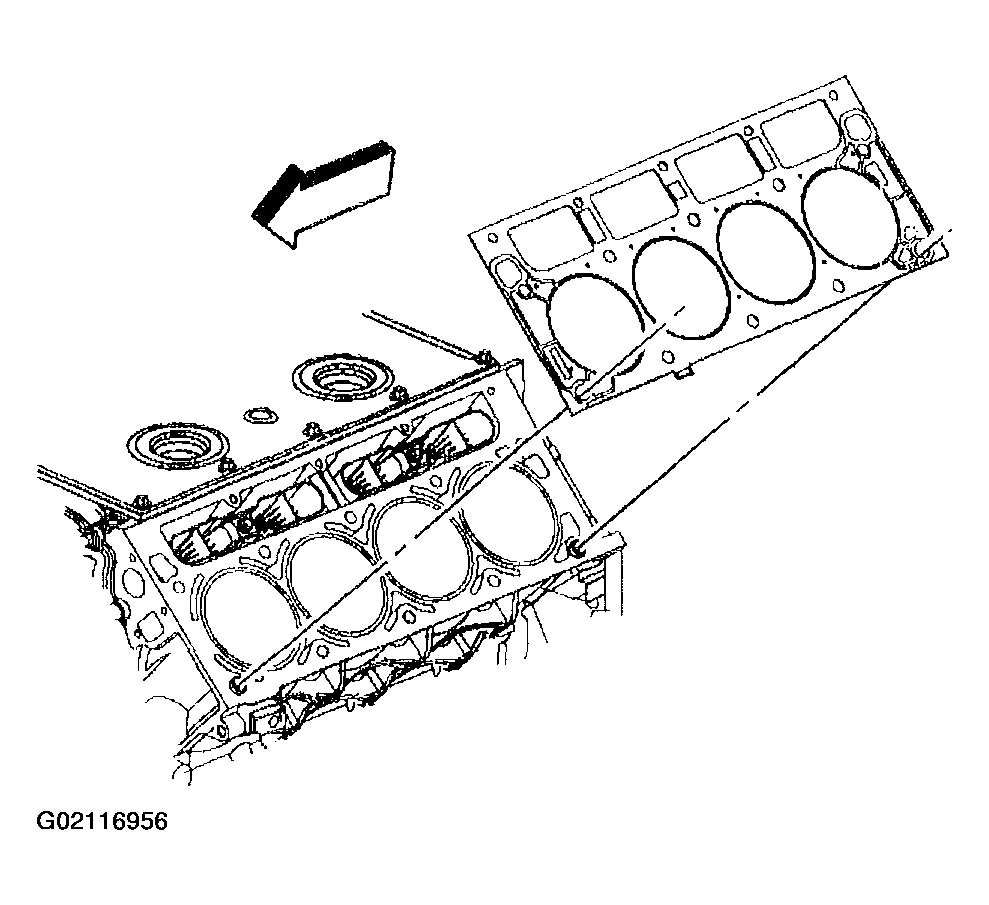

Fig 2: Installing Left Cylinder Head Gasket Onto Locating Pins (Left)
Courtesy of GENERAL MOTORS CORP.
Install the cylinder head onto the locating pins and the gasket.
Install the NEW cylinder head bolts.

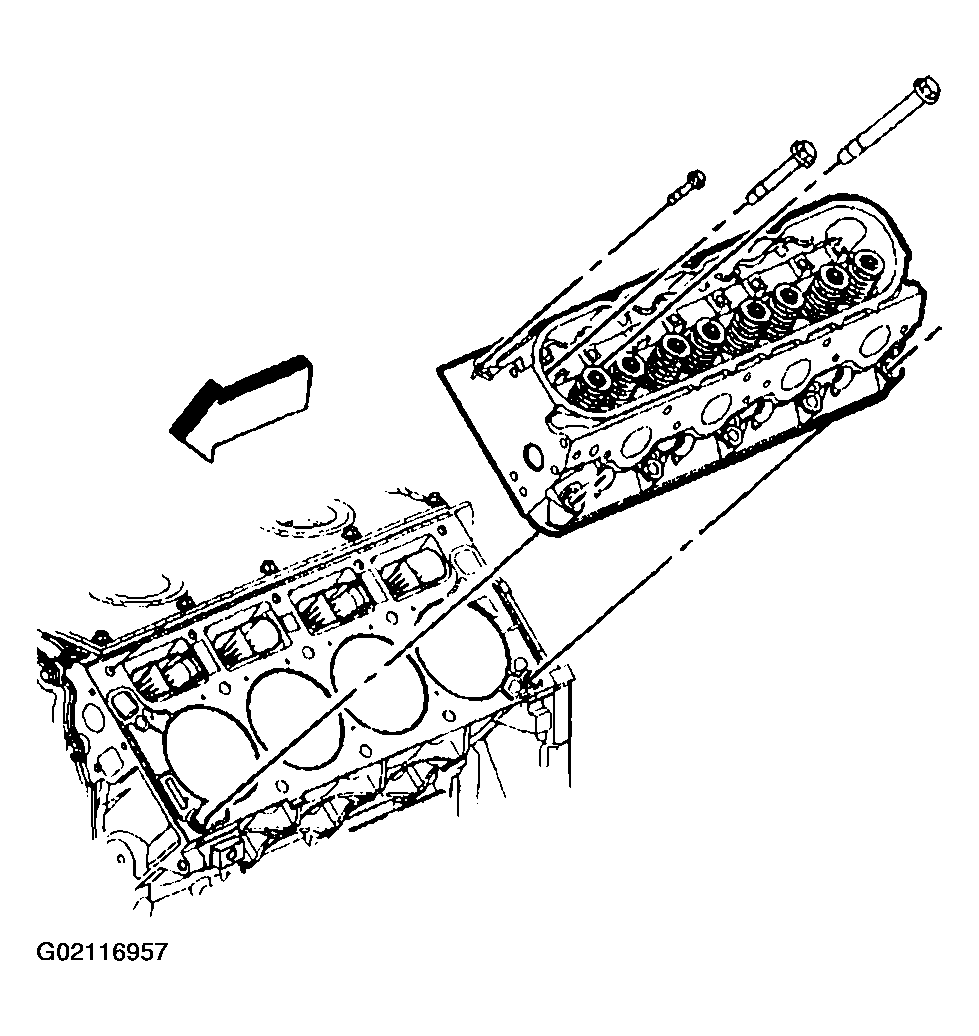

Fig 3: Installing Cylinder Head Bolts (Left)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten the cylinder head bolts.
Tighten
1. 8.1. Tighten the M11 cylinder head bolts a first pass in sequence to 30 N.m (22 lb ft).
2. 8.2. Tighten the M11 cylinder head bolts a second pass in sequence to 90 degrees using the J 36660-A .
3. 8.3. Tighten the M11 cylinder head bolts (1,2,3,4,5,6,7,8) to 90 degrees and the M11 cylinder head bolts (9 and 10) to 50 degrees a final pass in sequence to using the J 36660-A .
4. 8.4. Tighten the M8 cylinder head bolts (11,12,13,14,15) to 30 N.m (22 lb ft). Begin with the center bolt (11) and alternating side-to-side, work outward tightening all of the bolts.
Fig 4: Tightening Cylinder Head Bolts (Left)
Courtesy of GENERAL MOTORS CORP.
The cylinder head gasket displacement can be verified by markings visible on the top side of the left gasket locating tab.
Some 4.8/5.3L head gaskets may have 48 or 53 stamped onto the locating tab.

Some 6.0L head gaskets may have 60 stamped onto the locating tab.

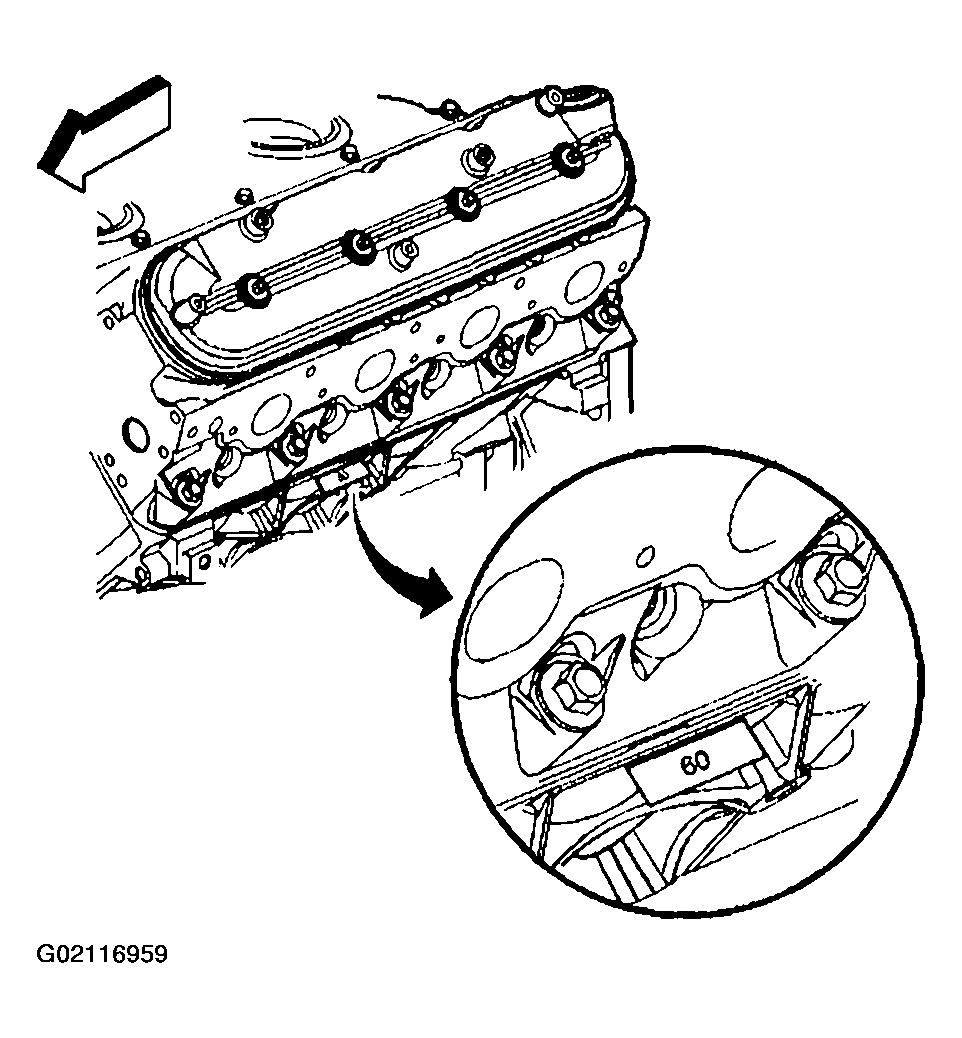

Fig 5: Cylinder Head Gasket Displacement Can Be Verified By Markings Visible On Top Side Of Left Gasket Locating Tab (Left)
Courtesy of GENERAL MOTORS CORP.
