Camshaft Bearing Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 33049 Camshaft Bearing Service Set

Important: A loose camshaft bearing may be caused by an enlarged, out of round or damaged engine block bearing bore.

Prior to bearing removal, inspect the camshaft bearings for loose fit in the engine block bearing bores.
Repair or replace the components as required.

Fig 1: Installing Camshaft Bearing
Courtesy of GENERAL MOTORS CORP.
Select the expanding driver (4-8) and washer (2 or 3) from the J 33049 . Refer to CAMSHAFT BEARING REMOVAL .
Assemble the tool.

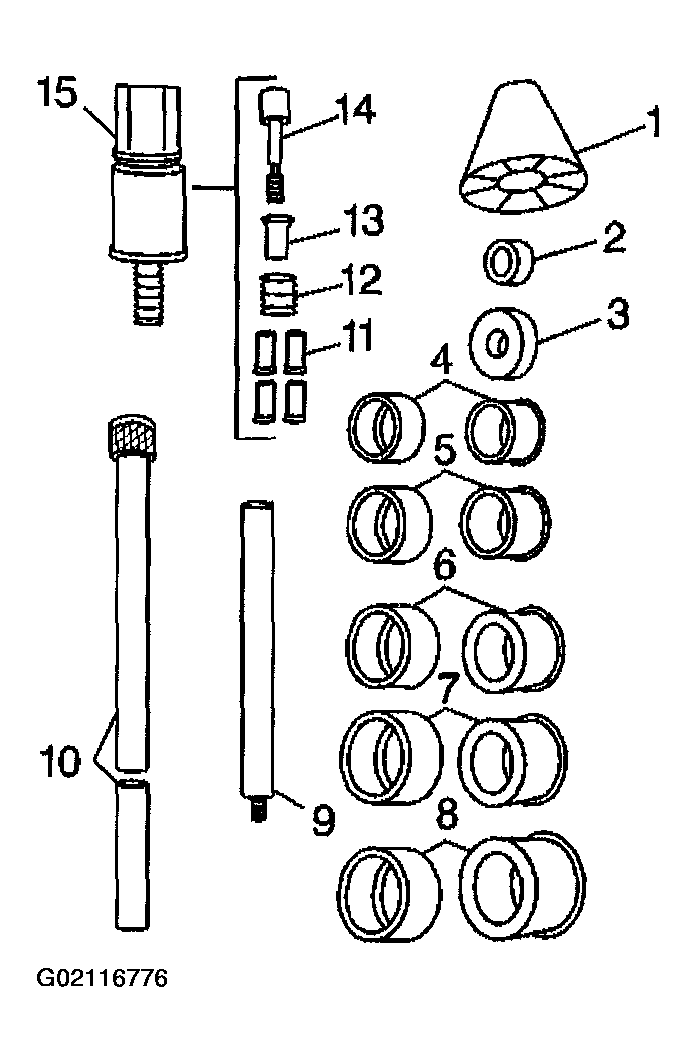

Fig 2: Identifying Camshaft Bearing Service Set (J 33049) Components
Courtesy of GENERAL MOTORS CORP.
Insert the tool through the front of the engine block and into the bearing.
Tighten the expander assembly nut until snug.
Push the guide cone into the front camshaft bearing to align the tool.
Drive the bearing from the block bore.
Important: To remove the front camshaft bearing, operate the tool from the rear of the block using the guide cone in the rear camshaft bearing bore.
Repeat the above procedures to remove the remaining bearings.

Fig 3: Inserting Tool Through Front Of Engine Block
Courtesy of GENERAL MOTORS CORP.
