Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Using the J 45380 , install a NEW output shaft bushing.
1. Install the bushing or the finger section of the J 45380 .
2. Install the finger section to the main body of the J 45380 .
3. Position the bushing and tool to the case.
4. Using a hammer and the J 45380 , install the bushing.

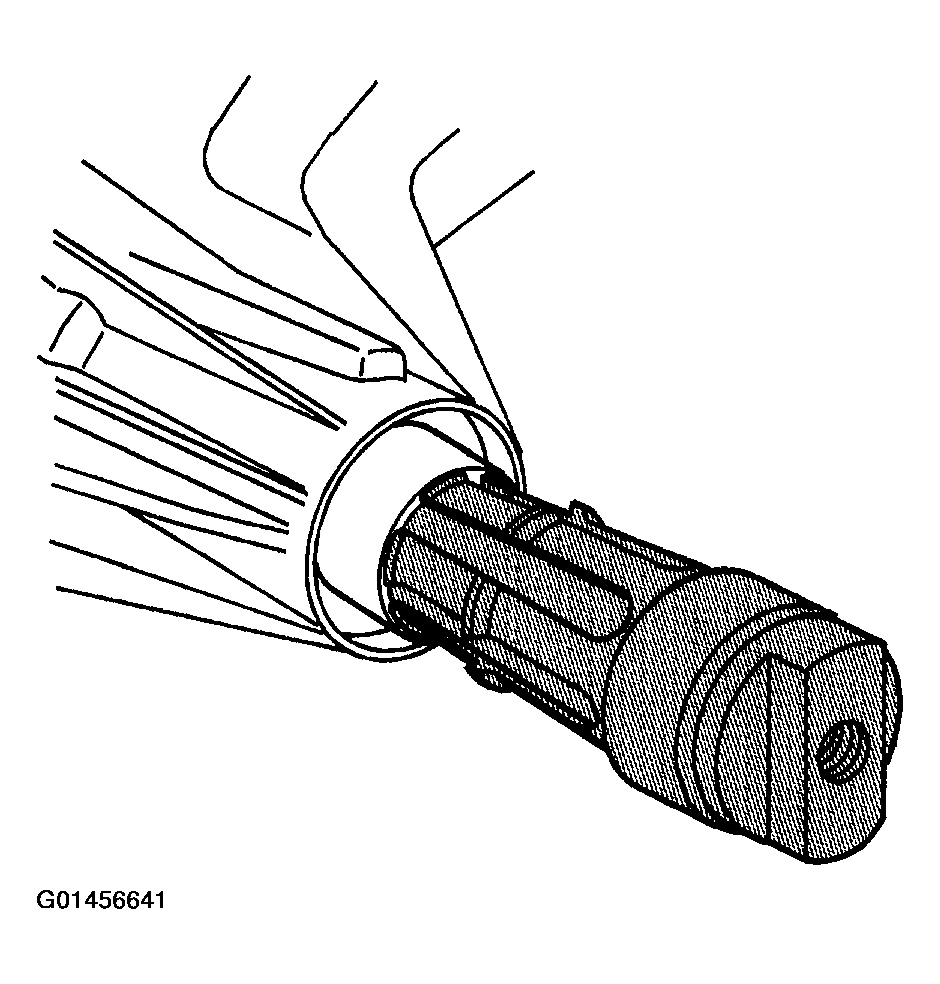

Fig 1: Installing Rear Output Shaft Bushing Using J 45380
Courtesy of GENERAL MOTORS CORP.

Important: Ensure the drain hole on the boot of the rear output shaft seal is facing down toward the ground.
Using the J 37668-A , install a NEW front output shaft seal.
Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- REAR in Propeller Shaft.
Check the fluid level. Add fluid if necessary.
Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .

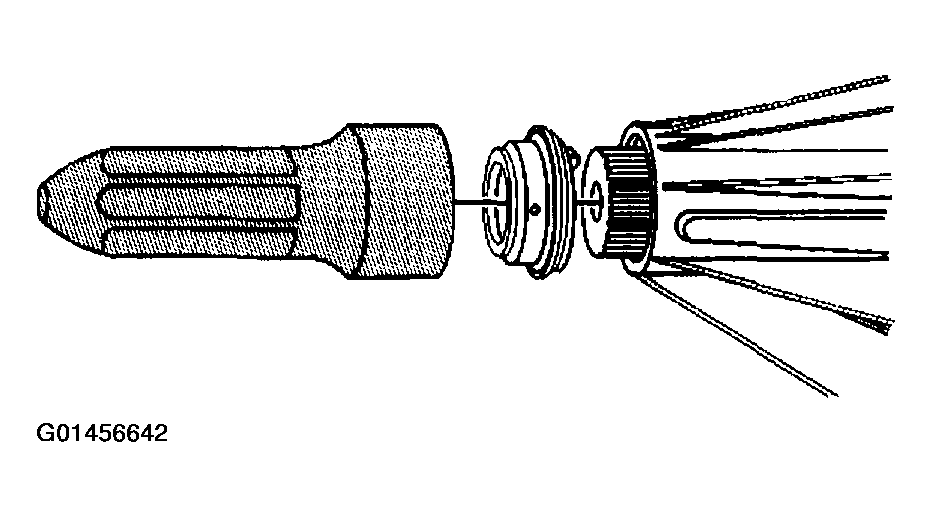

Fig 2: Installing Front Output Shaft Bushing Using J 37668-A
Courtesy of GENERAL MOTORS CORP.
