Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 43484  (2) to the J 8092  (1).
  2. Install the seal onto the J 43484  .
  3. Using the J 43484  (2) and the J 8092  (1), install the seal.
  4. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- FRONT in Propeller Shaft.
  5. Check the fluid level. Add fluid if necessary.
  6. Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT  .

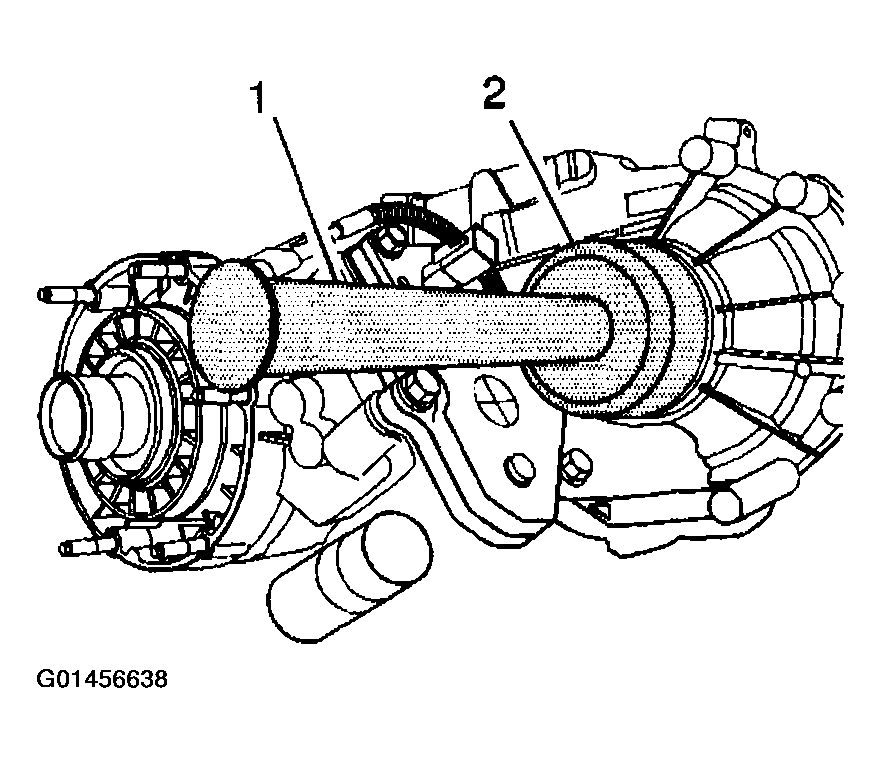

    Fig 1: Installing Seal Using J 42484 & J 8092
    G01456638Courtesy of GENERAL MOTORS CORP.
