Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  When installing the input shaft seal, make sure that the part numbers on the seal are facing outward (away from the body of the transfer case).

  1. Align the transfer case input shaft seal evenly on the input shaft.

    Important:  The input shaft seal should be even with the surface of the transfer case after installation.

  2. Using the J 42738  , install the transfer case input shaft seal.
  3. Install the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT  .
  4. Check the fluid level. Add fluid if necessary.

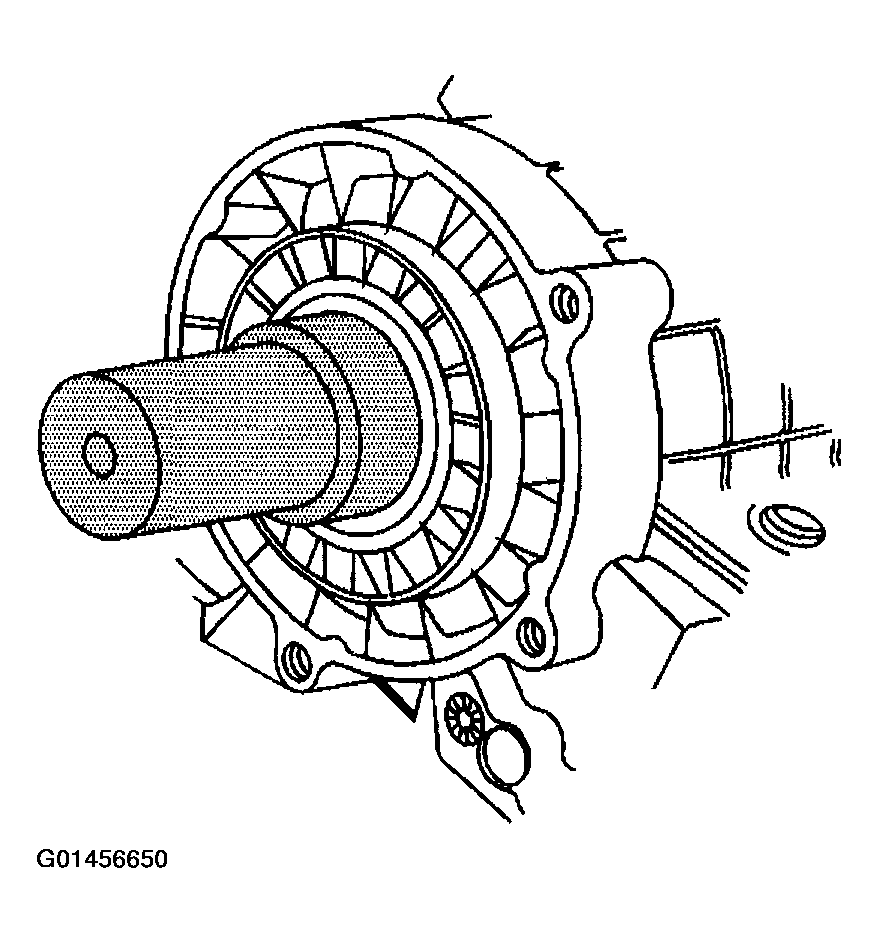

    Fig 1: Installing Input Shaft Seal Using J 42738
    G01456650Courtesy of GENERAL MOTORS CORP.
