Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests the transfer case electrical control of the lamp circuits.
  2. 3. This step helps determine module failures.
  3. 4. This step tests the affected lamp circuit for an open or high resistance.
  4. 5. This step tests the lamp feed circuit for an open or short to ground.

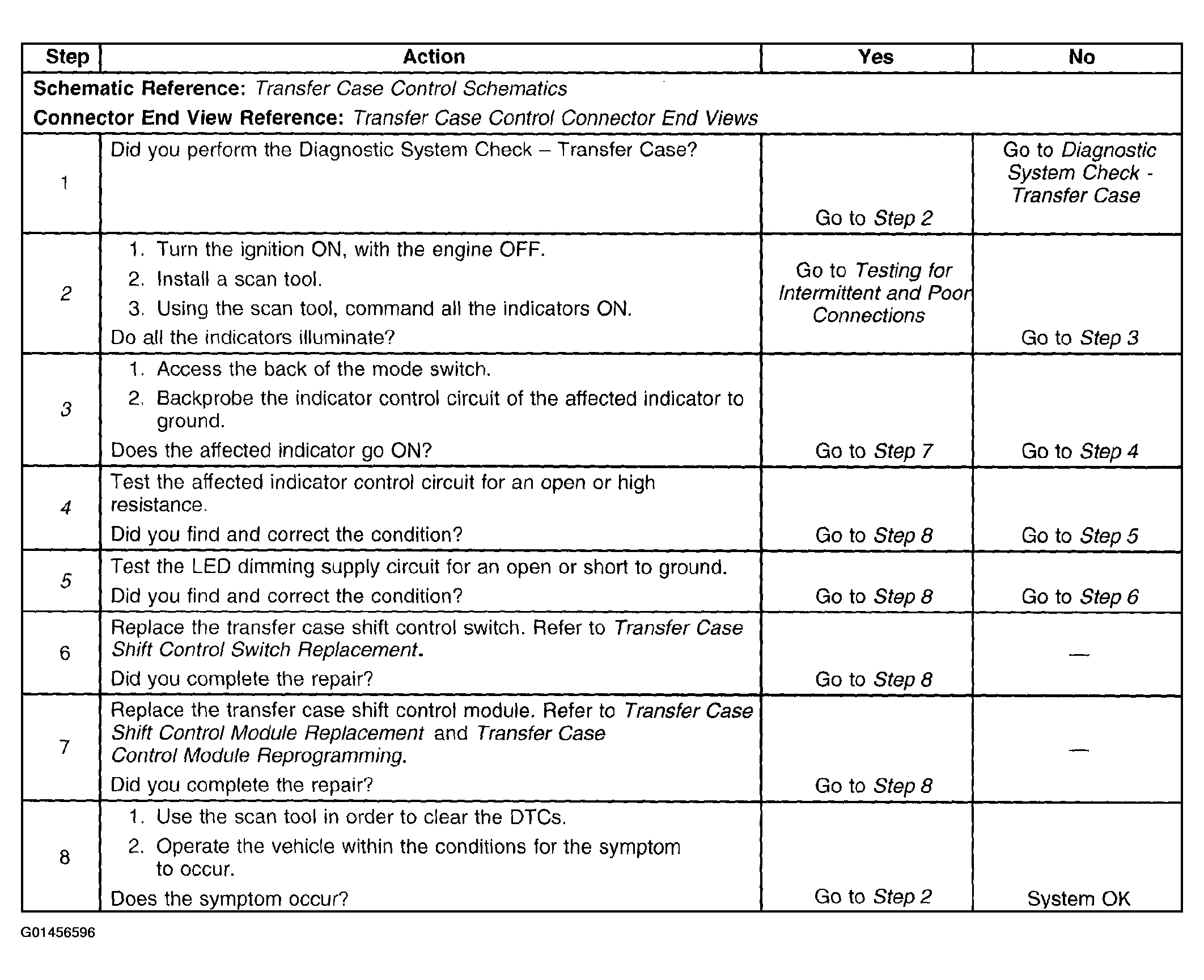

    Fig 1: Diagnostic System Check - Transfer Case Shift Control Switch Indicator Inoperative - One or More
    G01456596Courtesy of GENERAL MOTORS CORP.
