Transfer Case Clunk in 4HI

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

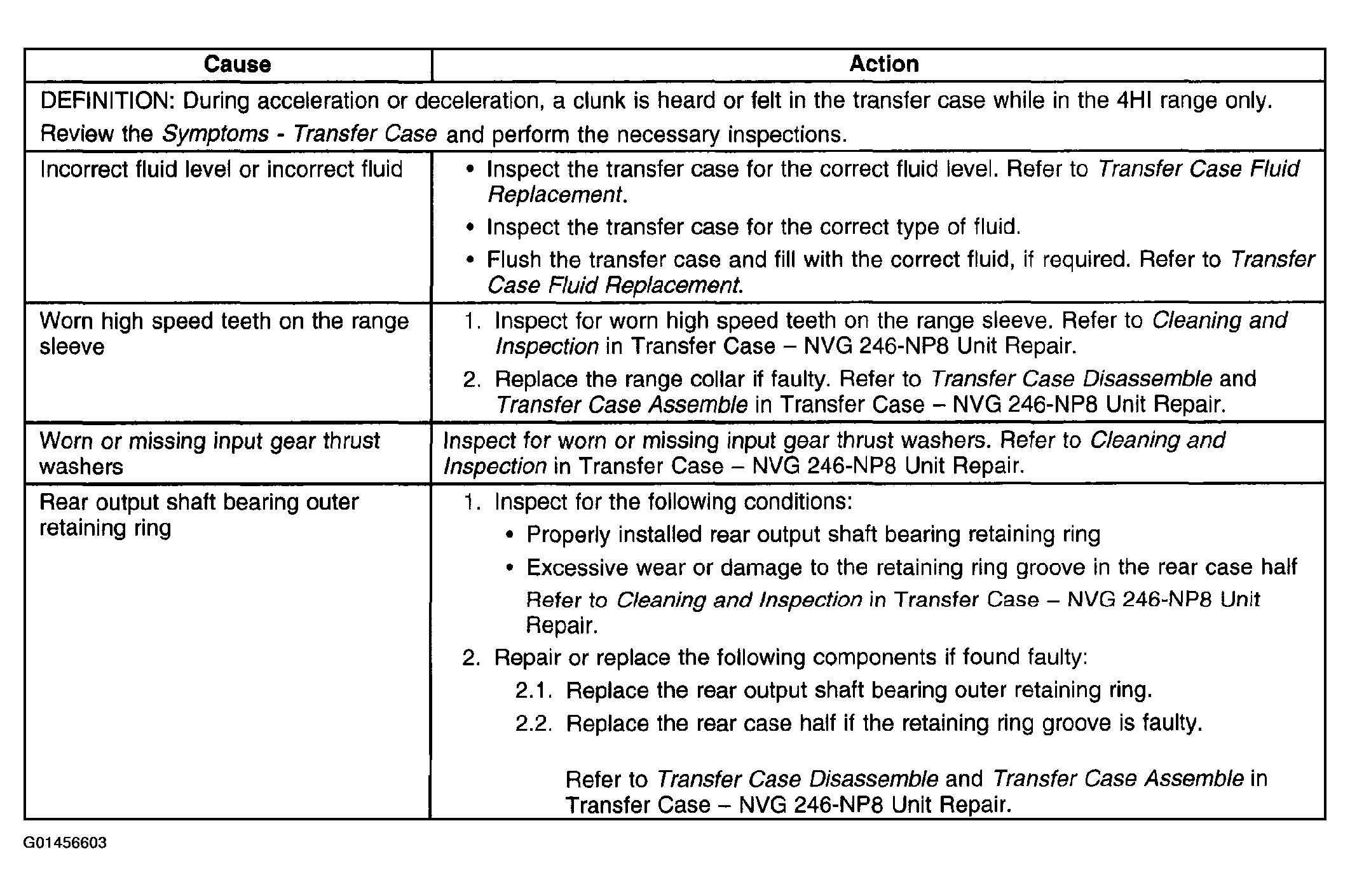

Fig 1: Transfer Case Clunk in 4HI Troubleshooting
G01456603Courtesy of GENERAL MOTORS CORP.
