Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SERVICING THE SIR SYSTEM CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to ZONE 3 in SIR.
  2. Remove the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating the horn plunger 90 degrees.

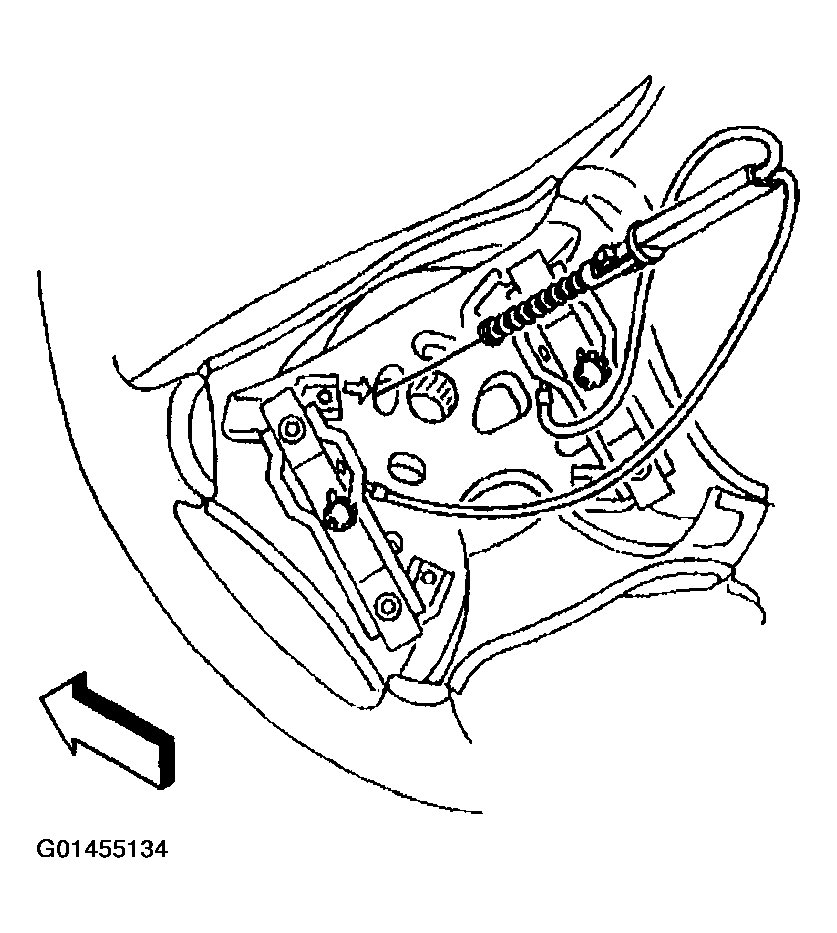

    Fig 1: Removing Horn Switch
    G01455134Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the captured screws (1,4) to the horn contact plate (2) from the steering wheel (3).
  5. Remove the horn switch (2) from the steering wheel (3).

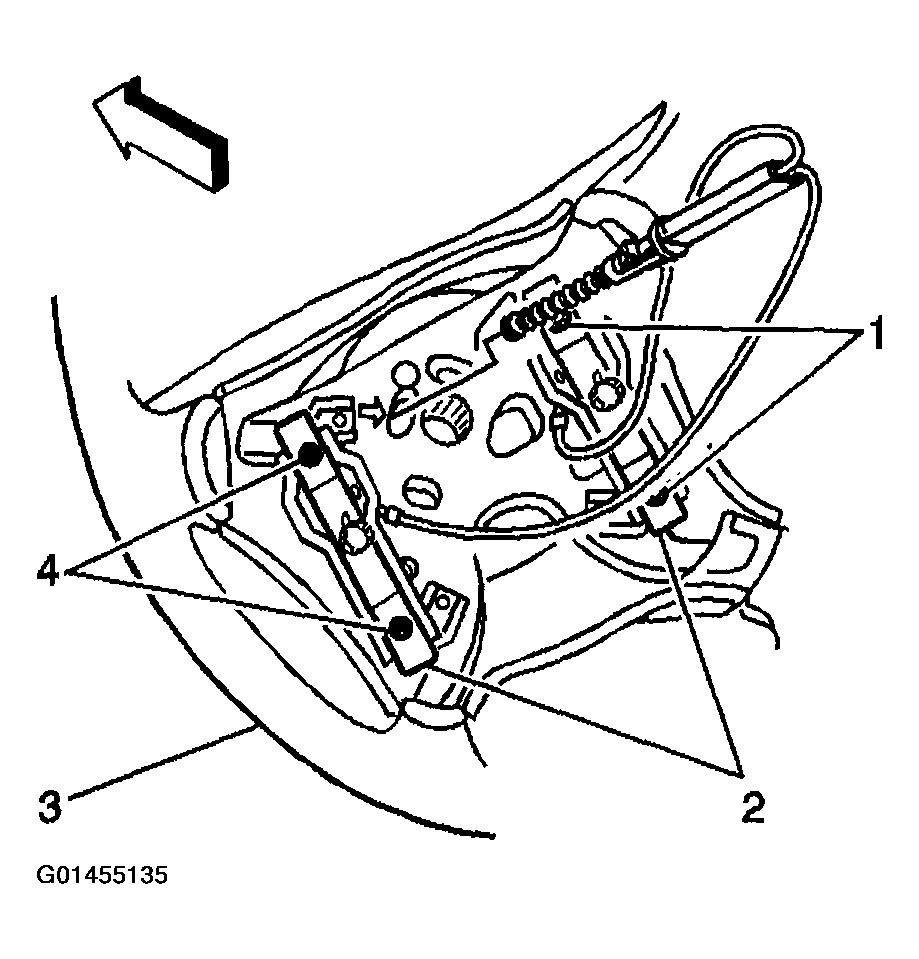

    Fig 2: Disconnecting Captured Screws To Horn Contact Plate
    G01455135Courtesy of GENERAL MOTORS CORP.
