Memory Steer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

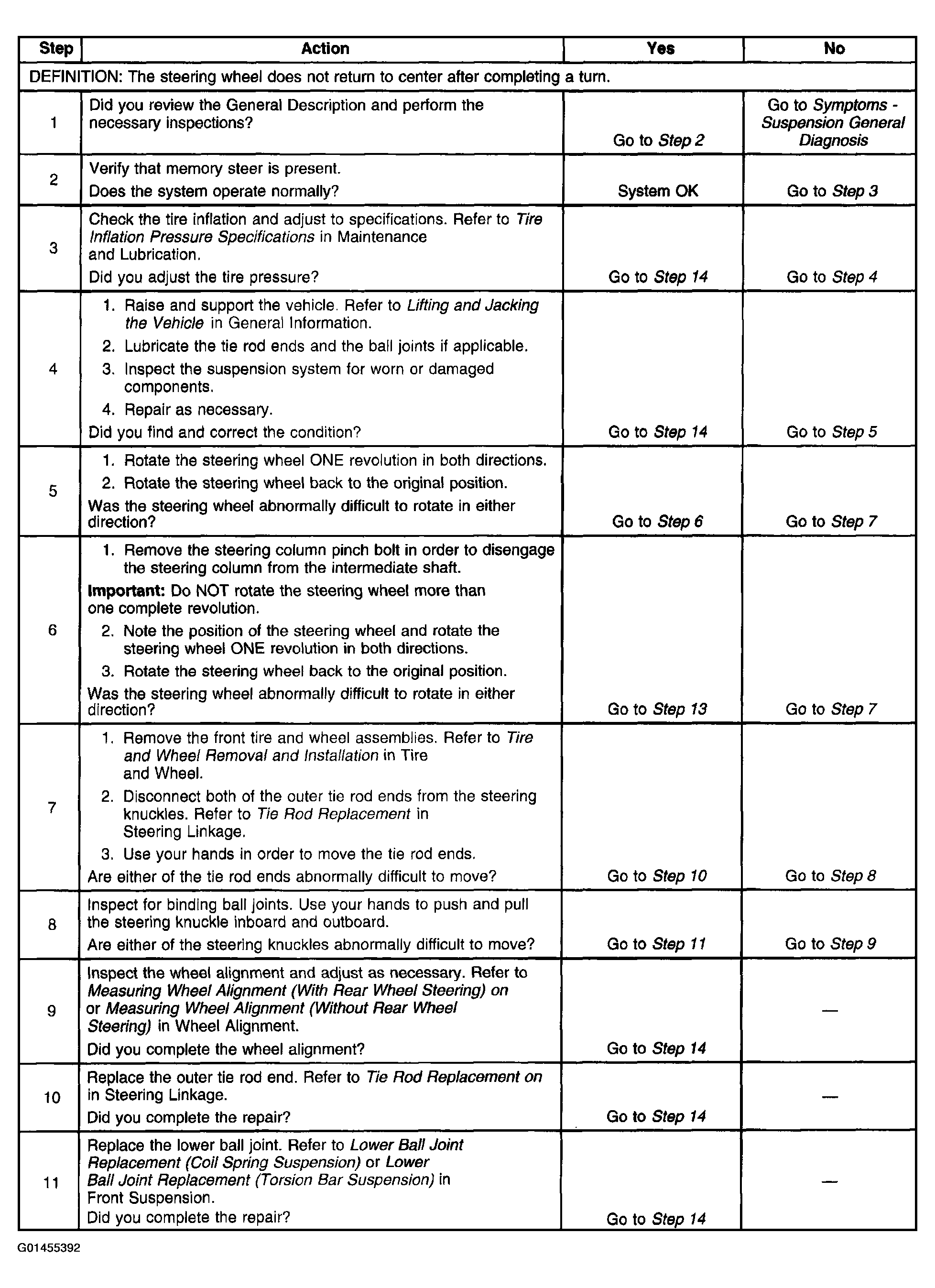

Fig 1: Diagnosis System Check - Memory Steer Table (Steps 1-11)
G01455392Courtesy of GENERAL MOTORS CORP.

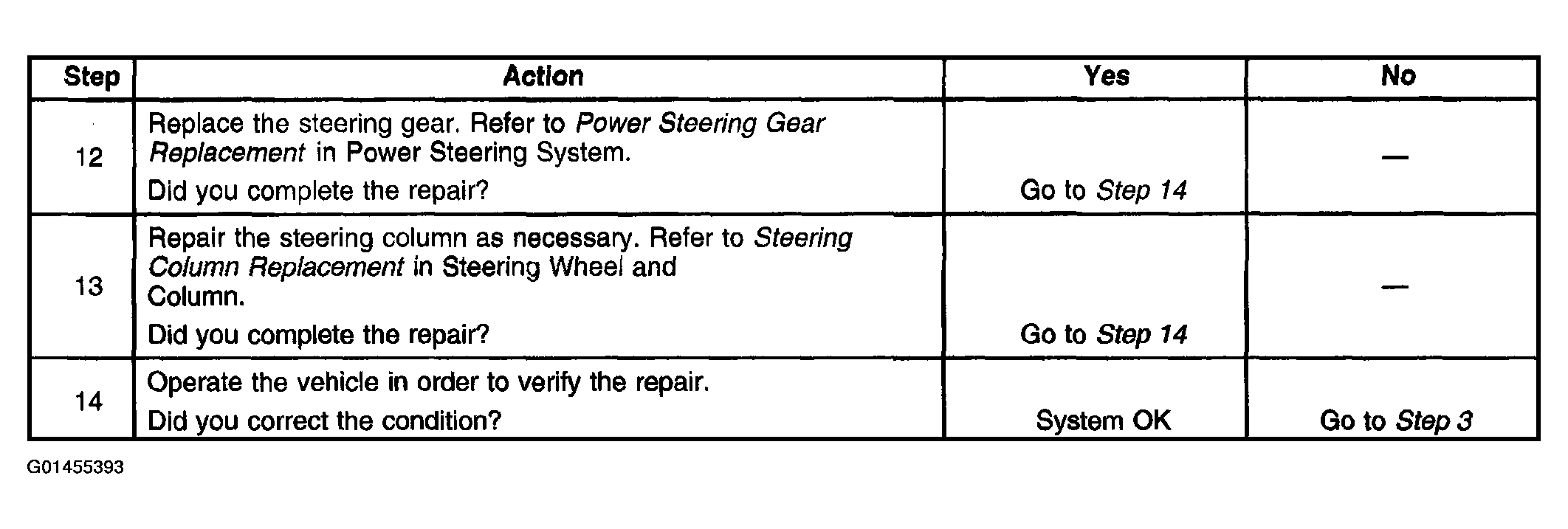

Fig 2: Diagnosis System Check - Memory Steer Table (Steps 12-14)
G01455393Courtesy of GENERAL MOTORS CORP.
