Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel and tire assembly from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the sensor harness connector from the vehicle harness connector.
  4. Remove the bolt from the electronic suspension control (ESC) sensor link bracket.
  5. Spread the bracket open until the bracket can be removed from the upper control arm.
  6. Remove the bolts from the frame.
  7. Remove the position sensor from the vehicle.

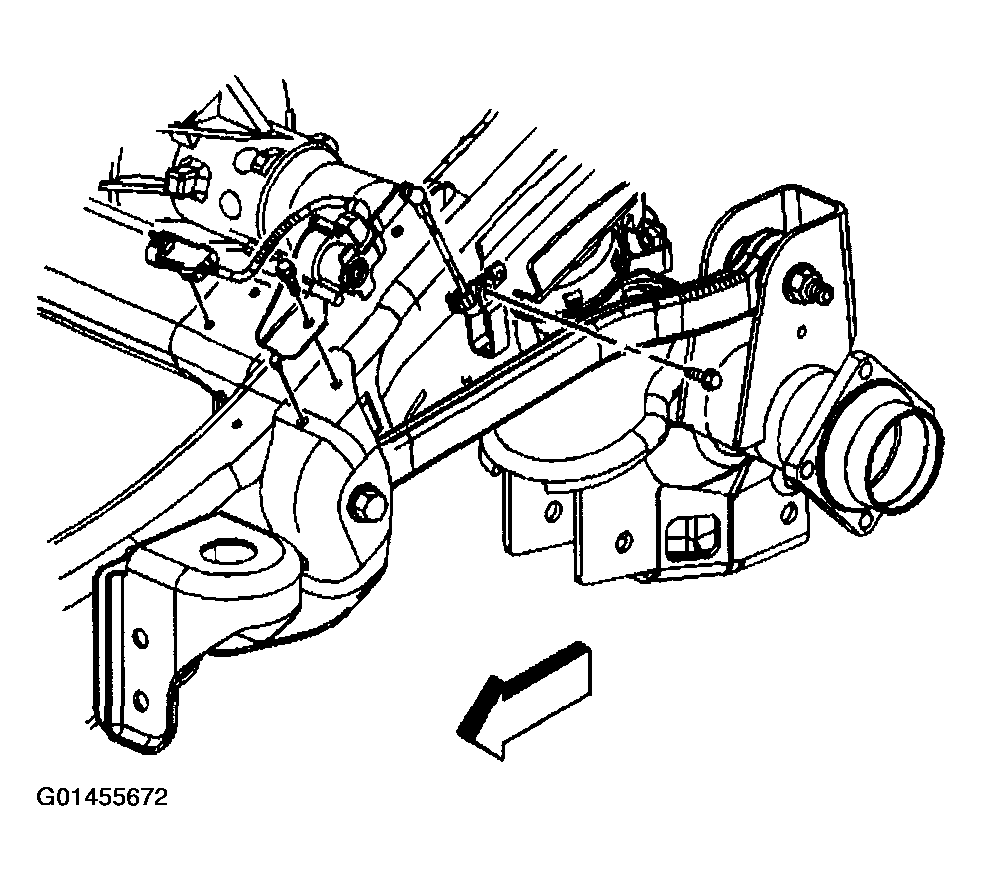

    Fig 1: Removing Electronic Suspension Left Rear Position Sensor (15 Series)
    G01455672Courtesy of GENERAL MOTORS CORP.
