Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the position sensor on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts to the frame.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

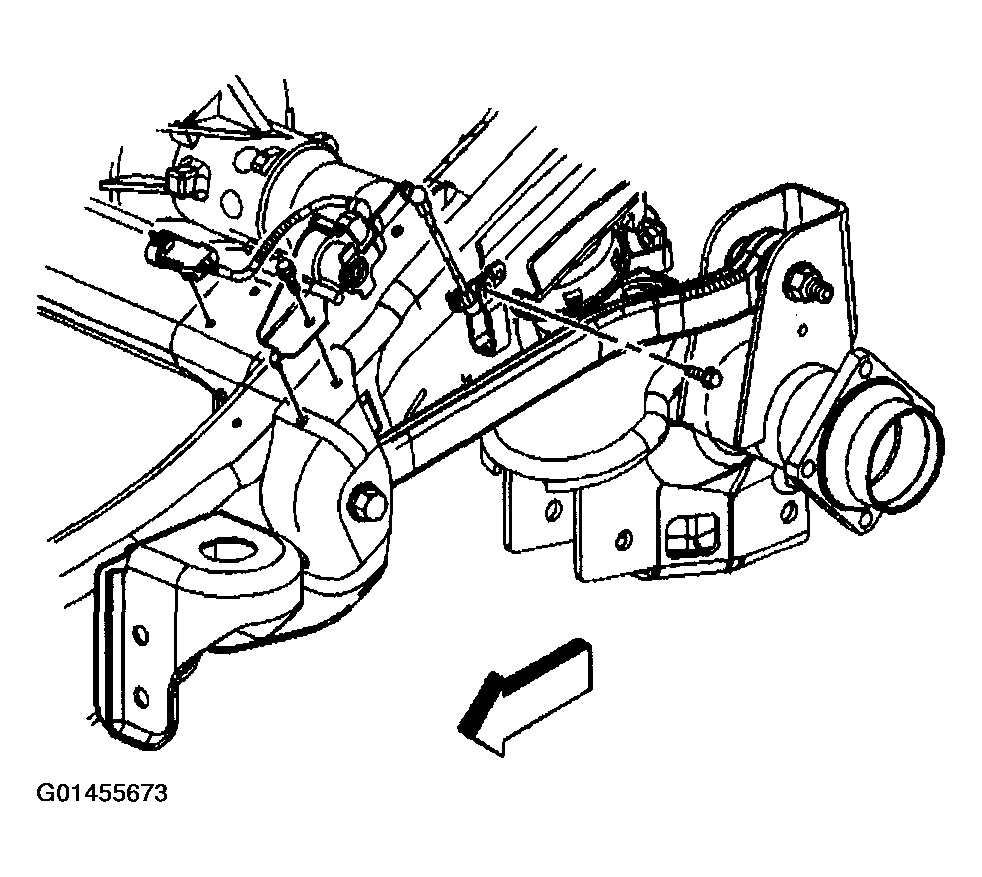

    Fig 1: Installing Electronic Suspension Left Rear Position Sensor (15 Series)
    G01455673Courtesy of GENERAL MOTORS CORP.
  3. Close the bracket around the upper control arm making sure the bracket rests between the locating stops.
  4. Install the bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

  5. Connect the sensor harness connector to the vehicle harness connector.
  6. Install the wheel and tire assembly to the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  7. Lower the vehicle.
    Fig 2: Making Sure Bracket Rests Between Locating Stops
    G01455674Courtesy of GENERAL MOTORS CORP.
