Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the sensor harness connector from the vehicle harness connector.
  3. Remove the wheel speed sensor wire from the electronic suspension control (ESC) sensor bracket.
  4. Remove the ESC sensor link bracket bolt from the upper control arm.
  5. Remove the bolt from the frame.
  6. Remove the position sensor from the vehicle.

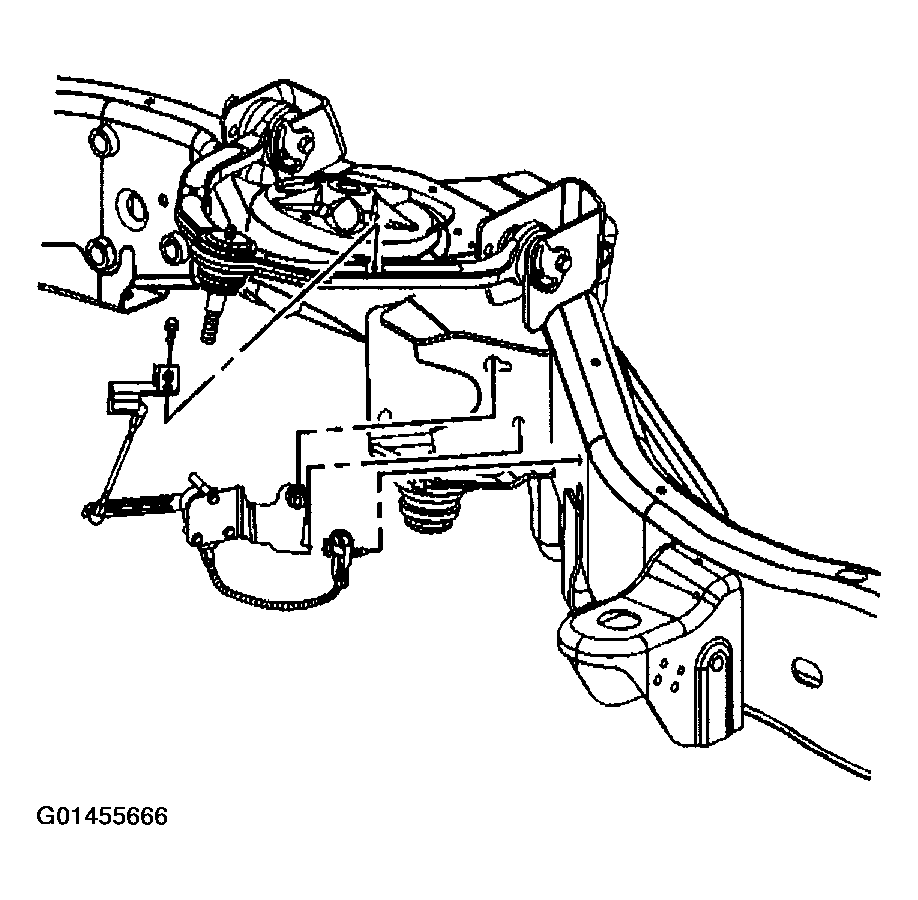

    Fig 1: Removing Electronic Suspension Front Position Sensor (25 Series 2WD)
    G01455666Courtesy of GENERAL MOTORS CORP.
