Steering Wheel Position Sensor - Digital Signal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

3 outputs used - Phase A, Phase B, Index Marker Pulse
Phase A & Phase B
Offset PWM wave forms created when turning the wheel
Index marker pulse
Signal is present only when steering wheel is within 10 degrees either side of center

Output is used to determine Direction of Rotation and Rate of Rotation

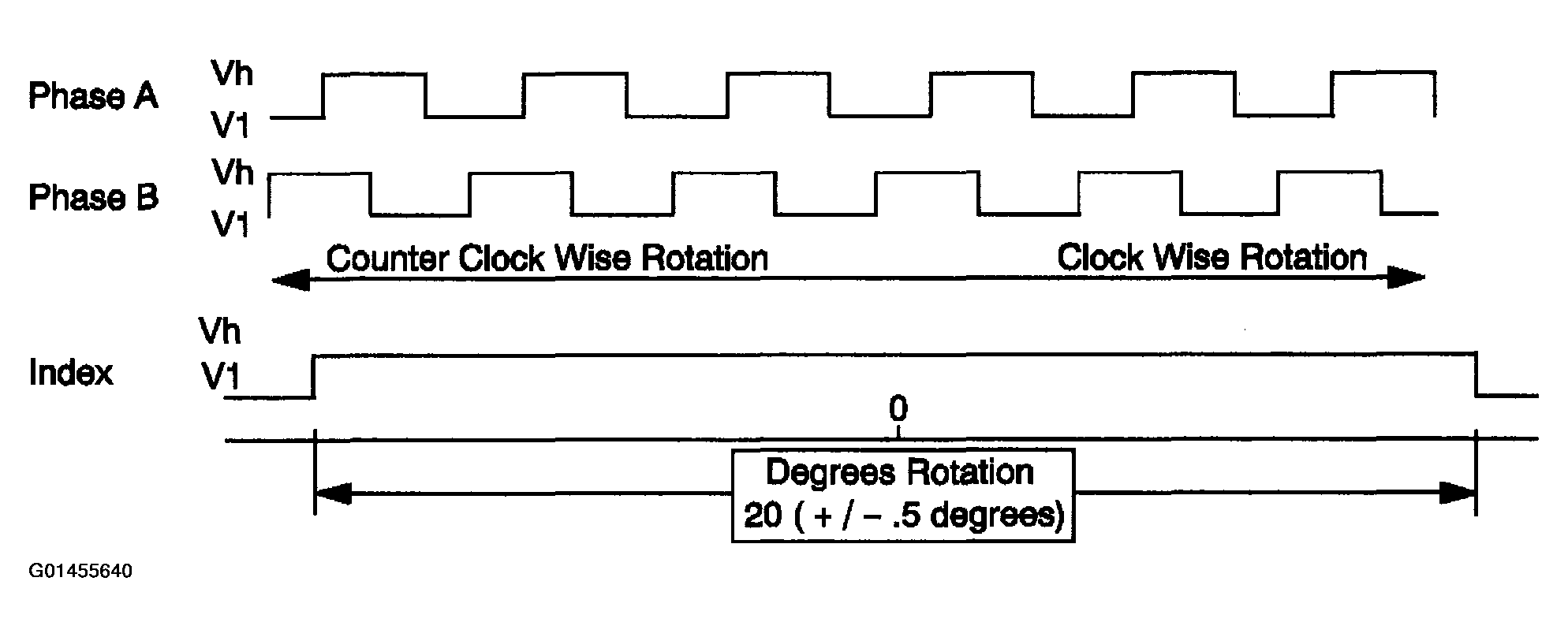

Fig 1: Identifying Steering Wheel Position Sensor Digital Signal

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Steering Wheel Position Sensor A And B Phase

Courtesy of GENERAL MOTORS CORP.
