Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Replace the housing if the stub shaft housing, seal or bearing are damaged.

  1. Remove the stub shaft housing bolts (4) from the stub shaft housing (3).
  2. Remove the stub shaft housing (3) from the steering gear.
  3. Remove the stub shaft housing O-rings (1) (2) from the steering gear.

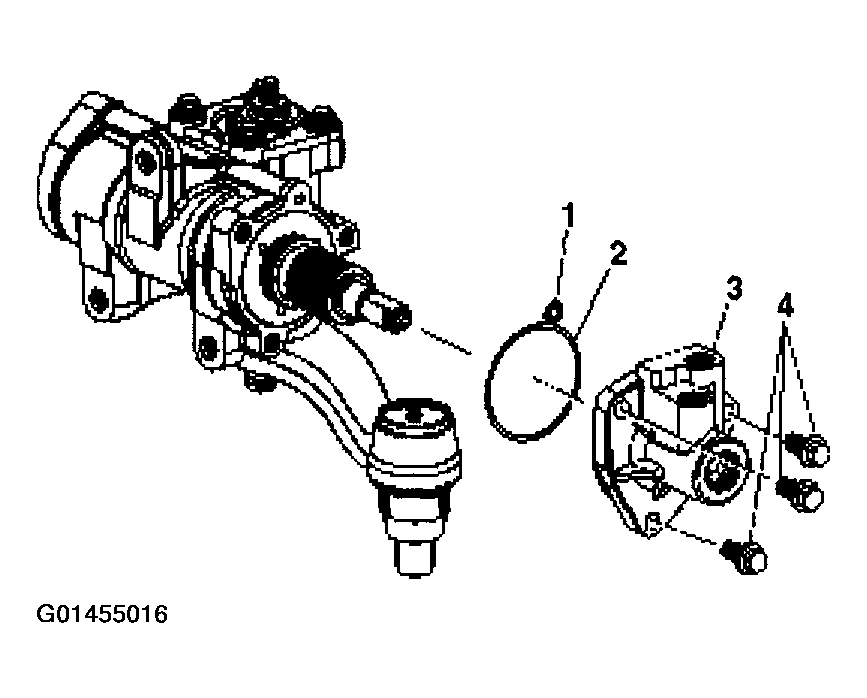

    Fig 1: Removing Stub Shaft Housing
    G01455016Courtesy of GENERAL MOTORS CORP.
