Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nut (3).
  2. Remove the lock washer (2).
  3. Clean the exposed end of the pitman shaft.
  4. Clean the steering gear housing (1).
  5. Use a wire brush to clean the pitman shaft splines.

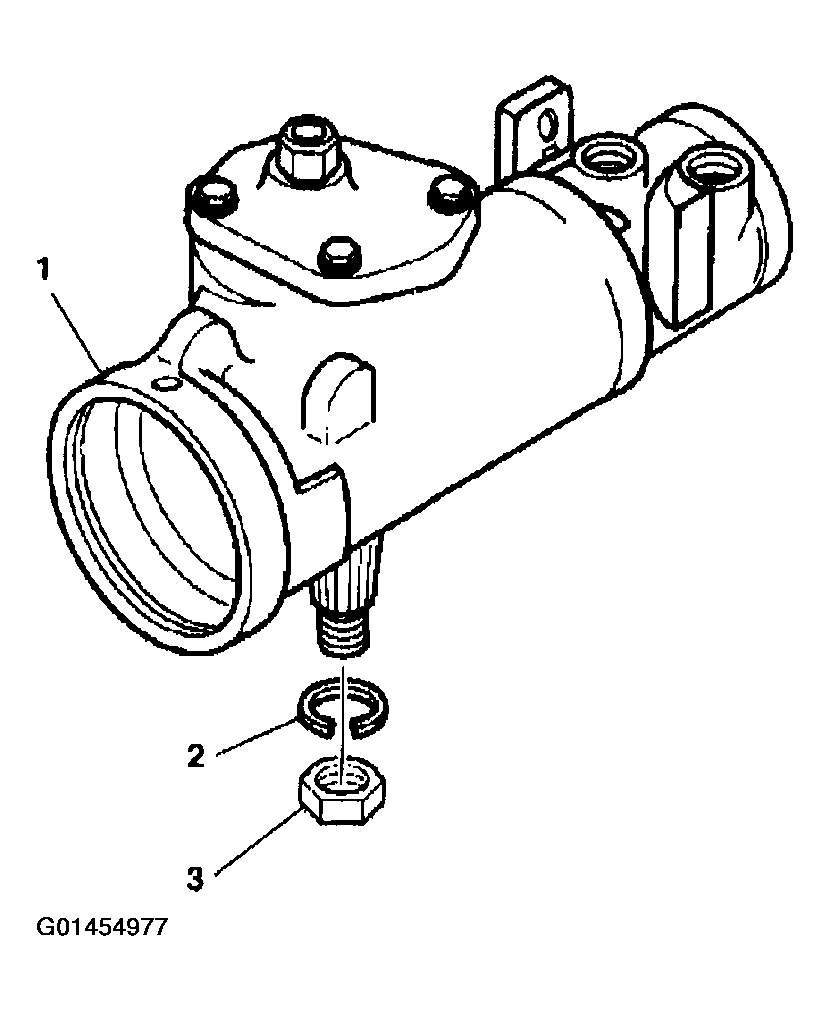

    Fig 1: Removing Nut
    G01454977Courtesy of GENERAL MOTORS CORP.
  6. Loosen the adjuster lock nut (1).
  7. Remove the bolts (2).
  8. Remove the nut.
  9. Rotate the stub shaft (6) using a 12-point socket to center the steering gear (7).

    Important:  When removing the pitman shaft assembly, the pitman arm and its components may fall from the steering gear housing. Support the pitman arm and its components while removing the pitman shaft assembly.

  10. Remove the following items as an assembly:
    • The side cover (8)
    • The gasket (3)
    • The pitman shaft (4)
  11. Remove the pitman shaft (4) from the side cover (8).

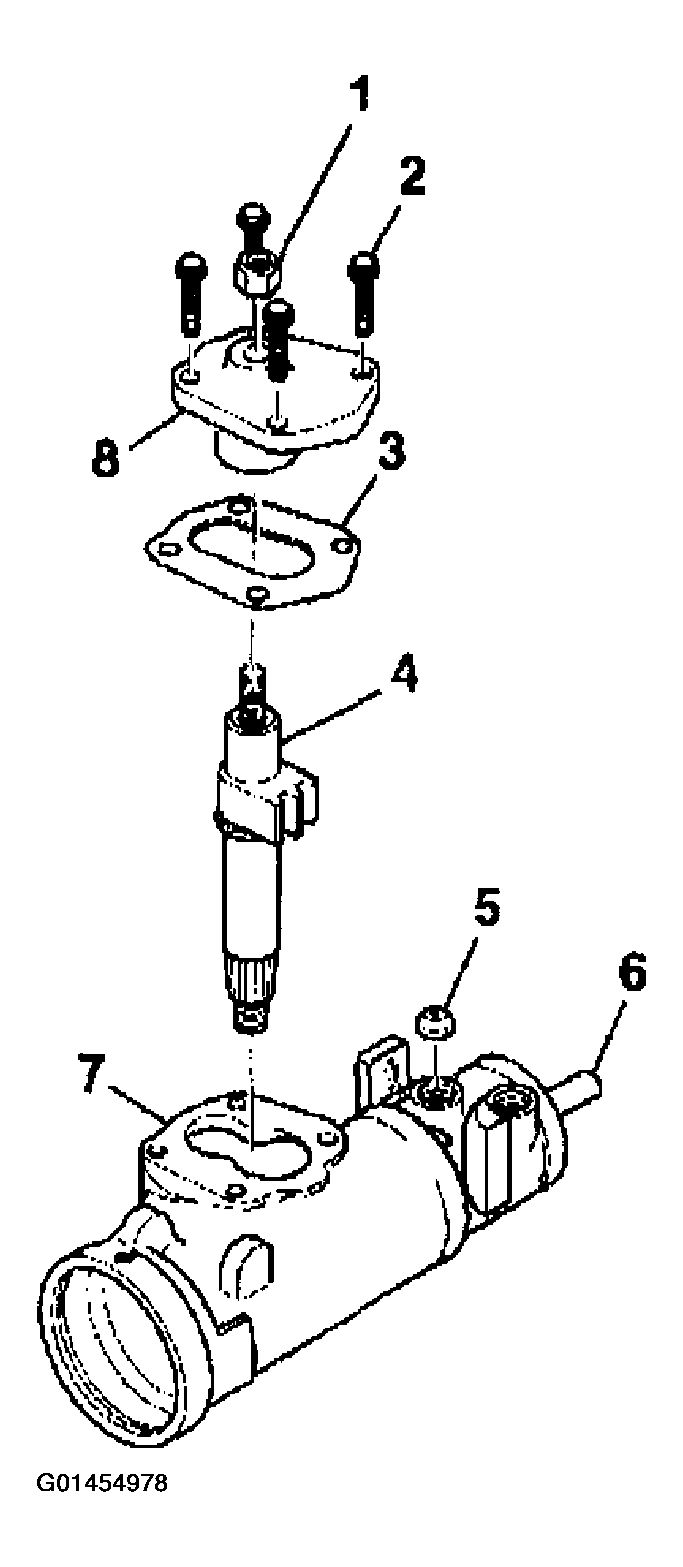

    Fig 2: Removing Pitman Shaft
    G01454978Courtesy of GENERAL MOTORS CORP.
