Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor air outlet duct extension (1) from the floor duct (2).

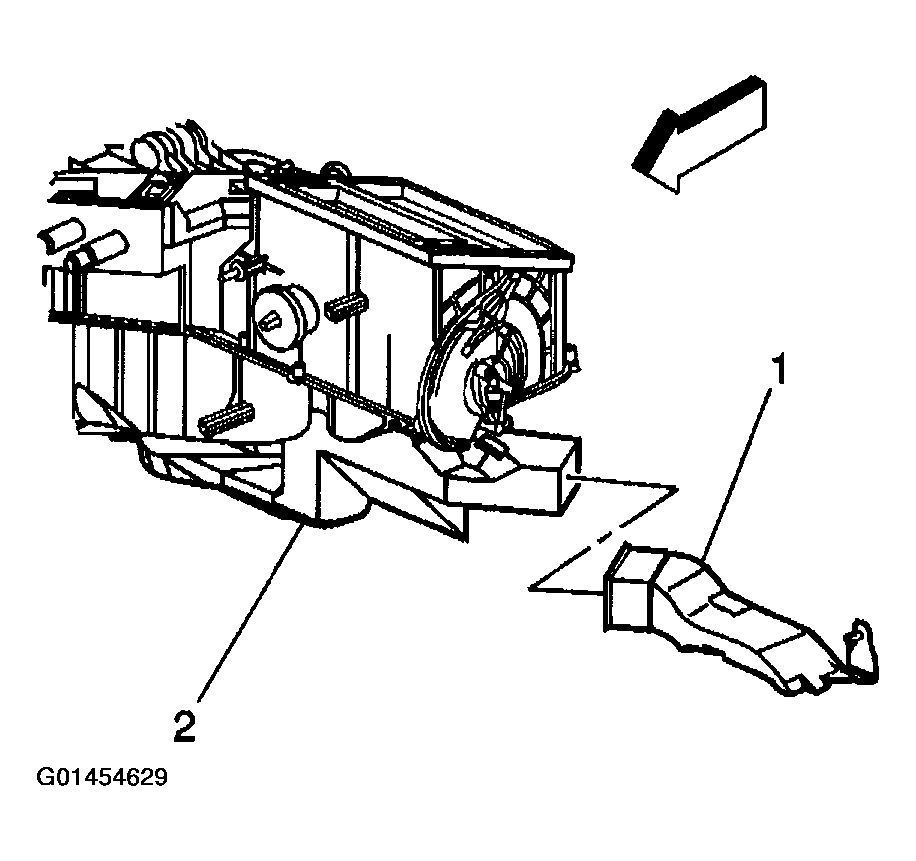

    Fig 1: Removing Floor Air Outlet Duct Extension From Floor Duct
    G01454629Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connection at the mode actuator (10).

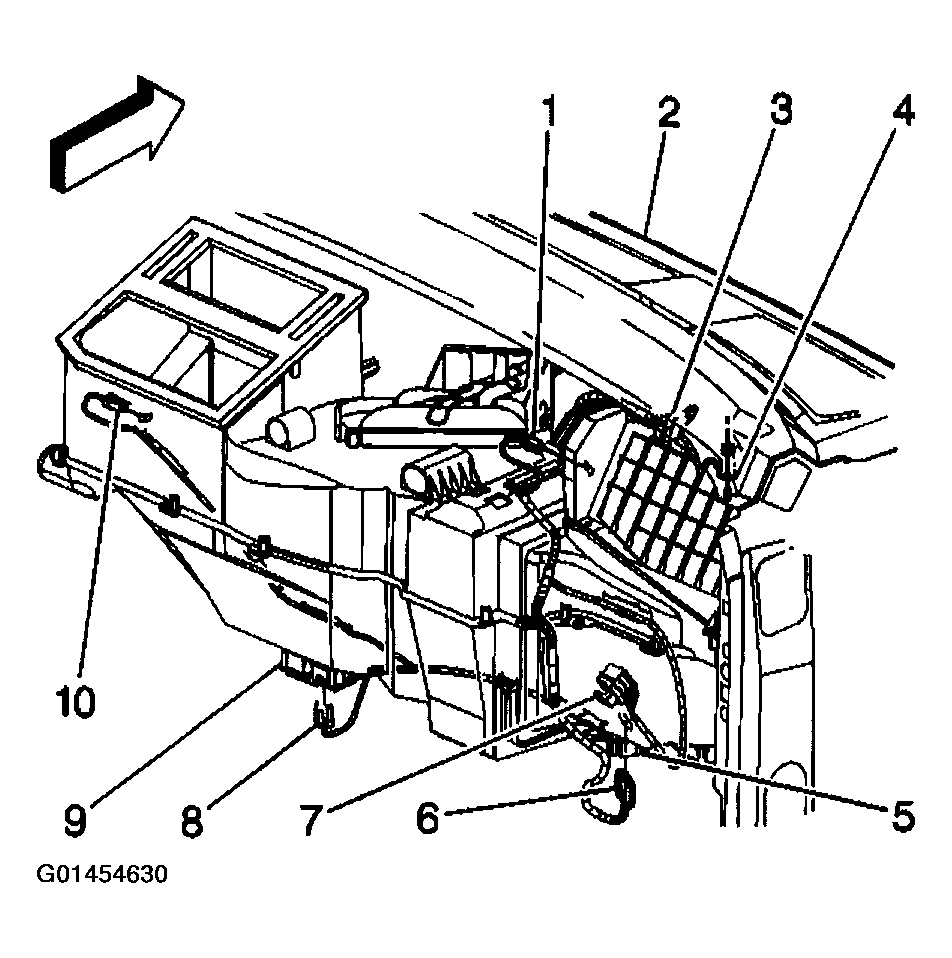

    Fig 2: Disconnecting Electrical Connection At Mode Actuator
    G01454630Courtesy of GENERAL MOTORS CORP.
  3. Remove the mode actuator mounting screws from the HVAC module.
  4. Remove the mode actuator as an assembly with the actuator cam.

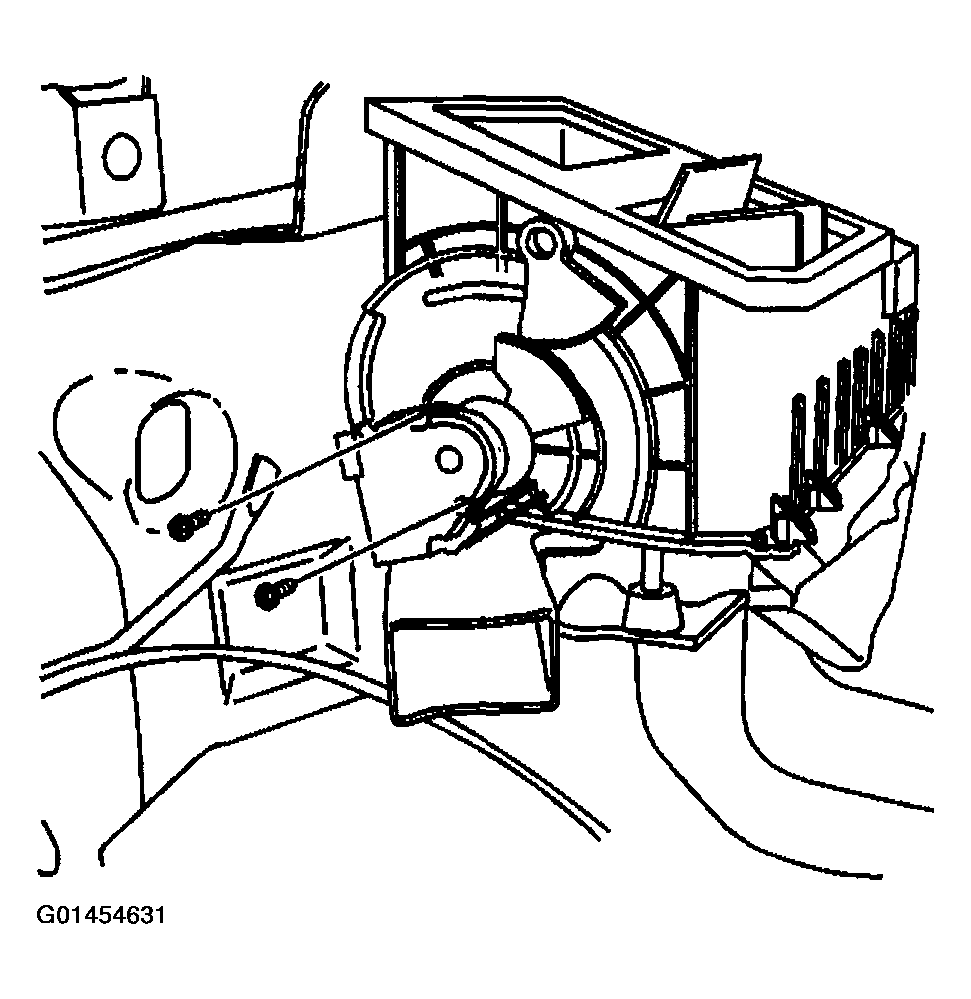

    Fig 3: Removing Mode Actuator Mounting Screws From HVAC Module
    G01454631Courtesy of GENERAL MOTORS CORP.
