Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console (1) from the headliner.
  2. Remove the auxiliary blower motor switch (2) by releasing the tabs at the rear of the overhead console.
  3. Disconnect the electrical connector (3).

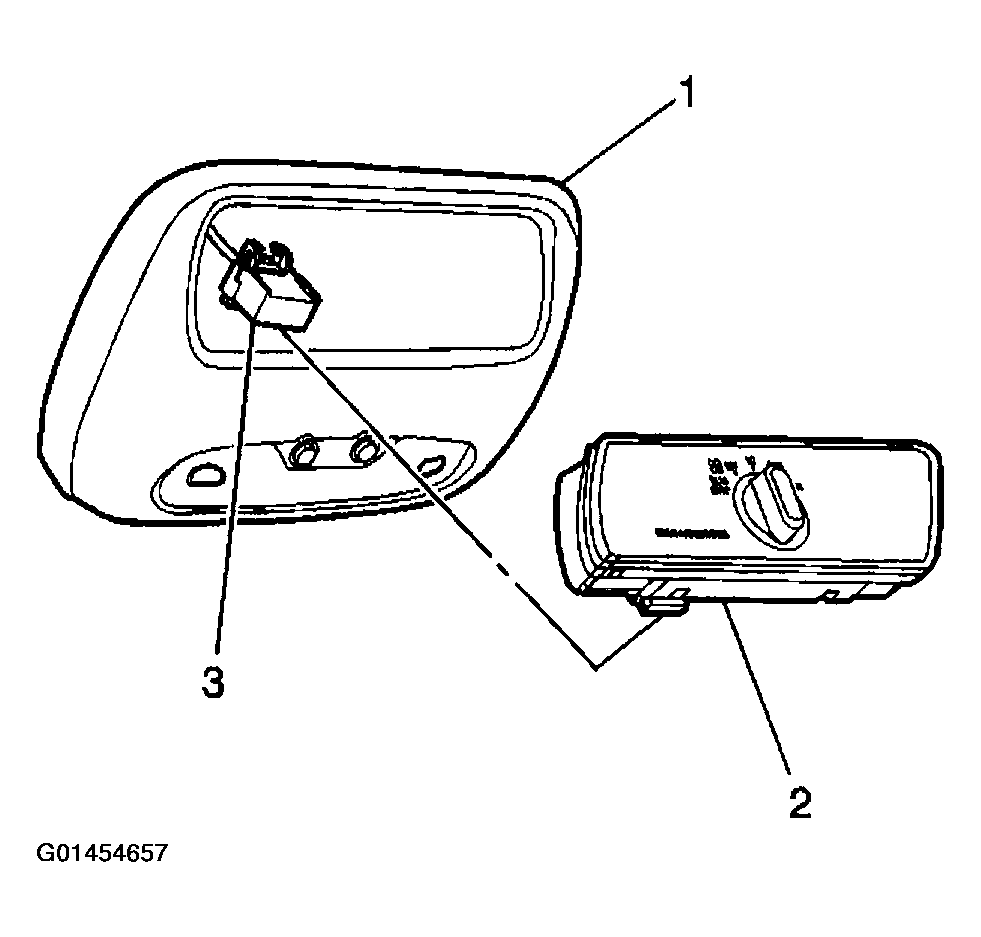

    Fig 1: Removing Blower Motor Switch - Auxiliary
    G01454657Courtesy of GENERAL MOTORS CORP.
