Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

5. This step tests the output of the blower motor switch in each speed position and through each blower motor control circuit.
6. Test the circuit that did not illuminate the test lamp in Step 5.

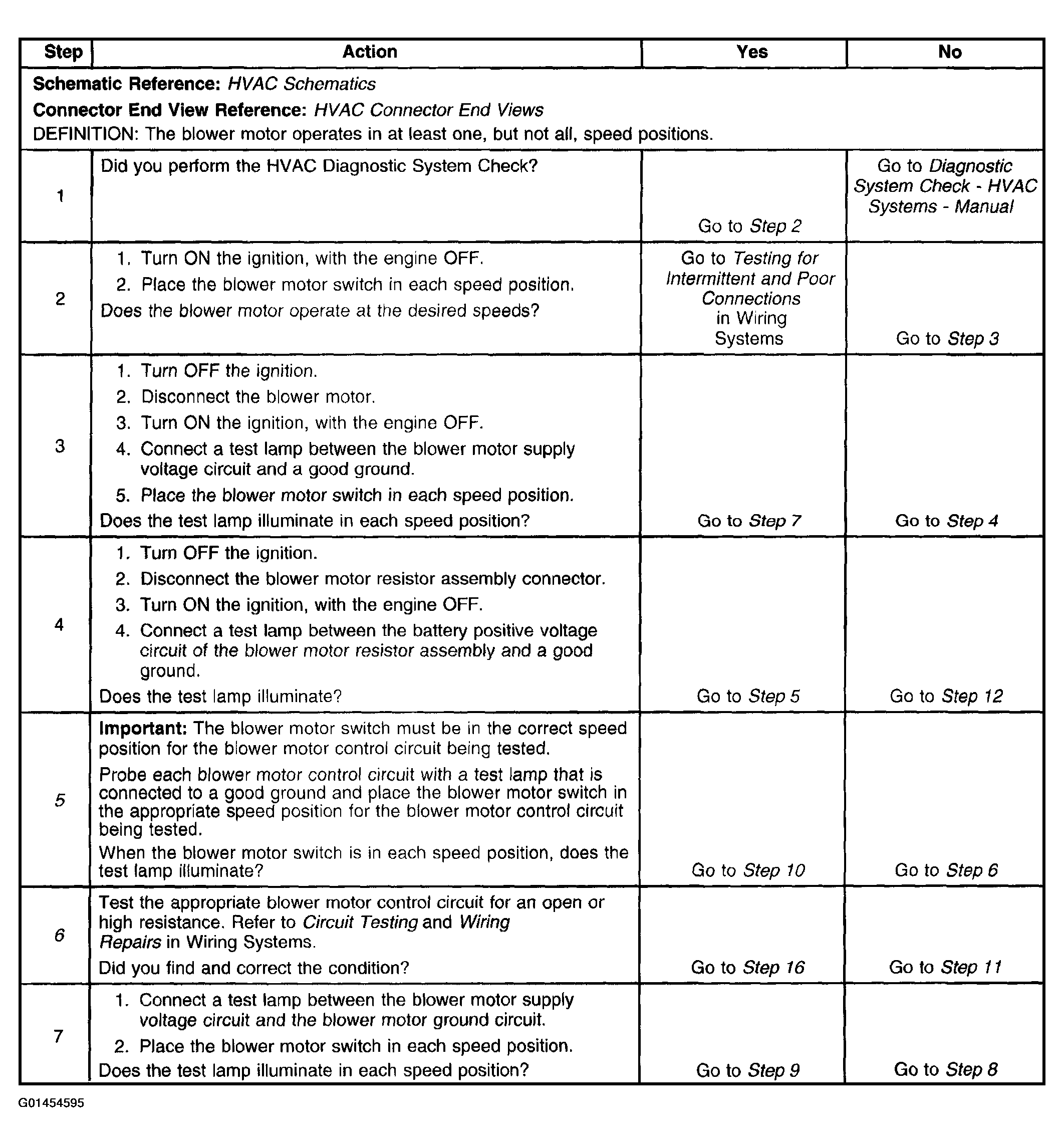

Fig 1: Diagnosis Procedure Blower Motor Malfunction (Step 1 To 7)
Courtesy of GENERAL MOTORS CORP.

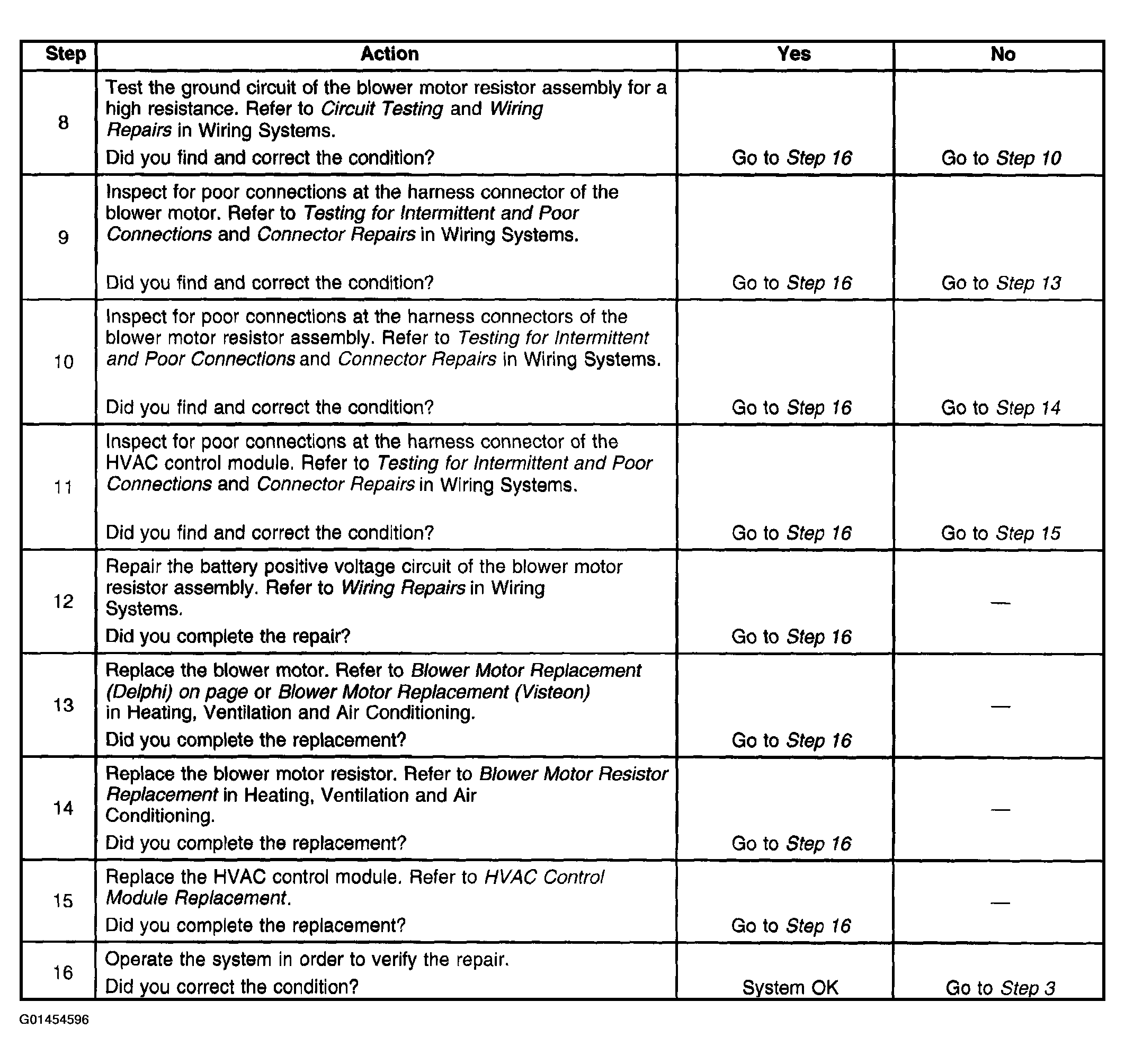

Fig 2: Diagnosis Procedure Blower Motor Malfunction (Step 8 To 16)
Courtesy of GENERAL MOTORS CORP.
