Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

6. This step tests the output from the blower motor switch. Loss of blower motor switch output would indicate a malfunctioning switch or a circuit malfunction in the supply voltage to the switch.
7. There are two ignition 3 voltage circuits at the HVAC control module. Test the circuit that provides the supply voltage to the blower motor switch.

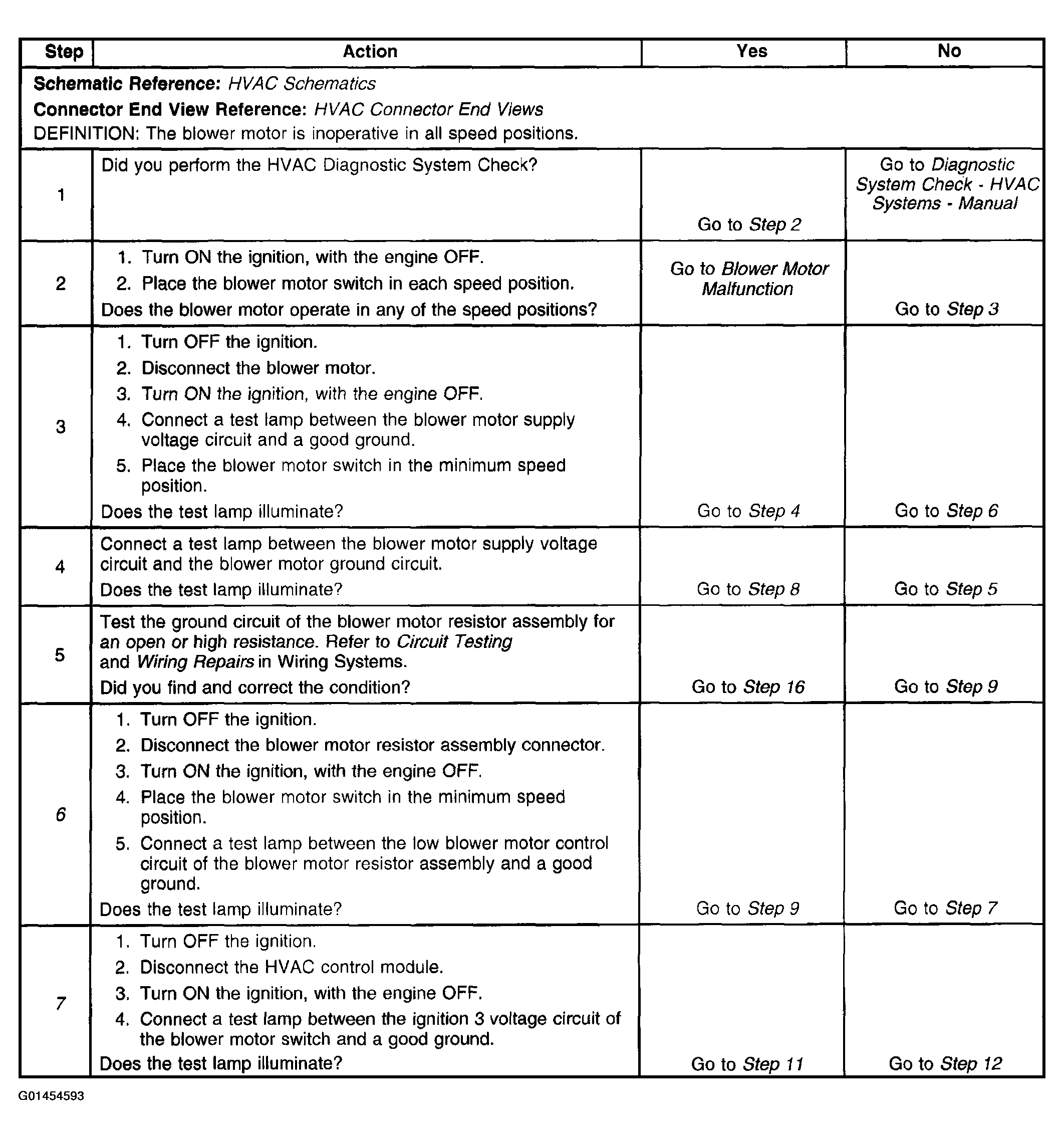

Fig 1: Diagnosis Procedure Blower Motor Inoperative (Step 1 To 7)
Courtesy of GENERAL MOTORS CORP.

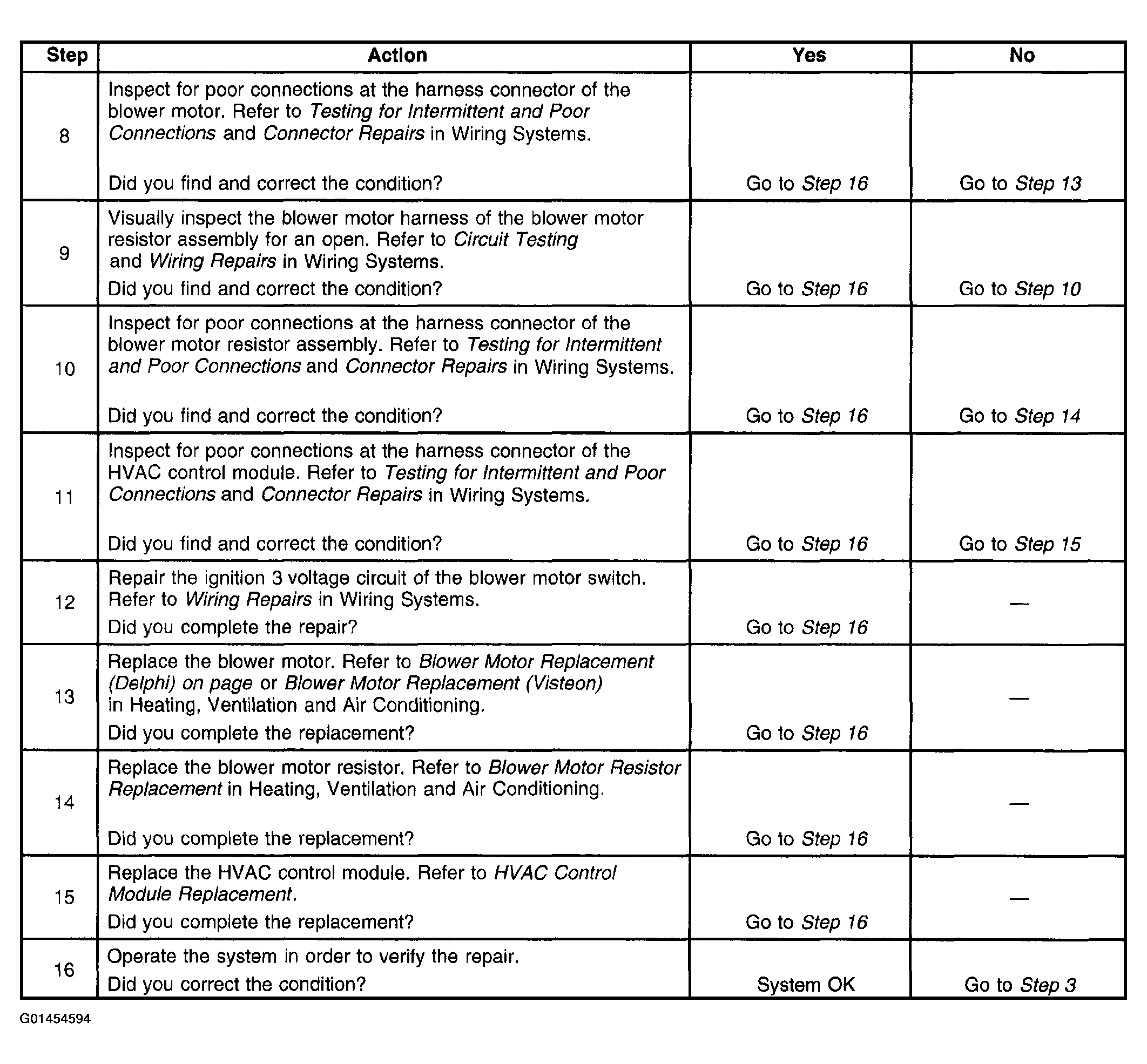

Fig 2: Diagnosis Procedure Blower Motor Inoperative (Step 8 To 16)
Courtesy of GENERAL MOTORS CORP.
