Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step checks for continuous operation of the blower motor.
  2. 3. The test lamp should not illuminate while connected to any of the blower motor control circuits when the blower motor switch is in the OFF position. Illumination of the test lamp during this step indicates a malfunctioning blower motor switch or a short to voltage on a blower motor control circuit.
  3. 4. Test the blower motor control circuit that illuminated the test lamp in Step 3.

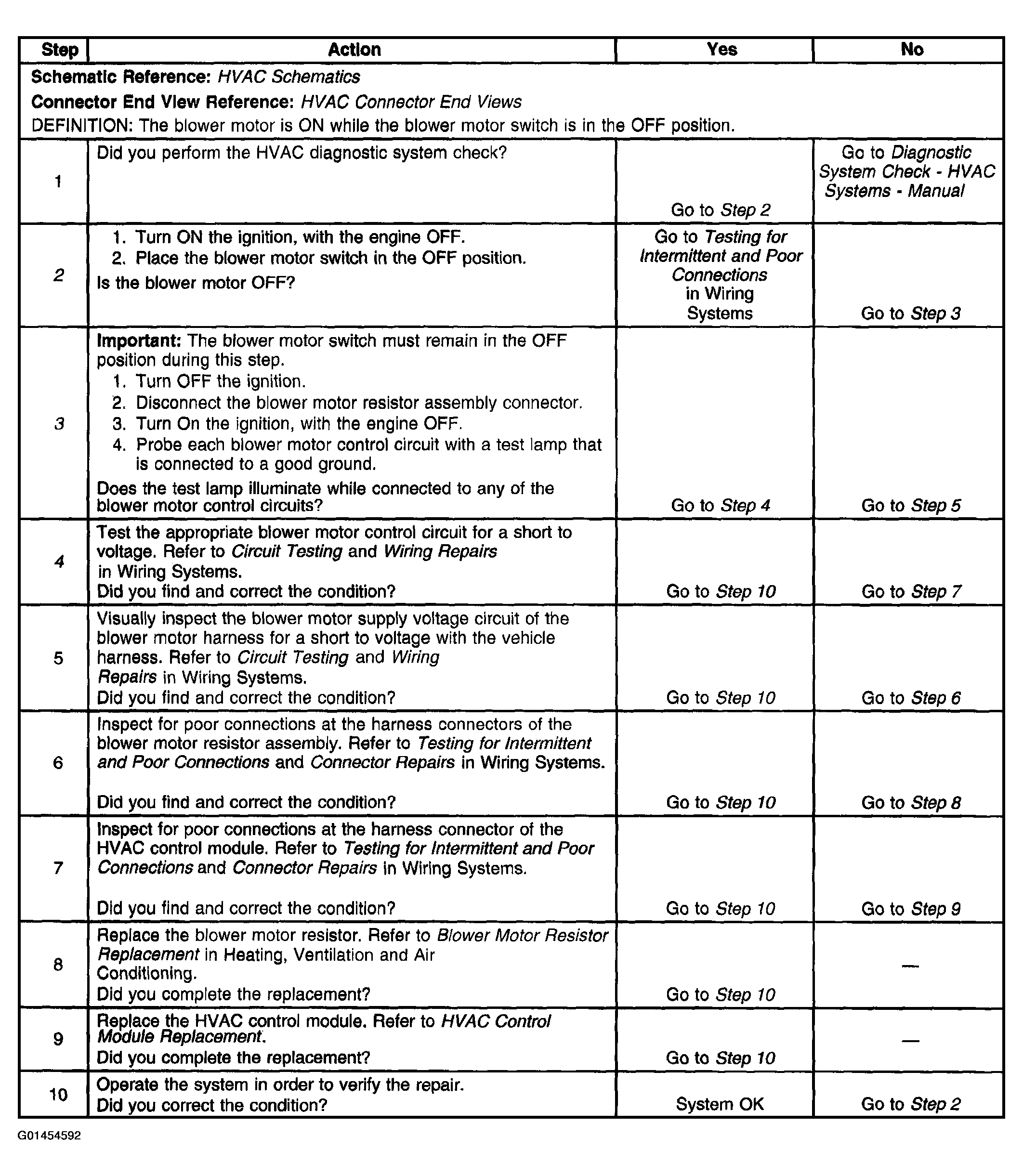

    Fig 1: Diagnosis Procedure Blower Motor Always On
    G01454592Courtesy of GENERAL MOTORS CORP.
