Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

2. This step tests for auxiliary blower motor operation in the OFF setting.
3. The rear auxiliary HVAC control assembly should not operate with the front auxiliary blower motor switch in the OFF position.

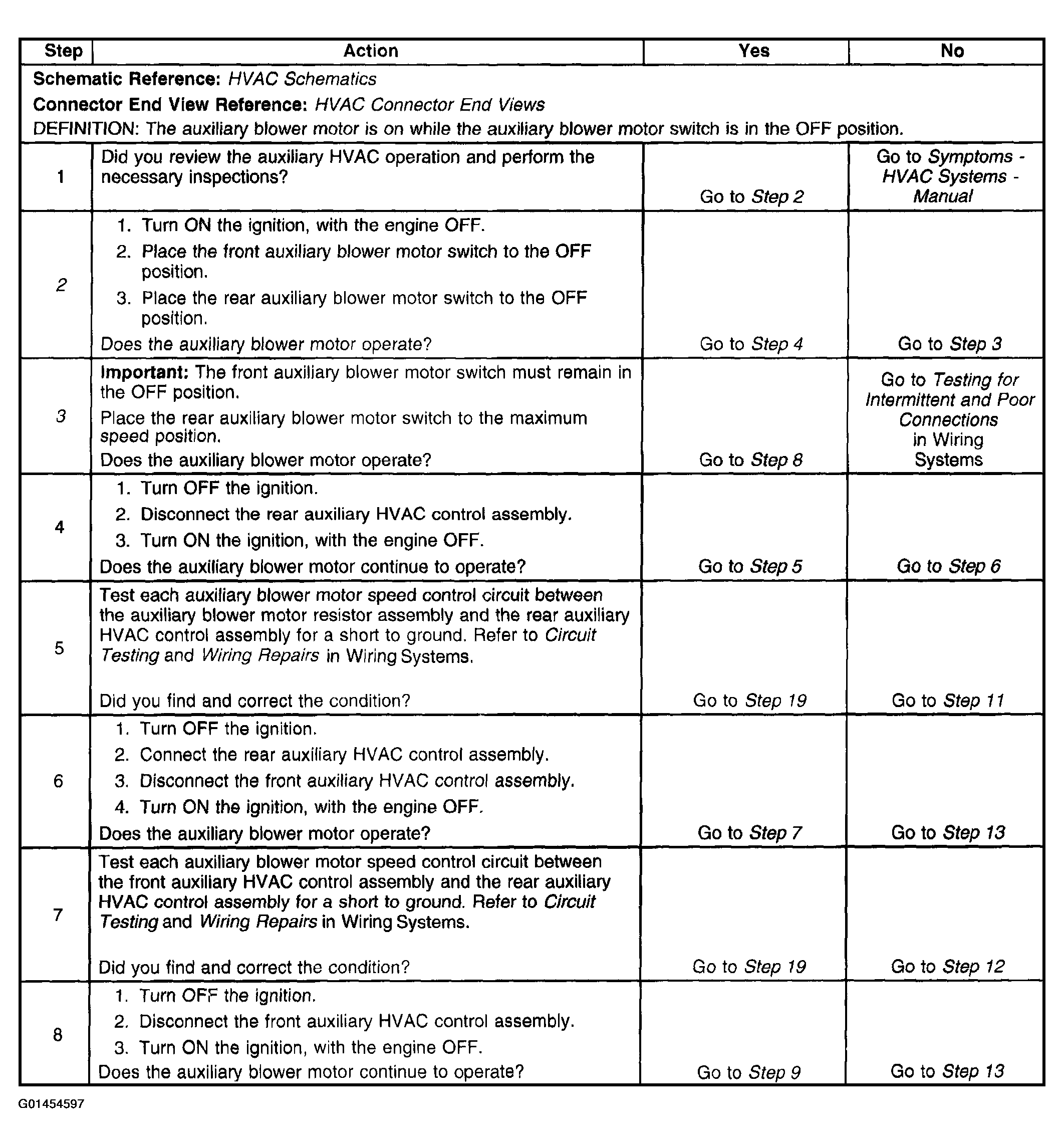

Fig 1: Diagnosis Procedure Blower Motor Always On - Auxiliary (Step 1 To 8)
Courtesy of GENERAL MOTORS CORP.

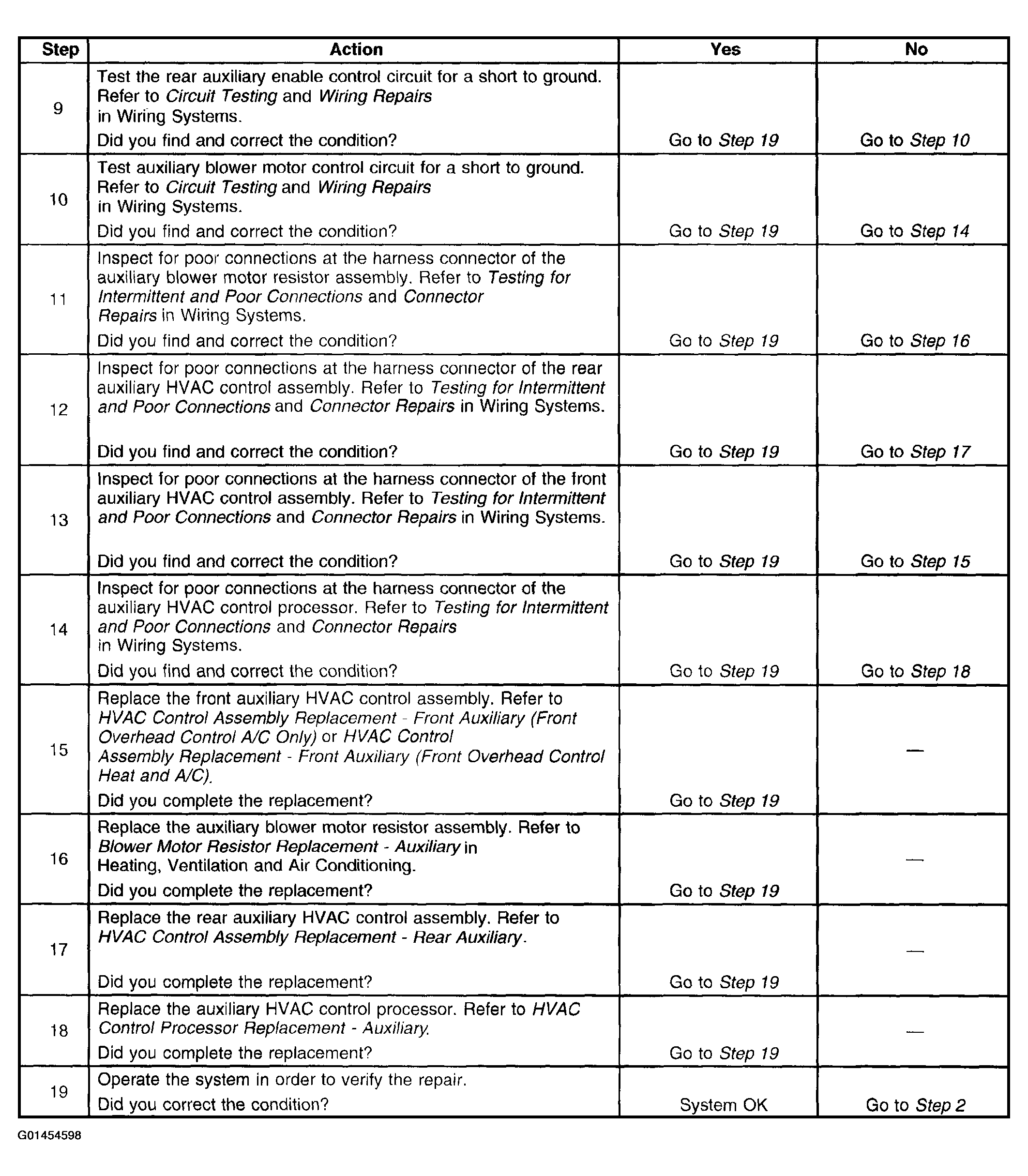

Fig 2: Diagnosis Procedure Blower Motor Always On - Auxiliary (Step 9 To 19)
Courtesy of GENERAL MOTORS CORP.
