Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. Determines if the auxiliary HVAC door actuator is stalled.
3. Applies control circuit voltages to the input of the auxiliary HVAC door actuator.

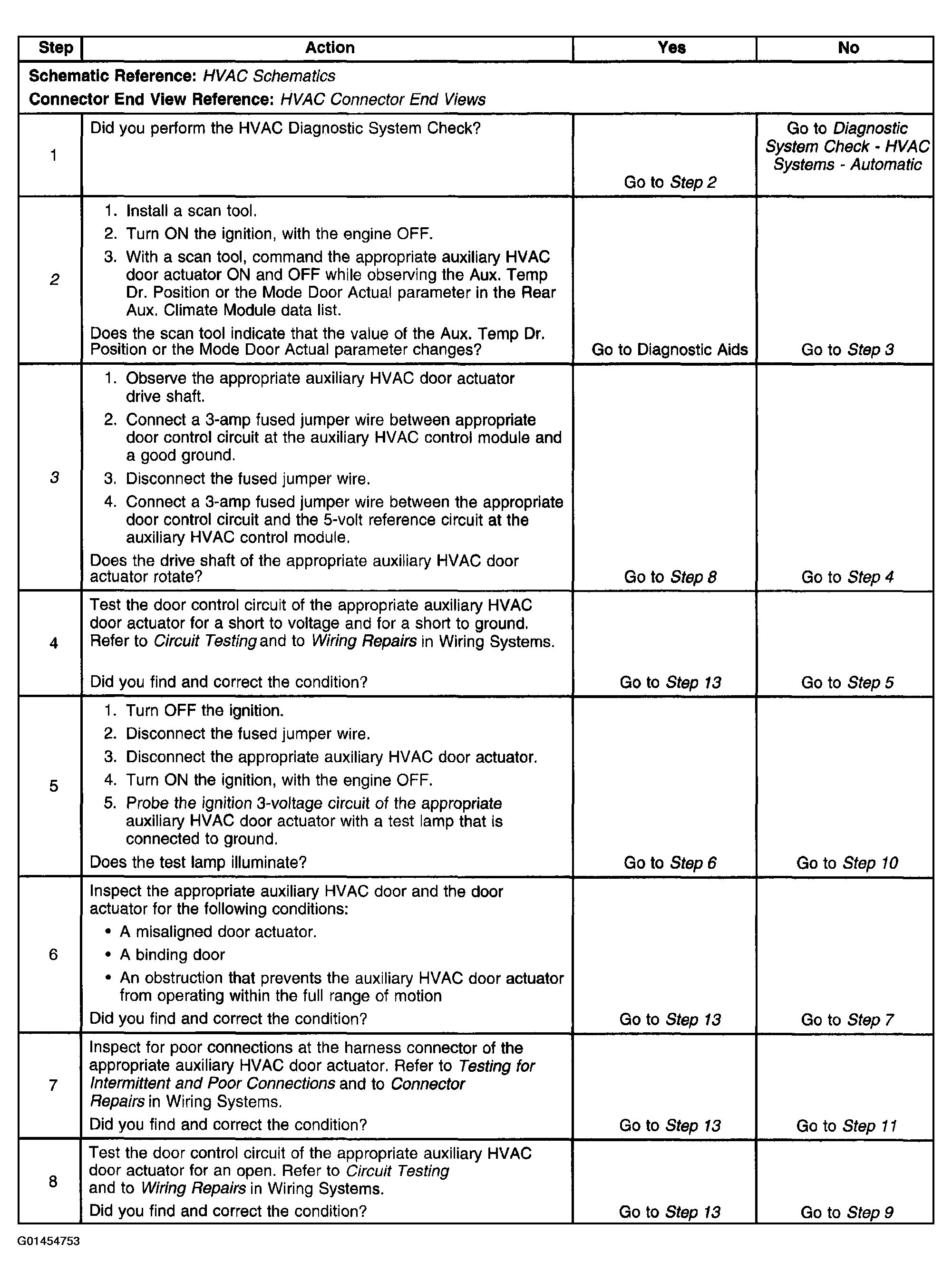

Fig 1: DTC B0429 Or B3531 Diagnosis Procedure (Step 1 To 8)
Courtesy of GENERAL MOTORS CORP.

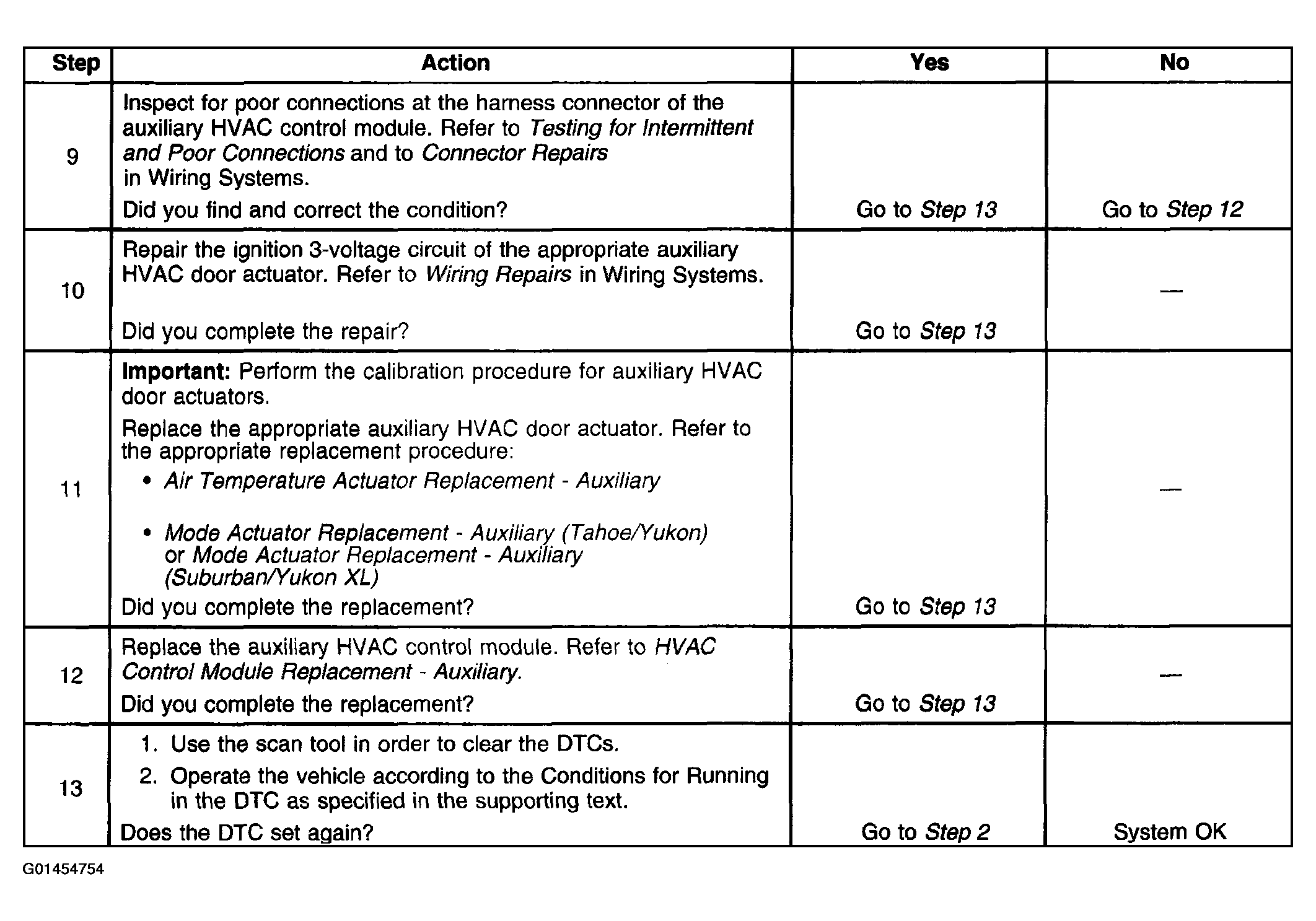

Fig 2: DTC B0429 Or B3531 Diagnosis Procedure (Step 9 To 13)
Courtesy of GENERAL MOTORS CORP.
