Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .
  2. Remove the wiring harness from the recirculation housing (1).
  3. Remove the screws from the upper recirculation housing (1).
  4. Remove the upper recirculation housing (1) from the HVAC module assembly (2).

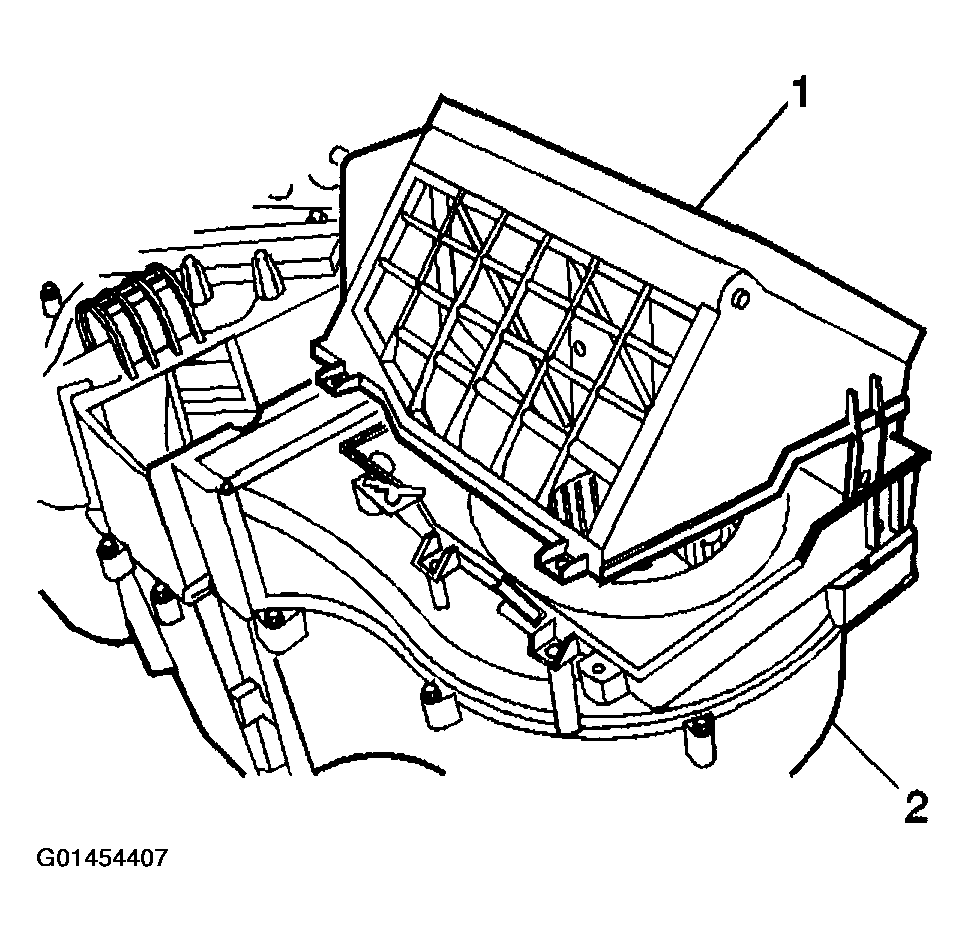

    Fig 1: Removing Upper Recirculation Housing From HVAC Module Assembly
    G01454407Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the recirculation actuator (1).
  6. Remove the screws from the recirculation actuator (1).
  7. Remove the recirculation actuator (1) from the recirculation housing (2).

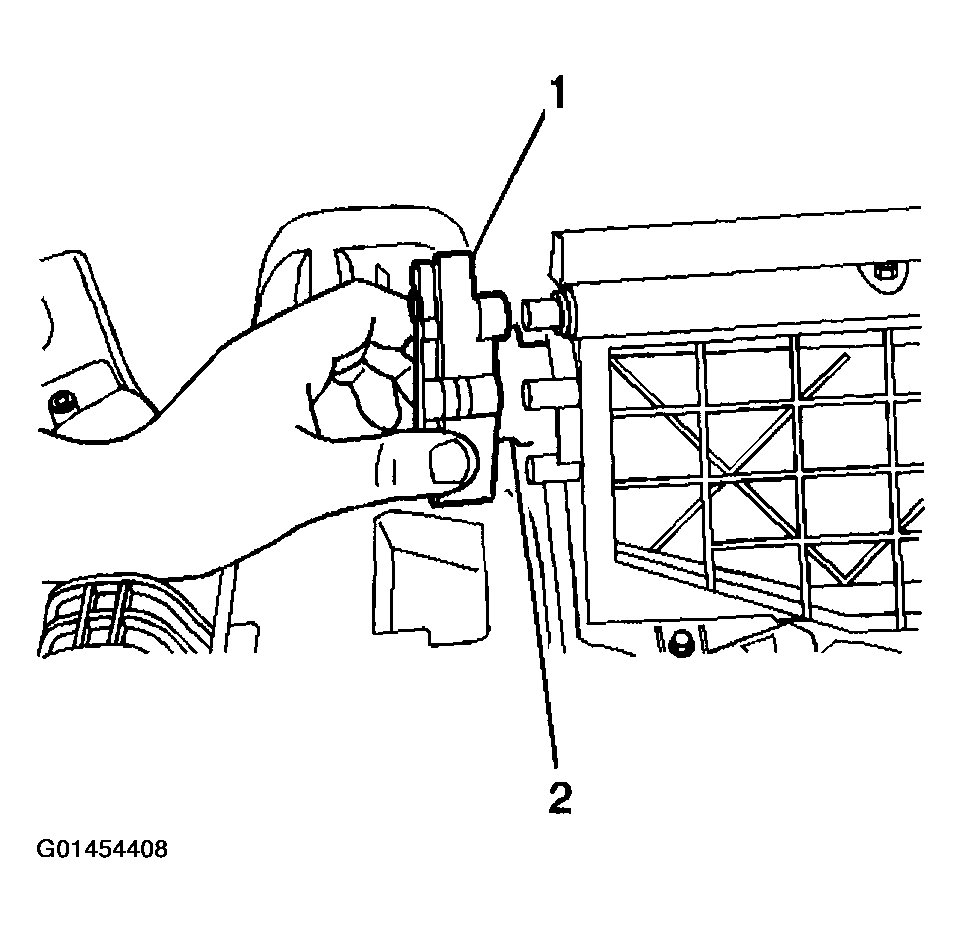

    Fig 2: Removing Recirculation Actuator From Recirculation Housing
    G01454408Courtesy of GENERAL MOTORS CORP.
  8. Remove the recirculation door (1) from the recirculation housing (2).

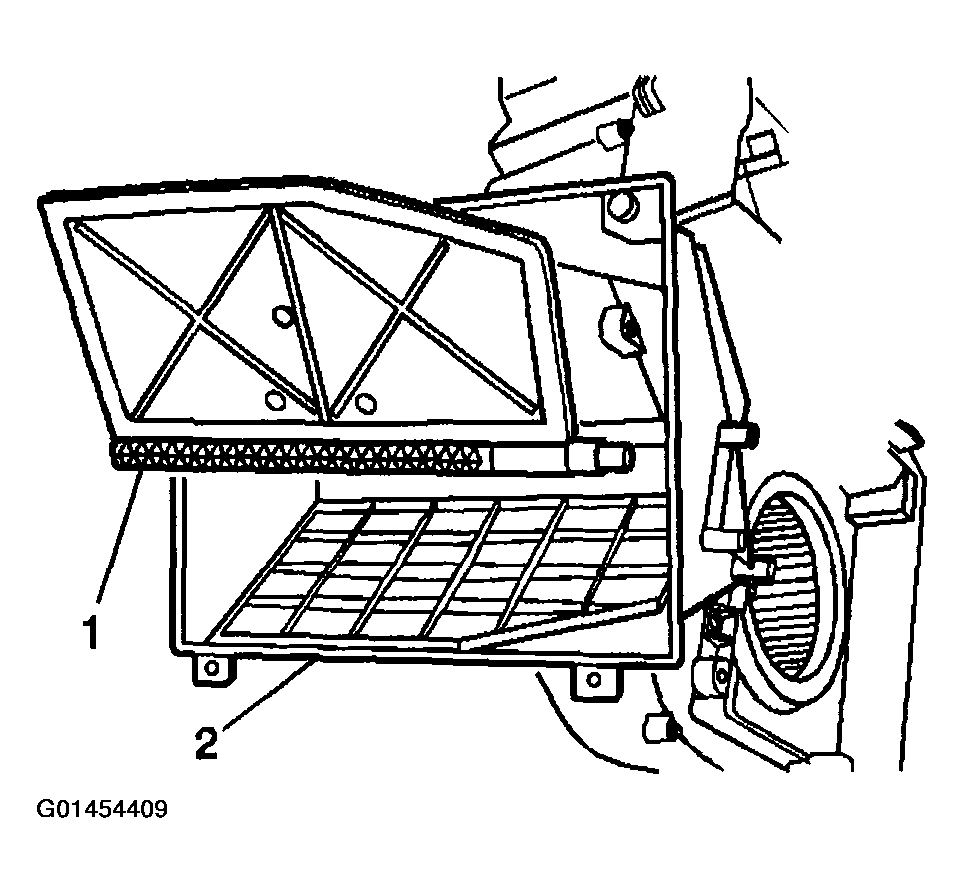

    Fig 3: Removing Recirculation Door From Recirculation Housing
    G01454409Courtesy of GENERAL MOTORS CORP.
