Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet heater hose.

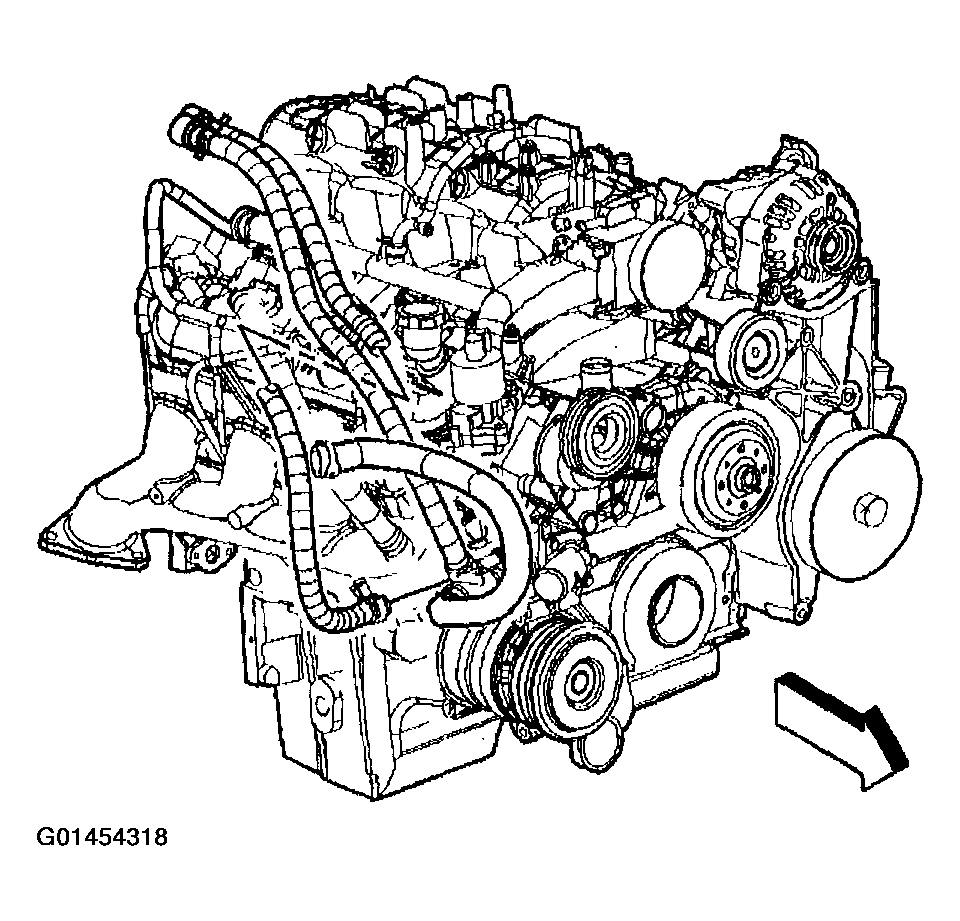

    Fig 1: Installing Outlet Heater Hose
    G01454318Courtesy of GENERAL MOTORS CORP.
  2. Install the outlet heater hose to the engine.
  3. Connect the outlet heater hose to the heater core.

    Firmly push the quick connect onto the heater core pipe until you hear an audible click.

  4. Install the heater and surge tank hose to the mounting clip.
  5. Install the air intake tube.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.

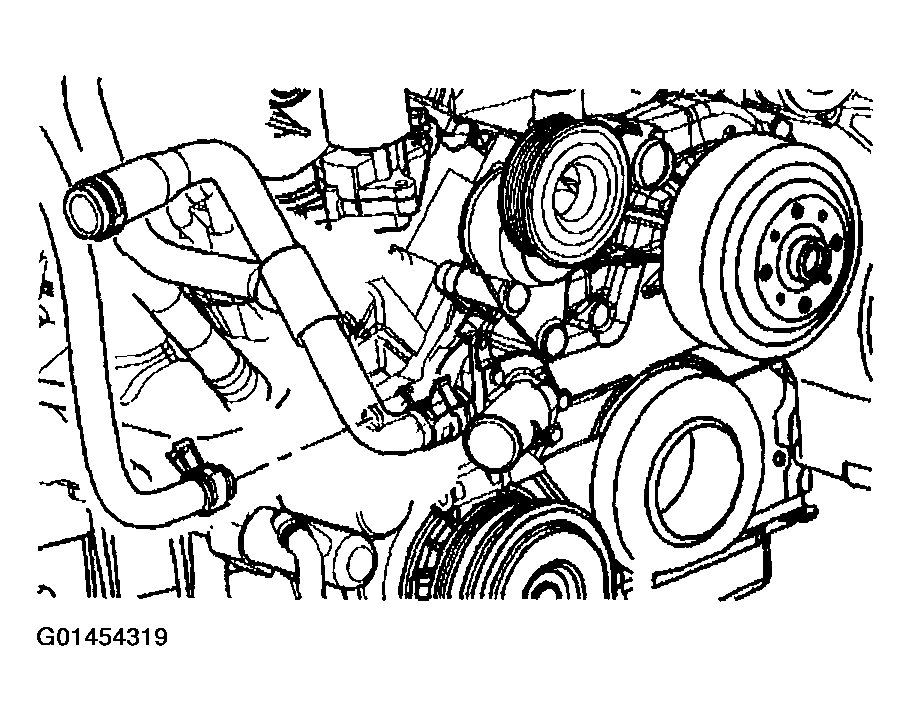

    Fig 2: Installing Outlet Heater Hose To Engine
    G01454319Courtesy of GENERAL MOTORS CORP.
