Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the deflector to the I/P.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the deflector mounting screws.

    Tighten

    Tighten the screw to 1.6 N.m (14 lb in).

  3. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages, and Console.
  4. Install the I/P bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.

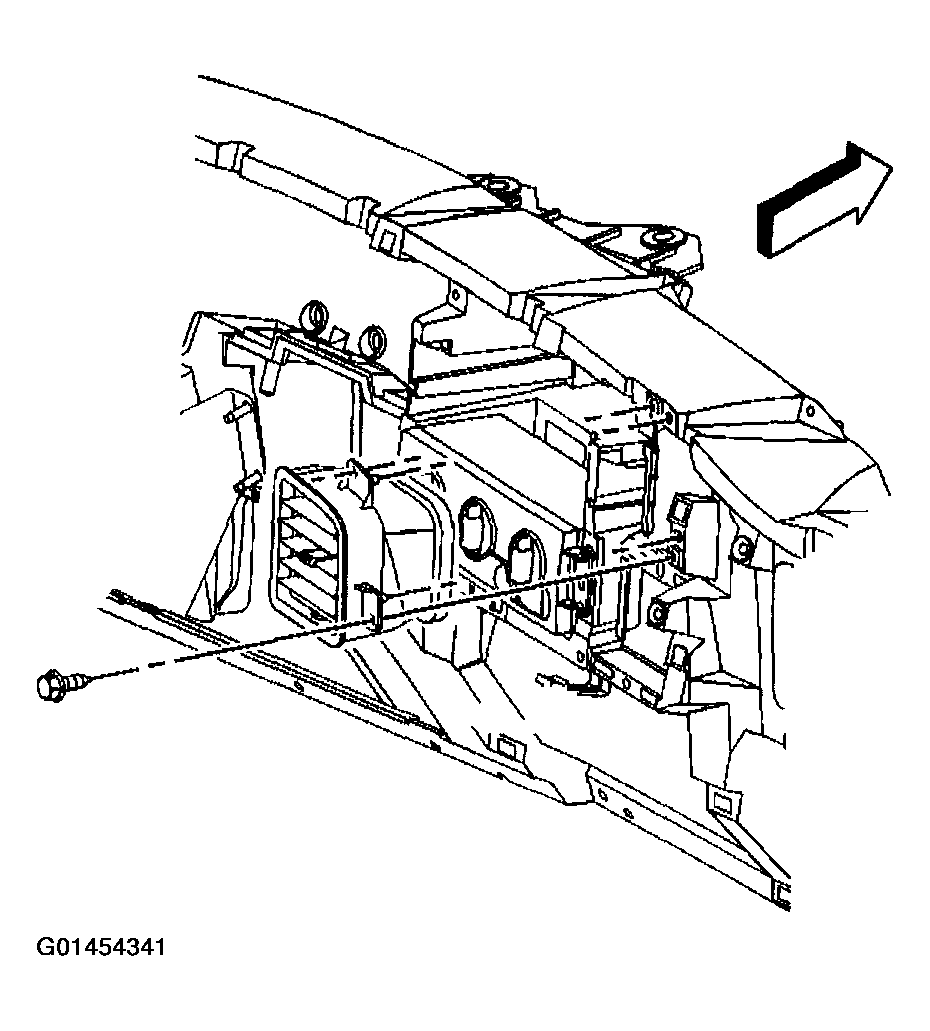

    Fig 1: Installing Deflector - Instrument Panel Air - Center
    G01454341Courtesy of GENERAL MOTORS CORP.
