Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .

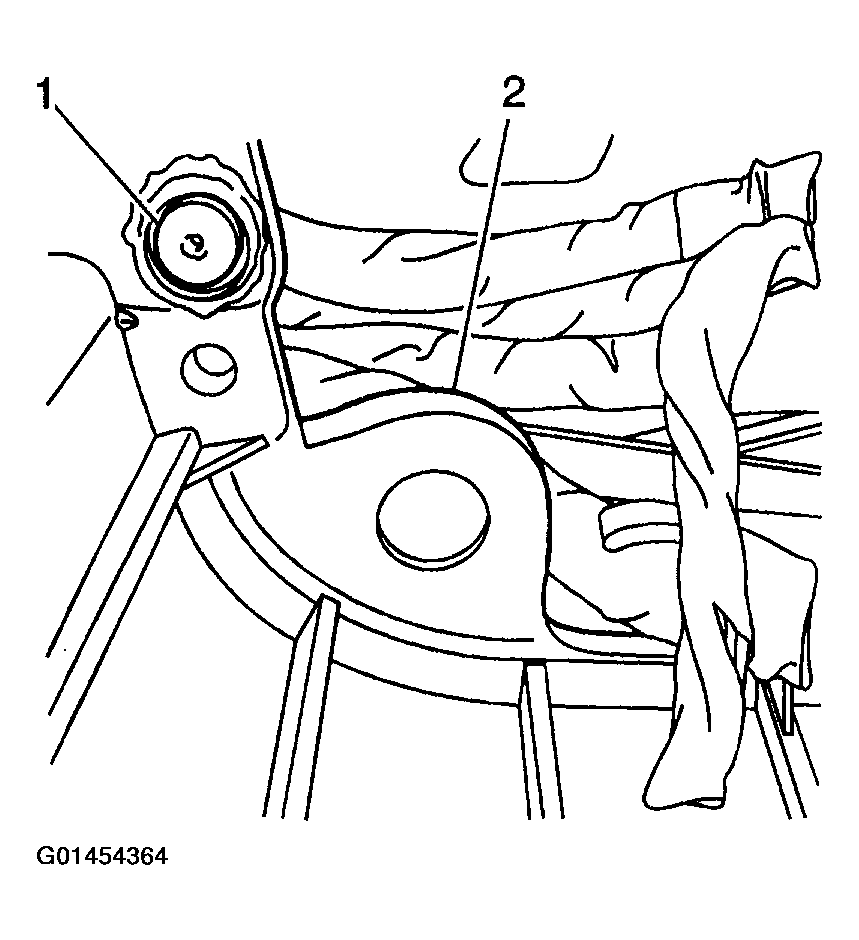

  2. If equipped remove the heat stakes (1) from the HVAC module (2) with a screw driver and a hammer.
    Fig 1: Removing Heat Stakes From HVAC Module
    G01454364Courtesy of GENERAL MOTORS CORP.
  3. If equipped remove the HVAC module assembly screws.
  4. Remove the upper HVAC module case (1) from the lower HVAC module case (2).
  5. Remove the right temperature door (4) from the upper HVAC module case (3).
    Fig 2: Removing HVAC Module Assembly Screws
    G01454365Courtesy of GENERAL MOTORS CORP.
