Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the A/C low pressure switch.
  2. Remove the A/C low pressure switch from the accumulator.
  3. Remove the O-ring and discard.

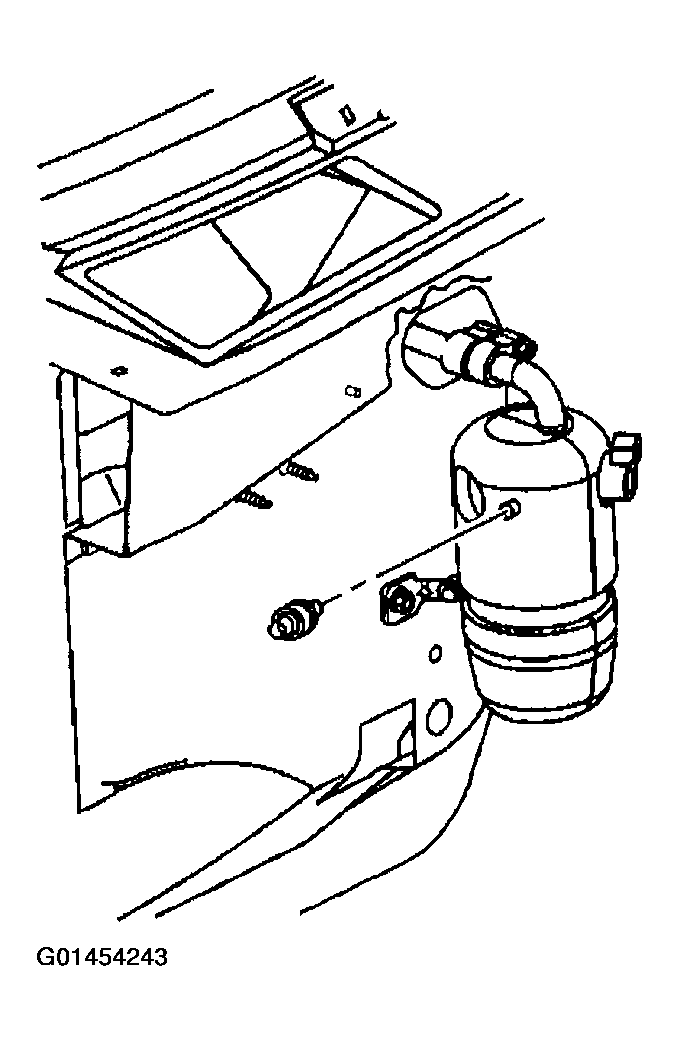

    Fig 1: Removing Air Conditioning Low Pressure Switch
    G01454243Courtesy of GENERAL MOTORS CORP.
